Home >> Chrysler >> 2000 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Heating and Air Conditioning >> Sensors and Switches - HVAC >> Air Conditioning Switch >> Service and Repair

Air Conditioning Switch: Service and Repair




REMOVAL

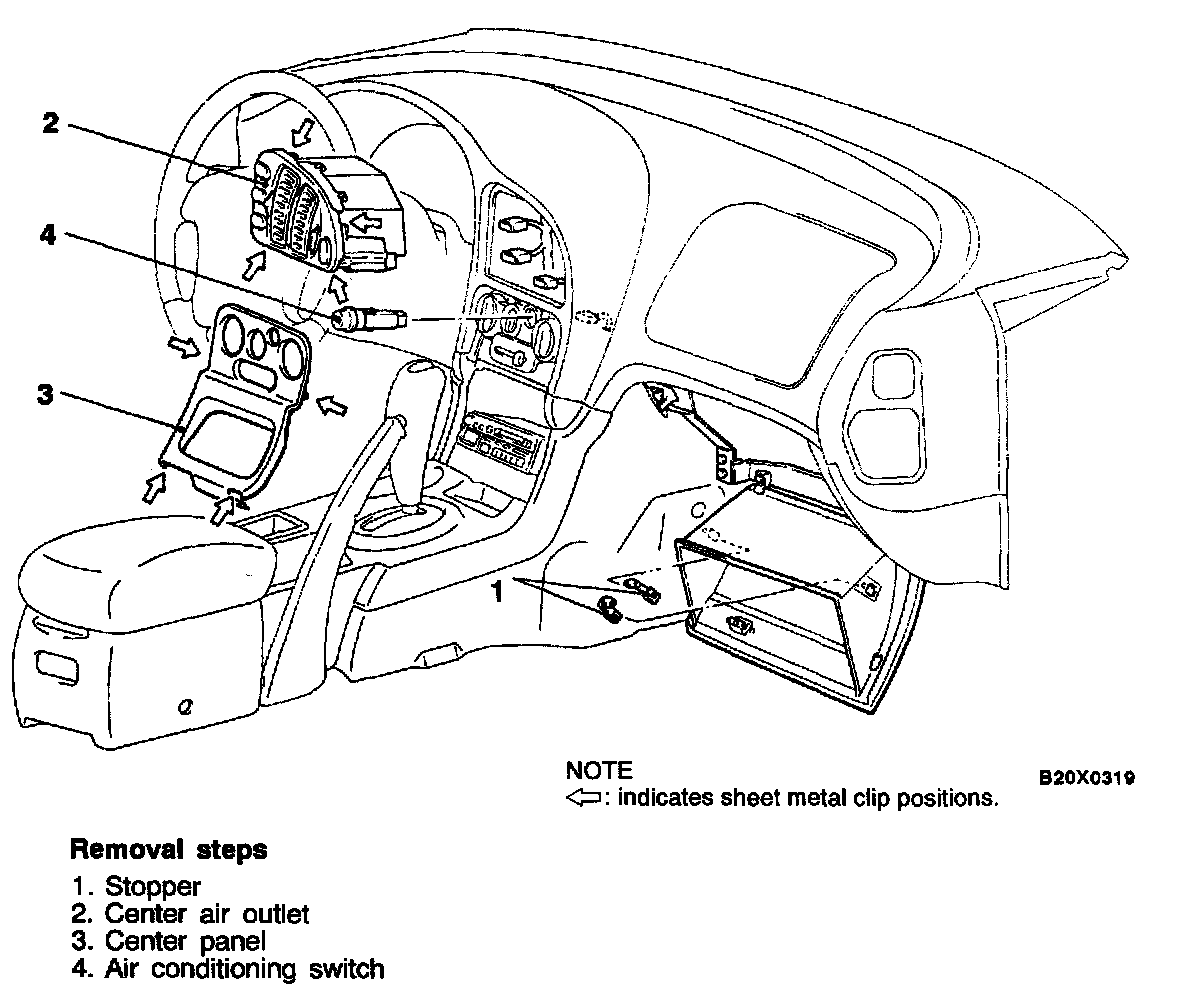

To remove follow the steps listed in the image.

INSTALLATION
To install reverse the steps listed in the image.
