Replacement

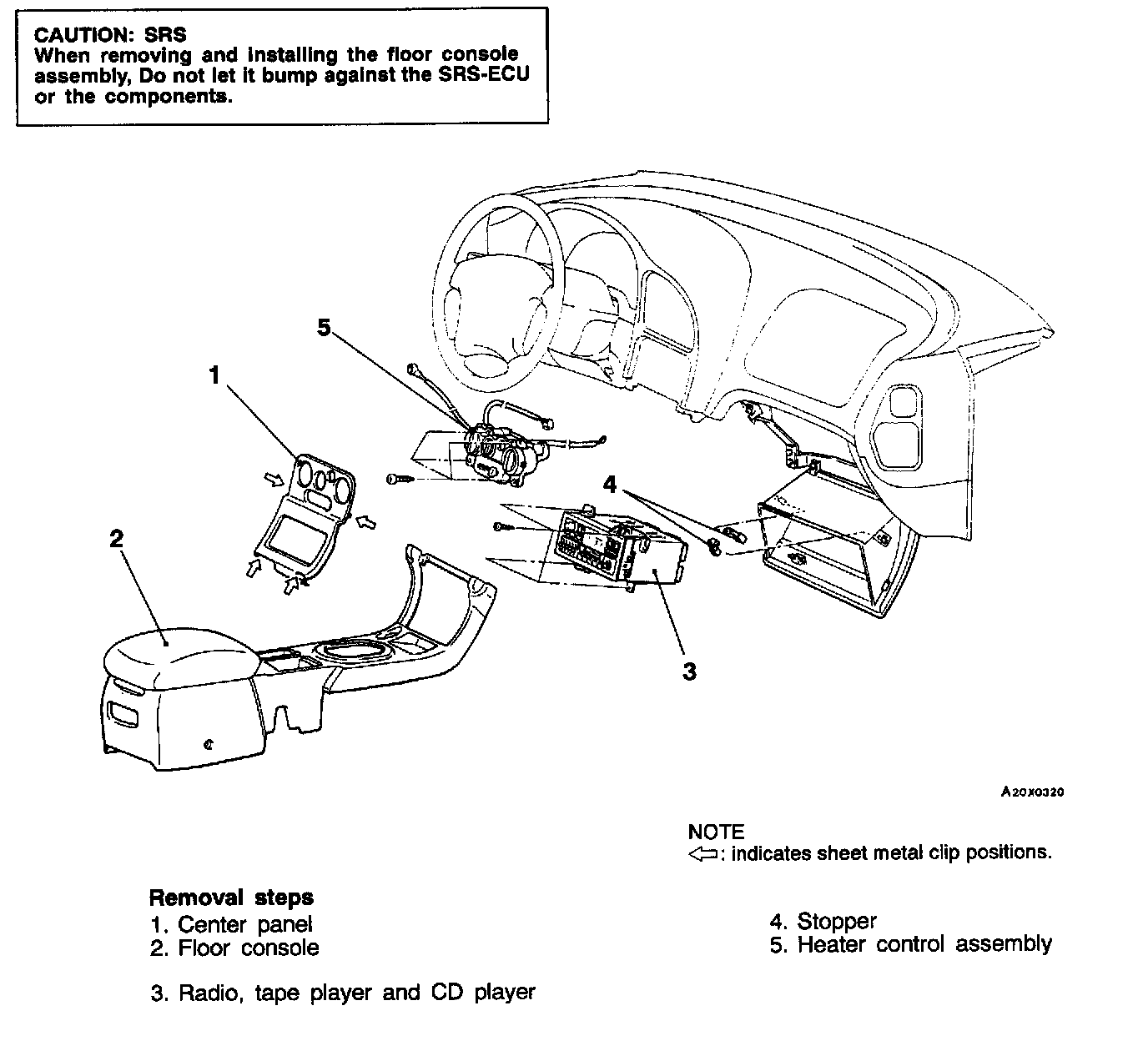

CAUTION: When removing and installing the floor console assembly, Do not let it bump against the SRS-ECU or the components.

REMOVAL SERVICE POINT




Heater Control Assembly Removal

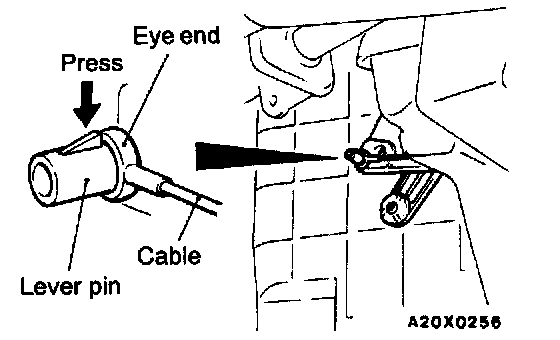

1. Press the lever pin to disconnect the air outlet change-over damper cable.

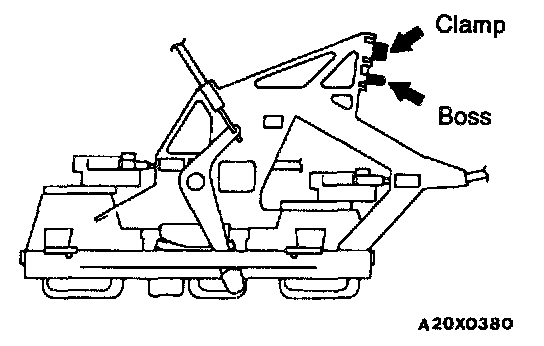

2. Snap the boss and clamp with flippers or a flat-tipped screwdriver, etc to remove the heater control assembly.

NOTE: boss and clamp are needed for assembly line at the factory, but not needed for service work.

INSTALLATION SERVICE POINT




Heater Control Assembly Installation
1. Always snap the boss and clamp before installing a new heater control assembly to the instrument panel.

NOTE: The boss and clamp are needed for assembly line at the factory, but not needed for service work.




2. Set the temperature control knob on the heater control assembly to MAX. HOT.
3. Set the air mix damper lever at the upper part of the heater unit to the MAX. HOT position, and install the cable to the lever pin.
4. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with the clip.




5. Set the knob for the air outlet change-over on the heater control assembly to the DEF position.

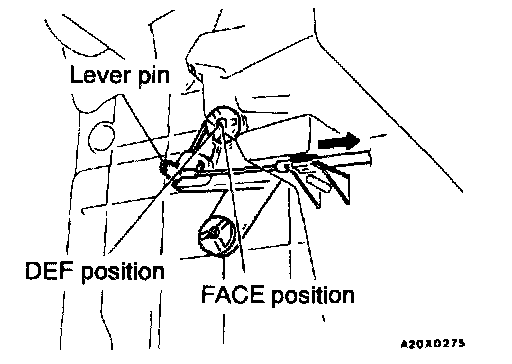

6. Set the air outlet change-over damper lever of the heater unit to DEF position and install the cable to the lever pin.
7. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with the clip.




8. Set the lever for the inside/outside air change-over on the heater control assembly to the air-recirculation position.

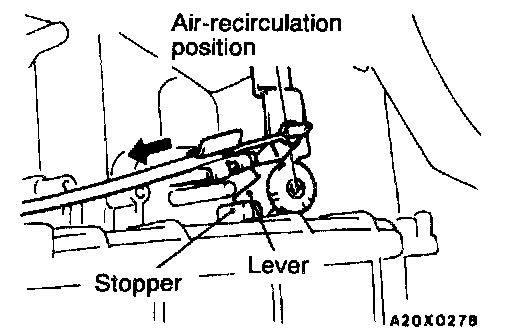

9. Set the inside/outside air change-over damper lever of the blower unit to air-recirculation position (with the inside/outside air change-over damper lever touched to the stopper of the blower case) and install the cable to the lever pin.
10. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with the clip.
