Engine: Service and Repair

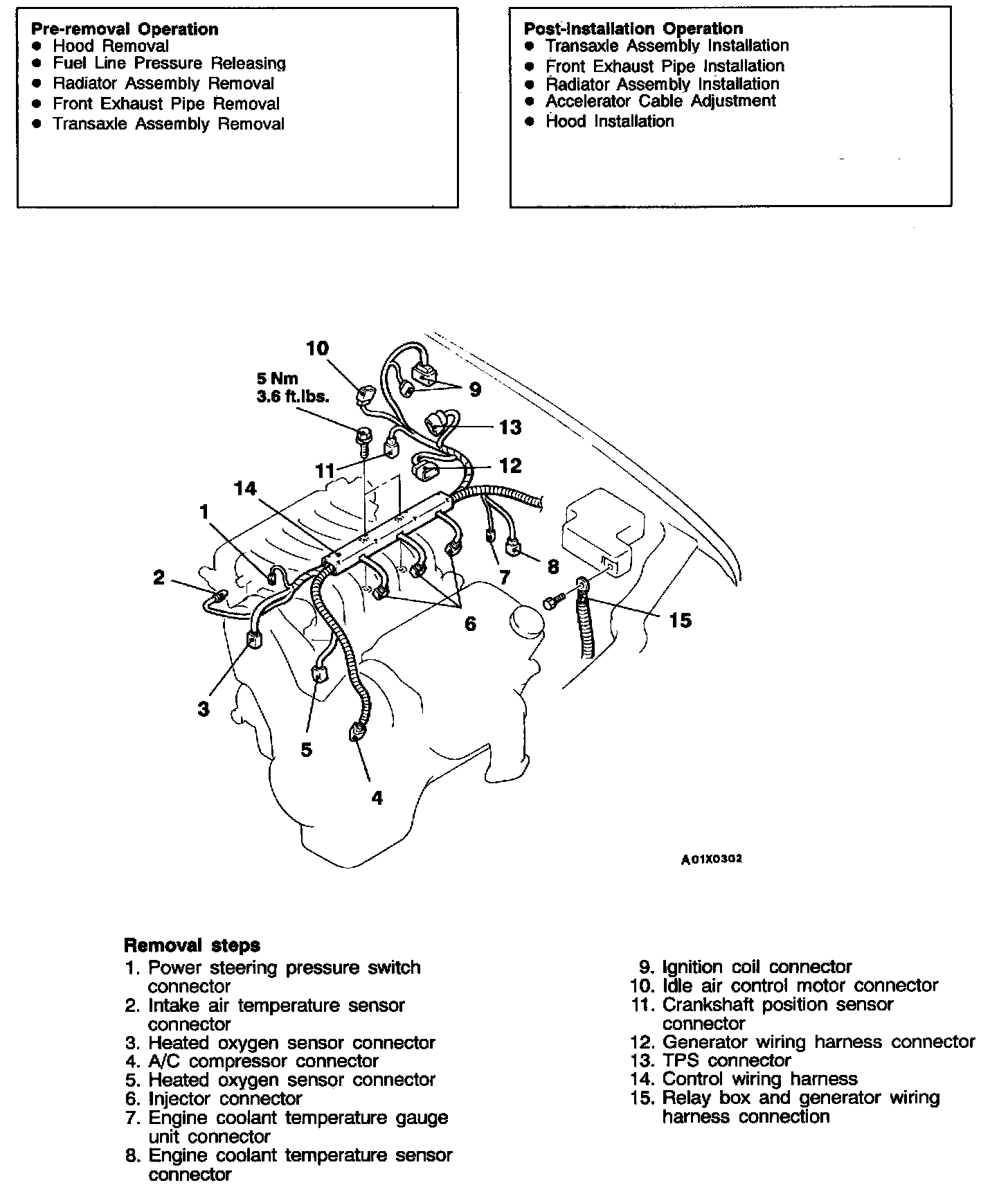

ENGINE ASSEMBLY
REMOVAL SERVICE POINTS
A/C COMPRESSOR REMOVAL
Remove the A/C compressor with hose attached.
NOTE: Use wire or similar material to suspend the removed A/C compressor. Check that nothing around it will be damaged during removal/installation of the engine assembly.
ENGINE MOUNT BRACKET REMOVAL
(1) Support the engine with a garage jack.
(2) Remove the mechanical hanger (recommended tool) which was attached when removing the transaxle assembly.
(3) Hold the engine assembly with a chain block or similar tool.
(4) Place a garage jack against the engine oil pan with a piece of wood in between, jack up the engine so that the weight of the engine is no longer being applied to the engine mount bracket, and then remove the engine mount bracket.
Do not disconnect hoses to remove the power steering oil pump and bracket assembly.
NOTE:
Use a wire or similar material to suspend the removed power steering oil pump and bracket assembly. Check that nothing around it will be damaged during removal/installation of the engine assembly.
Check that all cables, hoses and harness connectors, etc. are disconnected from the engine, and then lift the chain block slowly to remove the engine assembly upward from the engine compartment.
INSTALLATION SERVICE POINTS
>A< ENGINE ASSEMBLY INSTALLATION
Be sure not to pinch the cables, hoses, and harness connectors while installing the engine assembly.
>B< ENGINE MOUNT BRACKET INSTALLATION
(1) Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mount bracket while positioning the engine.

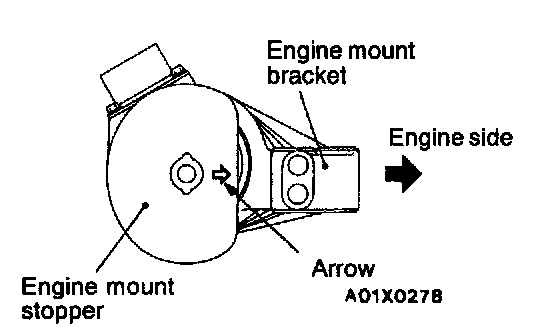

(2) Attach the engine mount bracket so that the arrow mark on the engine mount stopper is in the direction as shown in the illustration.
(3) Use a garage jack to support the engine.
(4) Remove the chain block and use the mechanical hanger (recommended tool) to support the engine assembly.
