Oil Pressure Gauge Check

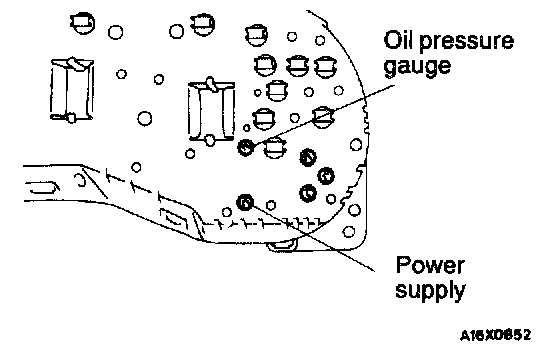

Use an ohmmeter to measure the resistance value between terminals.

Standard value: 42 +/- 2 ohms
