Oil Pan and Oil Screen

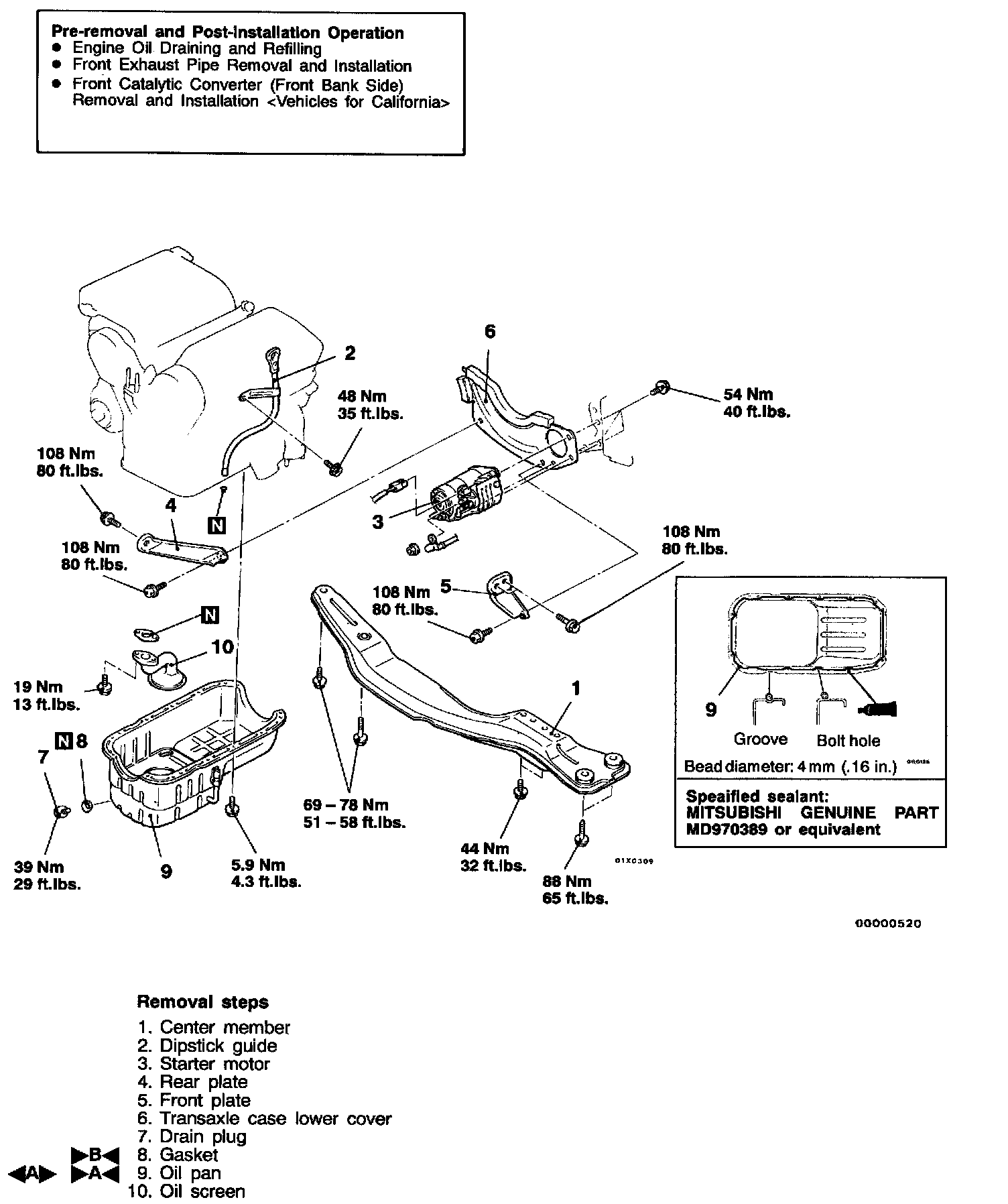

OIL PAN AND OIL SCREEN





REMOVAL SERVICE POINT

OIL PAN REMOVAL

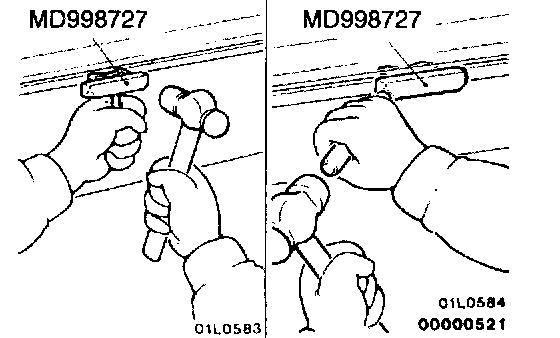

Remove the oil pan mounting bolts. Then use the special tool and a brass bar to remove the oil pan.

Caution: Do this slowly to avoid deformation of the oil pan flange.

INSTALLATION SERVICE POINTS

>A<OIL PAN INSTALLATION





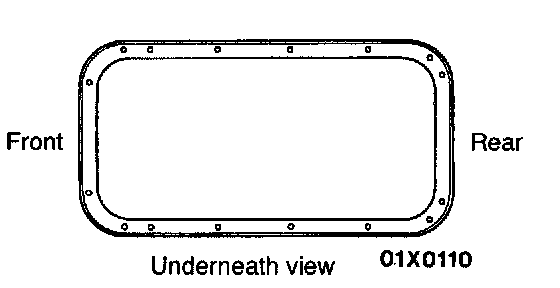

Tighten the bolts in order of the numbers shown in the illustration.

>B

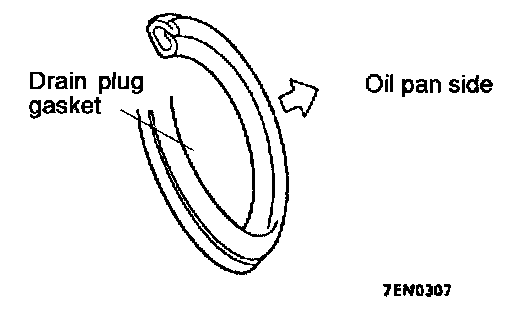

Replace the gasket so it face in the direction shown in the illustration.
