Interior Harness - E Connectors

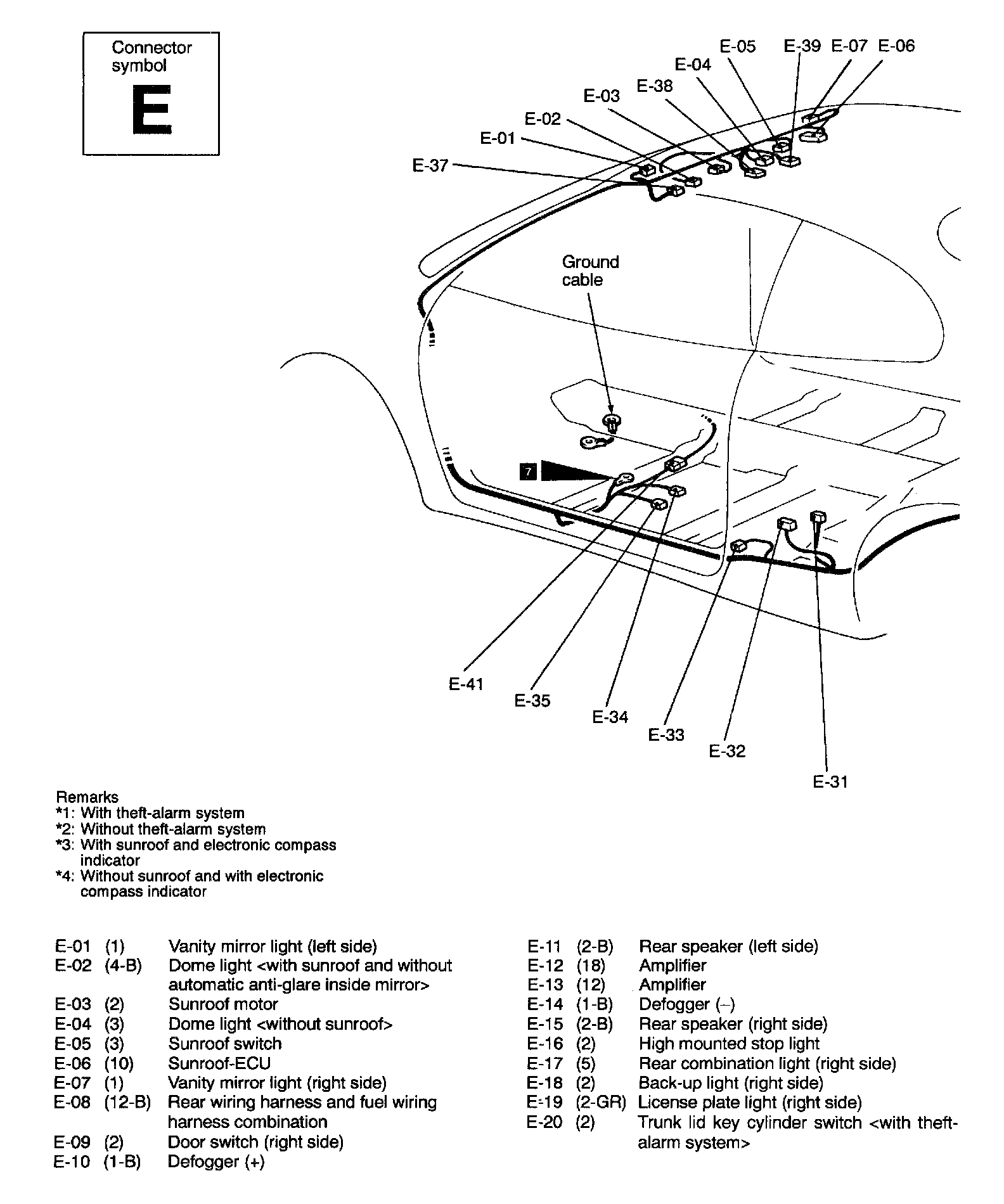

Interior - E Connectors (01 - 20):

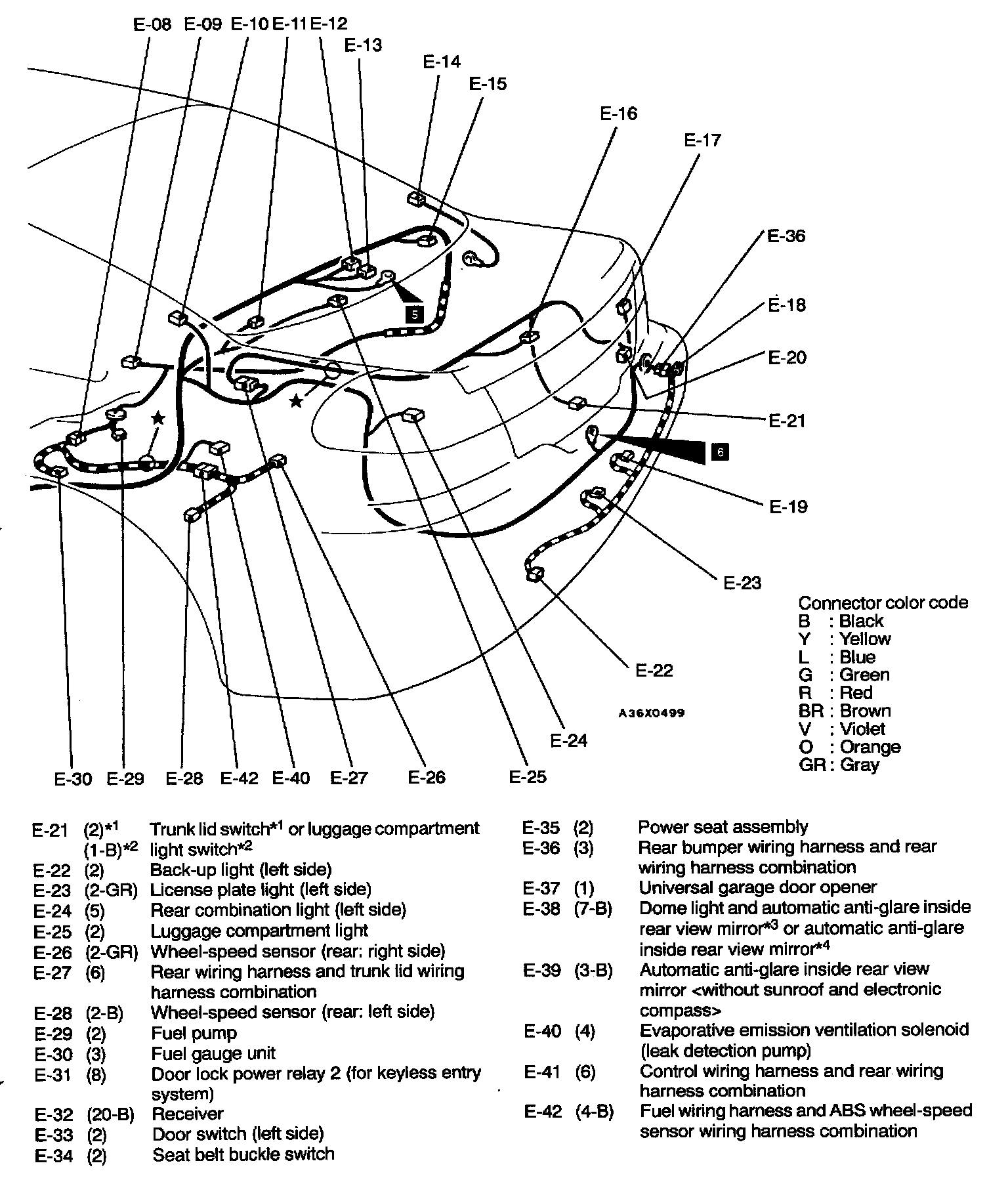

Interior - E Connectors (21 - 42):
