Displaying & Reading Trouble Codes

WHEN USING THE SCAN TOOL

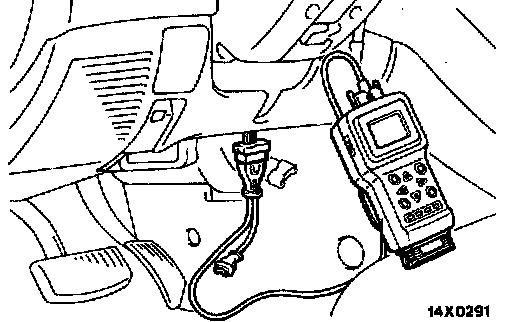

Connect the scan tool to the data link connector, then check diagnostic trouble codes.

CAUTION Turn the Ignition switch off before disconnecting or connecting the scan tool.

NOTE Diagnostic trouble code No. 16 can be output when the ABS system fails because of a battery surge.

WHEN USING THE ABS WARNING LIGHT

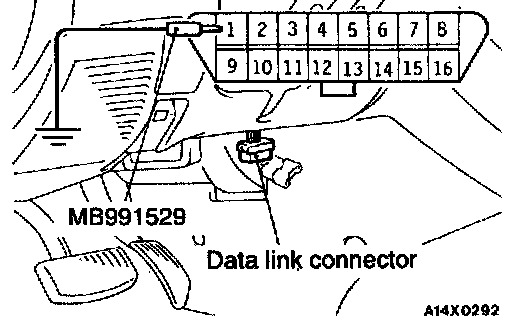

1. Use the special tool (diagnostic trouble code check harness) to ground the terminal 1 of the data link connector.

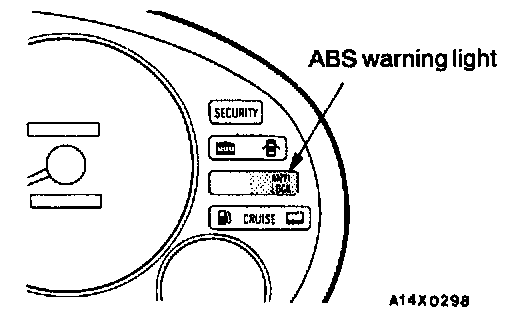

2. Take a reading of the diagnostic trouble code from the flashing of the ABS warning light.

NOTE Diagnostic trouble code No. 16 can be output when the ABS system fails because of a battery surge.
