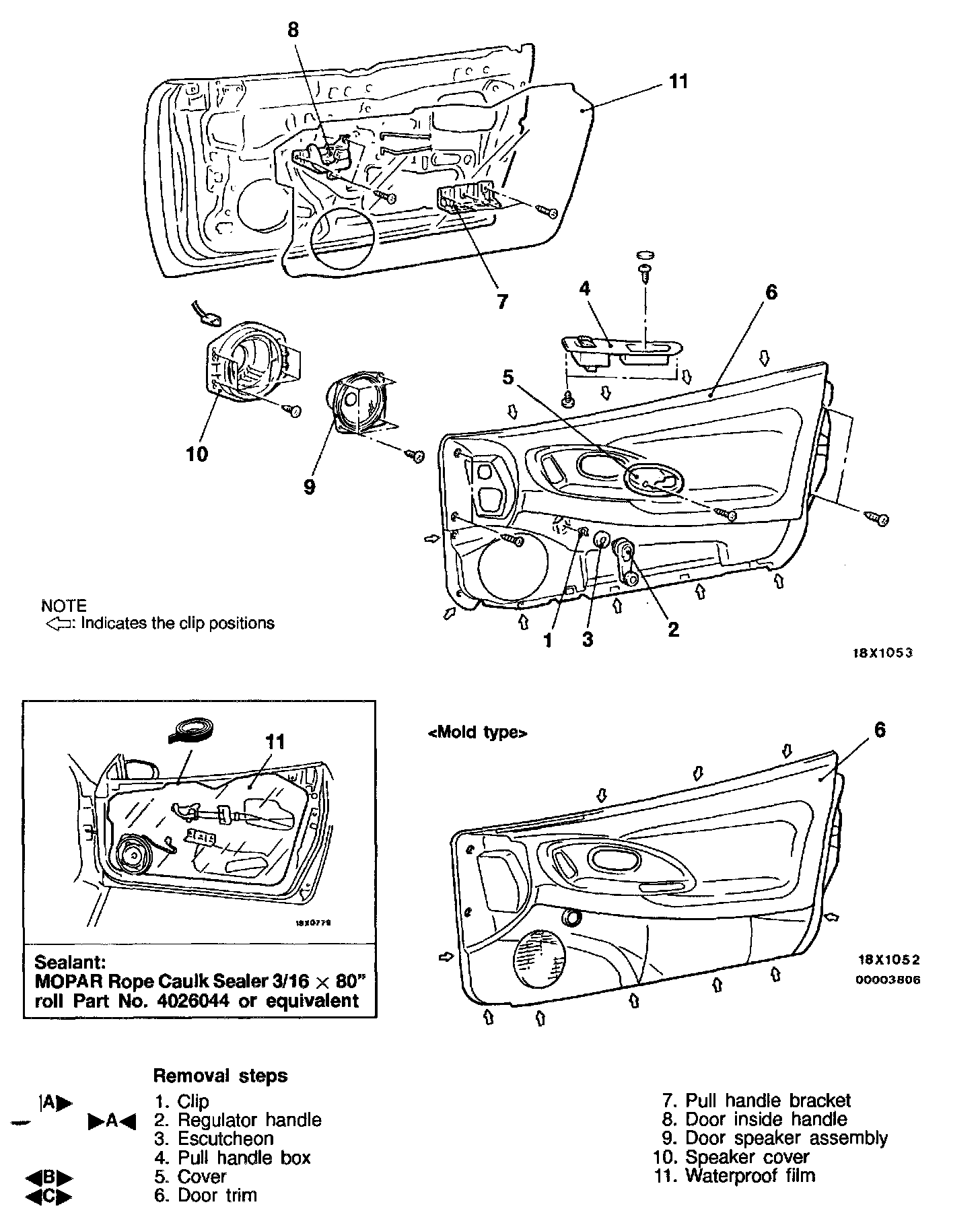

Front Door Panel: Service and Repair

REMOVAL SERVICE POINTS

A. CLIP REMOVAL

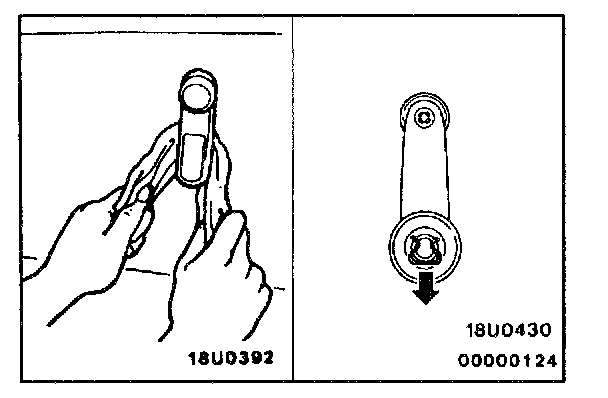

Remove the clip by using a shop towel, and then remove the regulator handle.

B. COVER REMOVAL

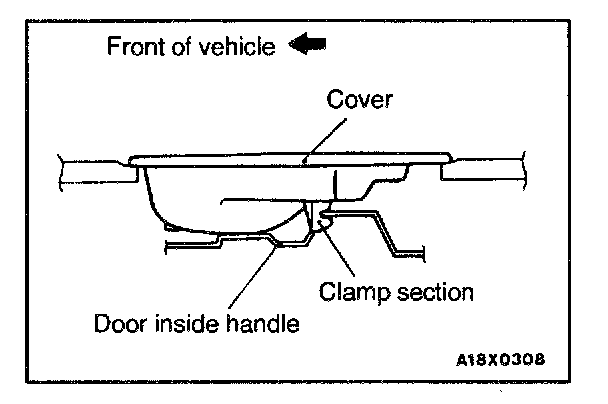

Remove the cover mounting screw and remove the cover by pushing it toward the front of the vehicle to remove the clamp section from the door inside handle.

C. DOOR TRIM REMOVAL

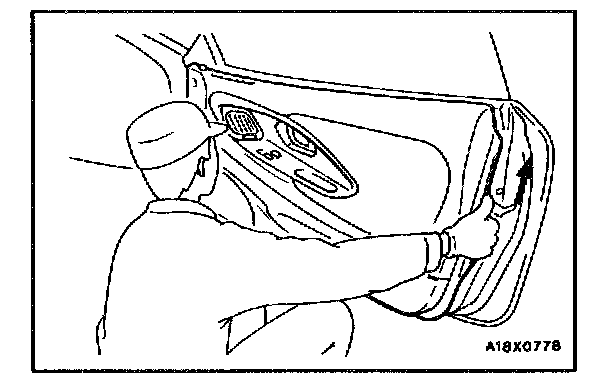

After removing the trim mounting screws and clips, push up the trim to remove it from the door window inner weatherstrip clips

INSTALLATION SERVICE POINT
A. REGULATOR HANDLE INSTALLATION




1. Install the escutcheon and the clip to the regulator handle.

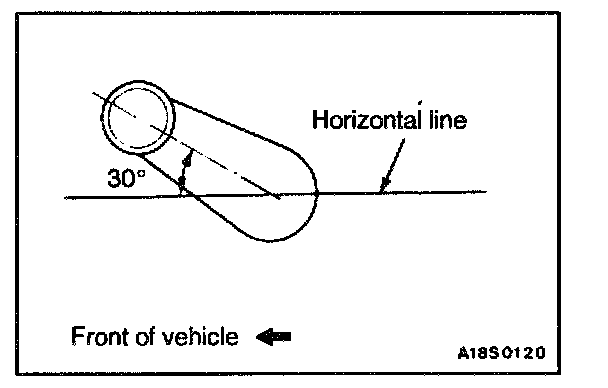

2. Fully close the door glass, and install the regulator handle so that it faces as shown.
