Wiper Motor: Testing and Inspection

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, SEE RESTRAINT SYSTEMS FOR STEERING WHEEL OR COLUMN REMOVAL PROCEDURES.

Wiper Motor Test:

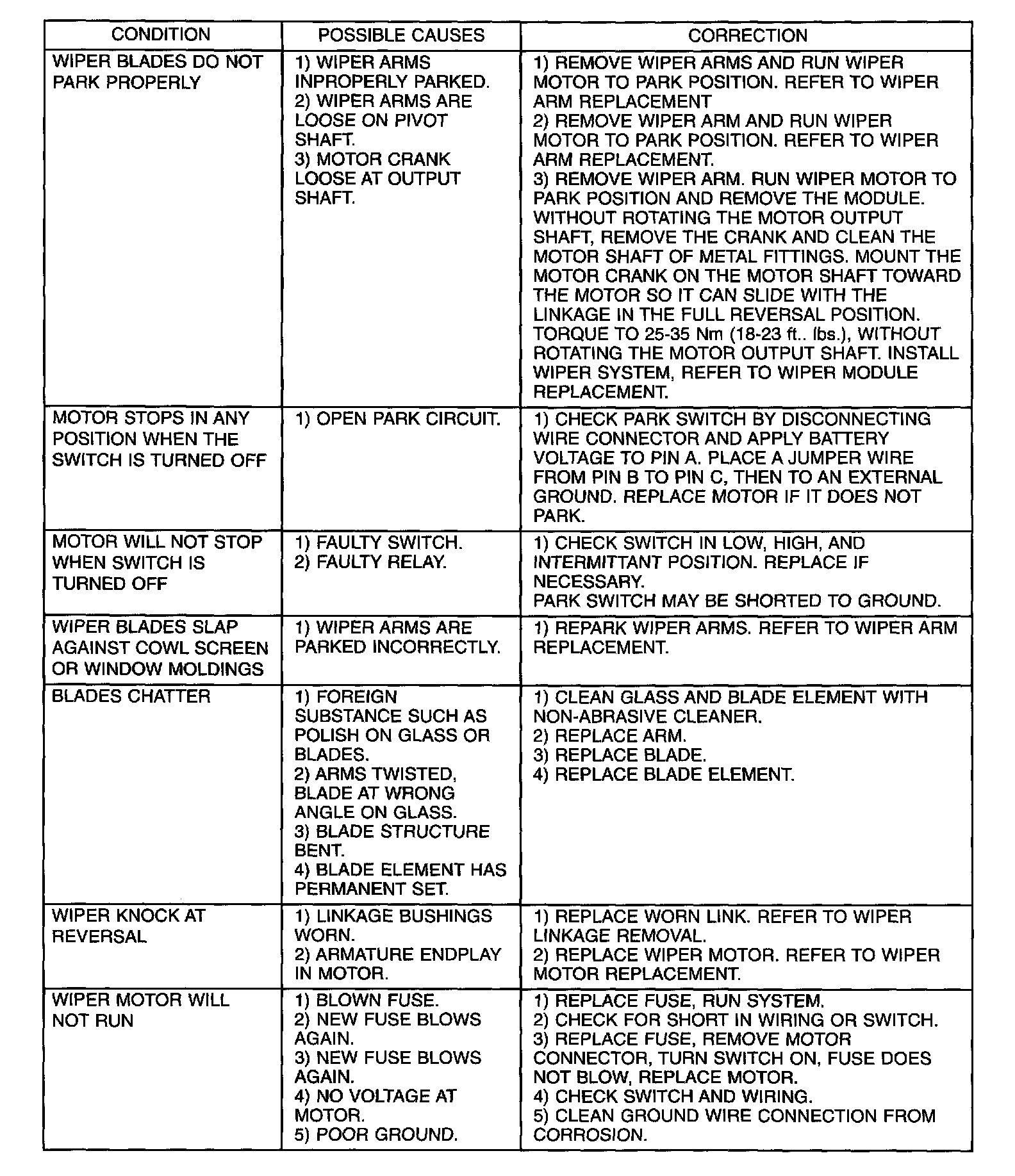

Whenever a wiper motor malfunction occurs, disconnect motor wire harness and clean the terminals. Ensure the wire harness is properly connected before starting diagnosis and repair procedures. Refer to Wiper Motor Test table.
