Wiper Motor Replacement

REMOVAL
1. Remove wiper motor assembly.

Linkage Removal:

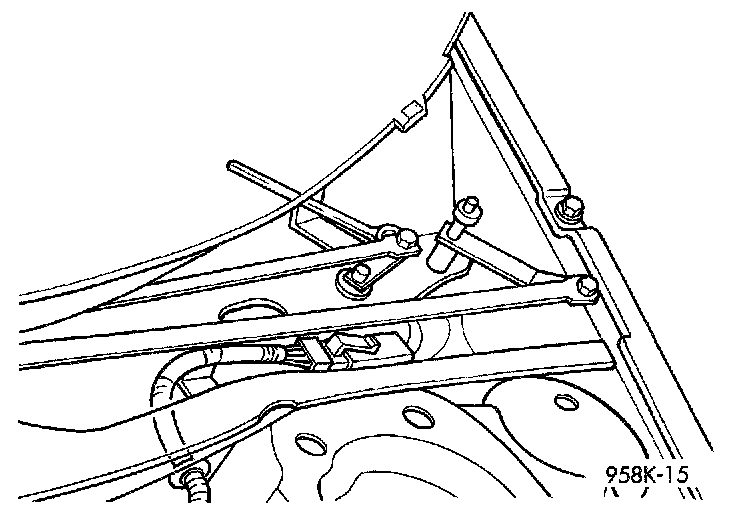

2. With motor assembly on bench, disconnect drive linkage from motor output crank. Using a ball joint/tie rod separator, separate the ball cap from the ball.
3. Remove retaining nut to motor output crank and remove crank from motor output shaft.
4. Remove motor mounting nuts and remove motor.

INSTALLATION
For installation, reverse the above procedures. Tighten the mounting screws to 10 to 12 Nm (89 to 106 in. lbs.) torque. Ensure that the motor connector seal is properly positioned. Tighten the motor mounting nuts to 25 to 30 Nm (19 to 23 ft. lbs.) torque.
