Wiper Motor Assembly Replacement

REMOVAL
1. Disconnect and isolate the battery negative remote cable.

Wiper Motor Assembly:

2. Remove wiper arms and blades.

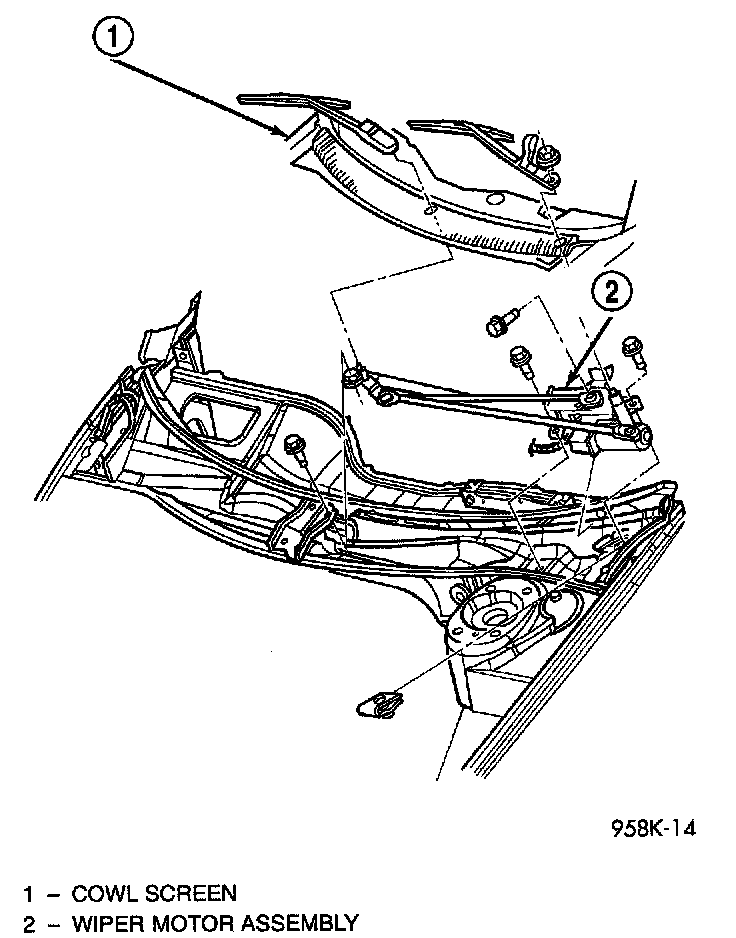

3. Remove the cowl screen.
4. Remove the four wiper motor assembly mounting screws then lift assembly to gain access to wire harness clip.
5. Disconnect harness clip from the forward mounting leg.
6. Disconnect wire connector at motor and remove assembly.

INSTALLATION
For installation, reverse the above procedures. Tighten the mounting screws to 10 to 12 Nm (89 to 106 in. lbs.) torque. Ensure that the motor connector seal is properly positioned.
