Wiper Blade Element Replacement

REMOVAL
1. Lift wiper arm to raise blade off the windshield.

Wiper Blade And Element:

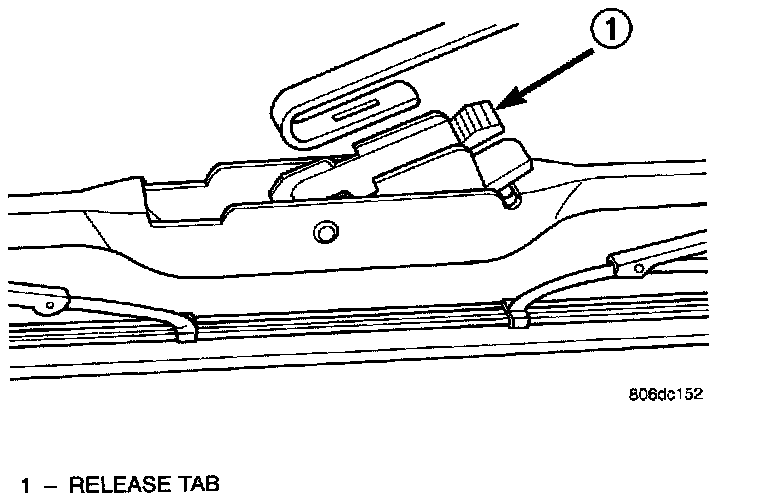

Remove Blade From Arm:

2. Remove blade assembly from arm by pushing release tab under arm tip and slide blade away from arm tip. Gently place wiper arm tip on windshield.

Wiper Blade And Element:

3. Remove wiping rubber element by pulling stopper of the rubber element, out of the claws of blade assemble. The wiper rubber element and two vertebra will be removed.

INSTALLATION
1. Slide the rubber element into the blade assembly through the claws.
2. Slide the metal vertebra into the top element slot, with the vertebra curved to match the windshield
3. Ensure that the final blade claw is locked into the slot at the end of the rubber element.
