Wiper and Washer Systems: Description and Operation

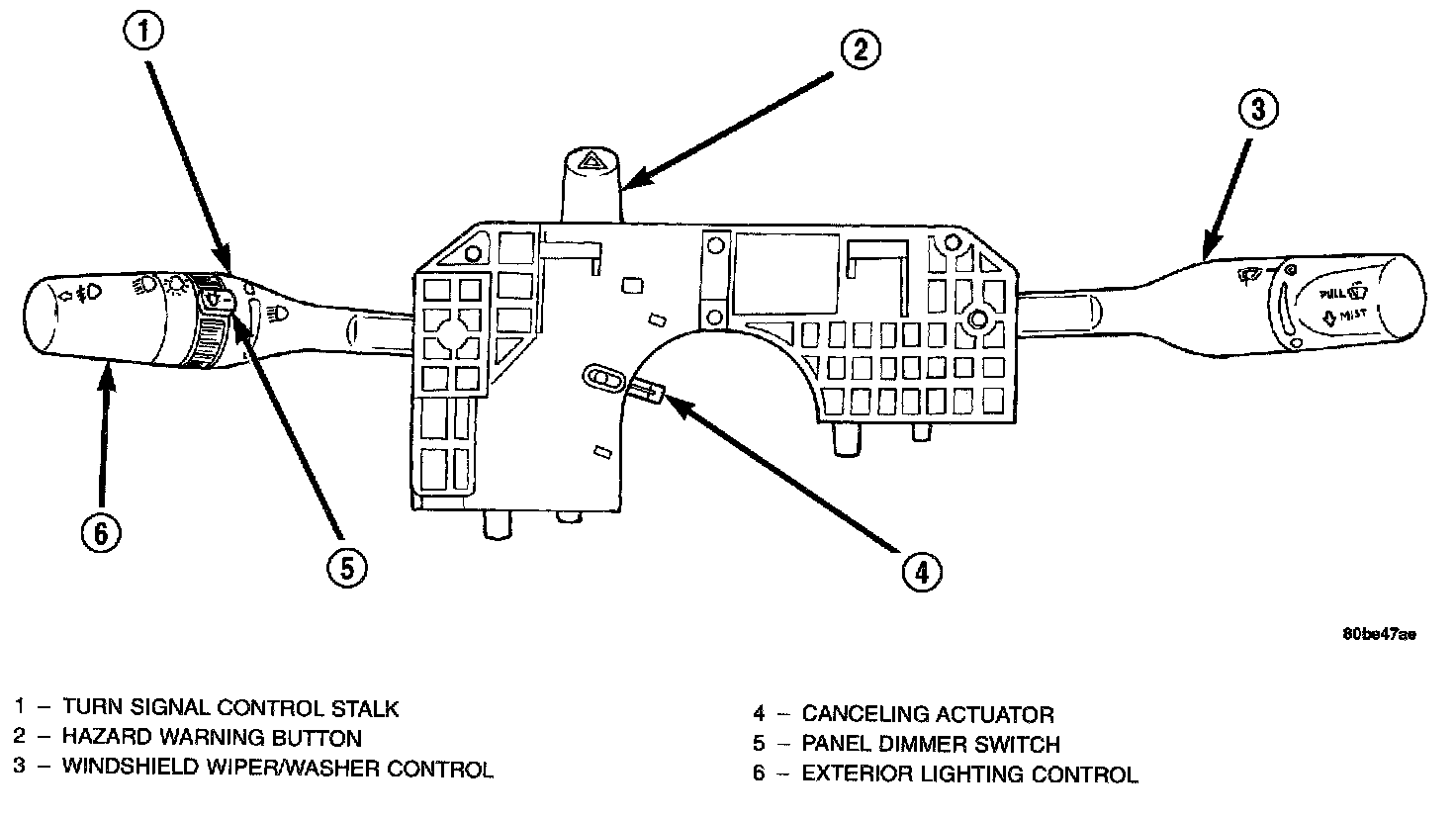

Multi-Function/Windshield Wiper And Washer Switch:

MULTI-FUNCTION SWITCH

WARNING: VEHICLES ARE EQUIPPED WITH AN AIRBAG, REFER TO AIRBAGS AND SEAT BELTS/AIRBAGS FOR STEERING WHEEL OR COLUMN SERVICE PROCEDURES.

The multi-function switch contains:
- Turn signals
- Hazard warning
- Headlamps
- Headlamp beam select
- Parking lamps
- Panel dimmer
- Fog Lamp
- Headlamp optical horn
- Windshield wiper
- Pulse wipe
- Mist wipe
- Windshield washer switches.
The multi-function switch is mounted center of the steering column. There are two levers, one on each side of the steering column.

The left side controls the signaling and lighting. The right side controls the windshield wiper and washer system. To use the washers pull lever toward the driver. The mist is a single wipe operation by pushing lever down and releasing the lever. Intermittent wiper operation is controlled by the Body Control Module (BCM). The lever has a selection of delay intervals and by turning the lever the wiper will cycle every half second to 36 seconds depending ON the vehicle's speed. The wiper has two cycle two speeds.

The windshield wipers will only operate when the ignition switch is in the ACCESSORY or IGNITION RUN position. Fuse 15, located in the Junction Block, fuses 8 and 14 in the Power Distribution Center (PDC) block, protects the wiper/washer system circuitry. The wiper motor also has an internal non-serviceable circuit breaker to provide protection against motor stall conditions.

The wiper and washer motors have magnetic fields created by internal permanent magnet. Electric power applied to the motor armature, located in the magnetic field, causes the motor to turn.

The wiper system internal operation uses the low speed motor circuit in combination with intermittent wipe relay. The washer pump motor has one internal circuit and therefore operates at one speed.

The wiper and washer system switch located on the steering column selects the mode of operation of the motors. The switch provides input to the BCM, which in turn operates the two relays. The intermittent wipe relay turns the wiper ON and OFF. The other changes the HIGH/LOW speeds. The switch also provides power to the washer pump motor.

The intermittent wiper system, in addition to low and high speed, has a delay mode. The delay mode has a range of 1/2 to 18 seconds when the vehicle speed is over 10 m.p.h.. The wiper delay times will automatically double to a range of 1 to 36 seconds when the vehicle speed is less than 10 m.p.h.. The delay is controlled by a variable resistor in the wiper switch and BCM.

The wiper motor and washer motor are designed to reduce radio frequency interference and provide electro-magnetic compatibility (RFI/EMC) in the vehicle environment. This is done with suppression circuits designed into the motors.

The wiper system completes the wipe cycle when the switch is turned OFF. The blades park in the lowest portion of the wipe pattern.

When using a scan tool (DRB) refer to the Body Diagnostic for the procedures.

WINDSHIELD WASHERS
All models are equipped with electric operated windshield washer pumps. The wash function can be accessed in the OFF or ON position of the multi-function wiper control switch.

Pulling the lever towards the driver when the wiper switch is in the OFF position will operate the wipers and washer motor pump continuously until the lever is released. Releasing the lever will stop the washer pump but the wipers will complete the current wipe cycle. Followed by an average of two more wipe cycles (±1) before the wipers park and the module turns OFF.

The electric pump assembly is mounted with a grommet directly to the reservoir. Fluid is gravity fed from the reservoir to the motor. The fluid is forced by the pump through hoses to the hood mounted nozzles which direct the fluid streams to the windshield. The nozzles have one-way check valves located in the nozzle assemblies. The purpose of the check valves is to improve fluid flow response time and to prevent excessive washer fluid staining the surface of the hood. The hood mounted nozzles evenly distribute washer fluid across the surface of the windshield. The nozzles are not adjustable. The pump and reservoir are serviced as separate assemblies.

Wiper Blade - Typical:

WIPER BLADES
The wiper blades are a rubber element with a steel vertebrae that are mounted on the end of the windshield wiper arm and sweep across the front windshield to clear it of water, snow, and debris.

When the wiper blade rubber element is exposed to the weather for a long period of time, it tends to lose wiping ability. Periodic cleaning of the wiper blade element is suggested to remove the accumulation of salt and road film. The wiper blades, arms, and windshield should be cleaned with a sponge or cloth and a mild detergent or non-abrasive cleaner. If the blades continue to streak or smear, they should be replaced. The driver and the passenger blade elements are 550 mm in length.
