Front Door Window Glass: Service and Repair

DOOR GLASS

REMOVAL

1. Remove door trim panel and watershield.
2. Remove inner door belt weatherstrip.






3. Loosen inner belt stabilizer Inner Belt Stabilizer
4. Remove door speaker, if so equipped.
5. Lower door glass to access glass attachment bolts.

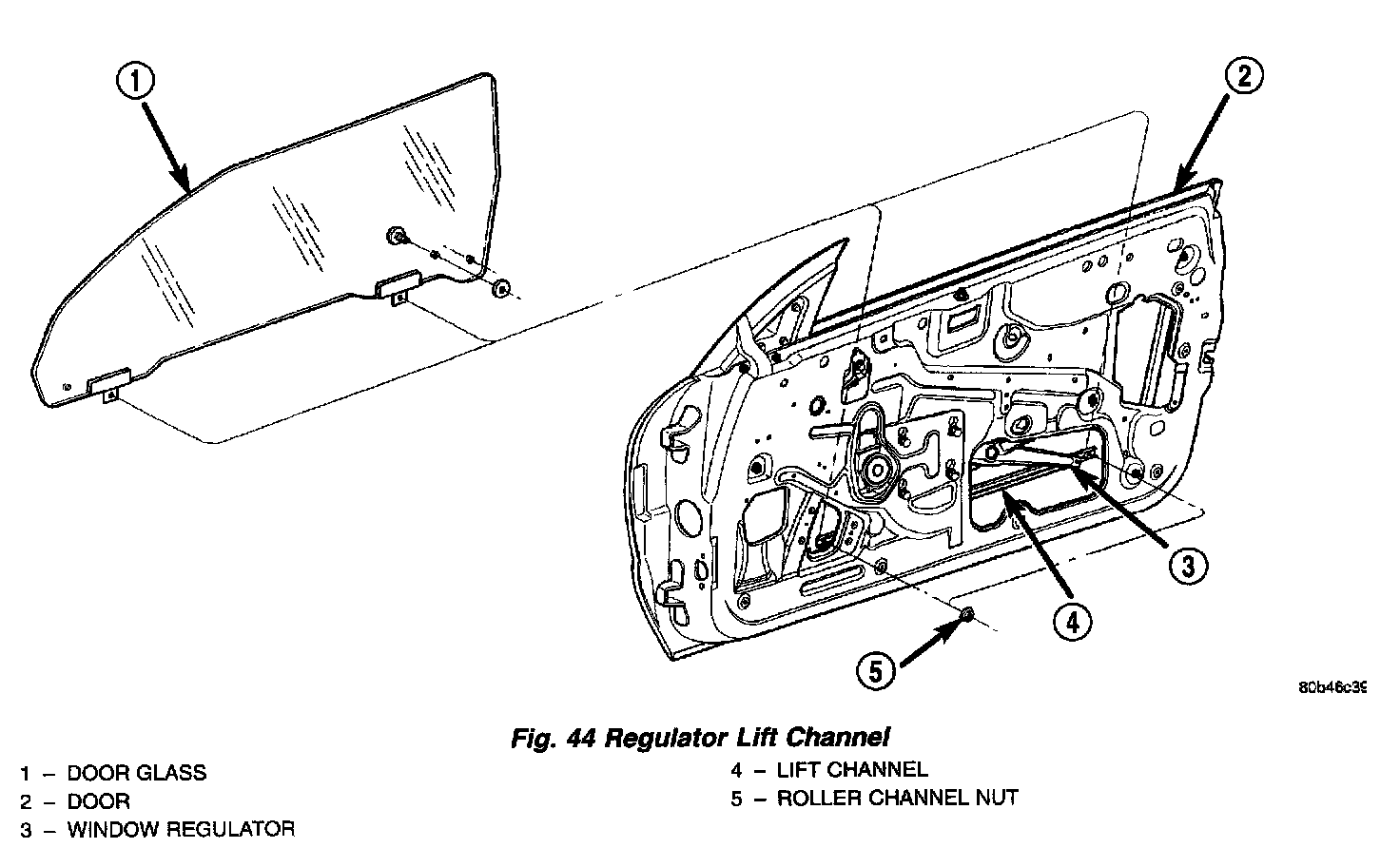

6. Remove bolts attaching regulator lift channel to door glass Regulator Lift Channel






7. Remove bolts attaching rear guide plate to door glass Rear Guide Bolts
8. Remove rear guide plate from door glass.






9. Lift door glass upward and out of opening at top of door Regulator Lift Channel

INSTALLATION

1. Carefully lower door glass through opening in top of door. Verify that the front edge of the glass is in the mirror flag glass channel.
2. Position rear guide plate onto door glass and install bolts.
3. Install nuts attaching regulator lift channel to door glass.
4. Tighten all door glass fasteners.
5. Install door speaker, if so equipped.
6. Tighten window inner belt stabilizer.
7. Install inner door belt weatherstrip.
8. Install door trim panel and watershield.
