Electrical Diagrams

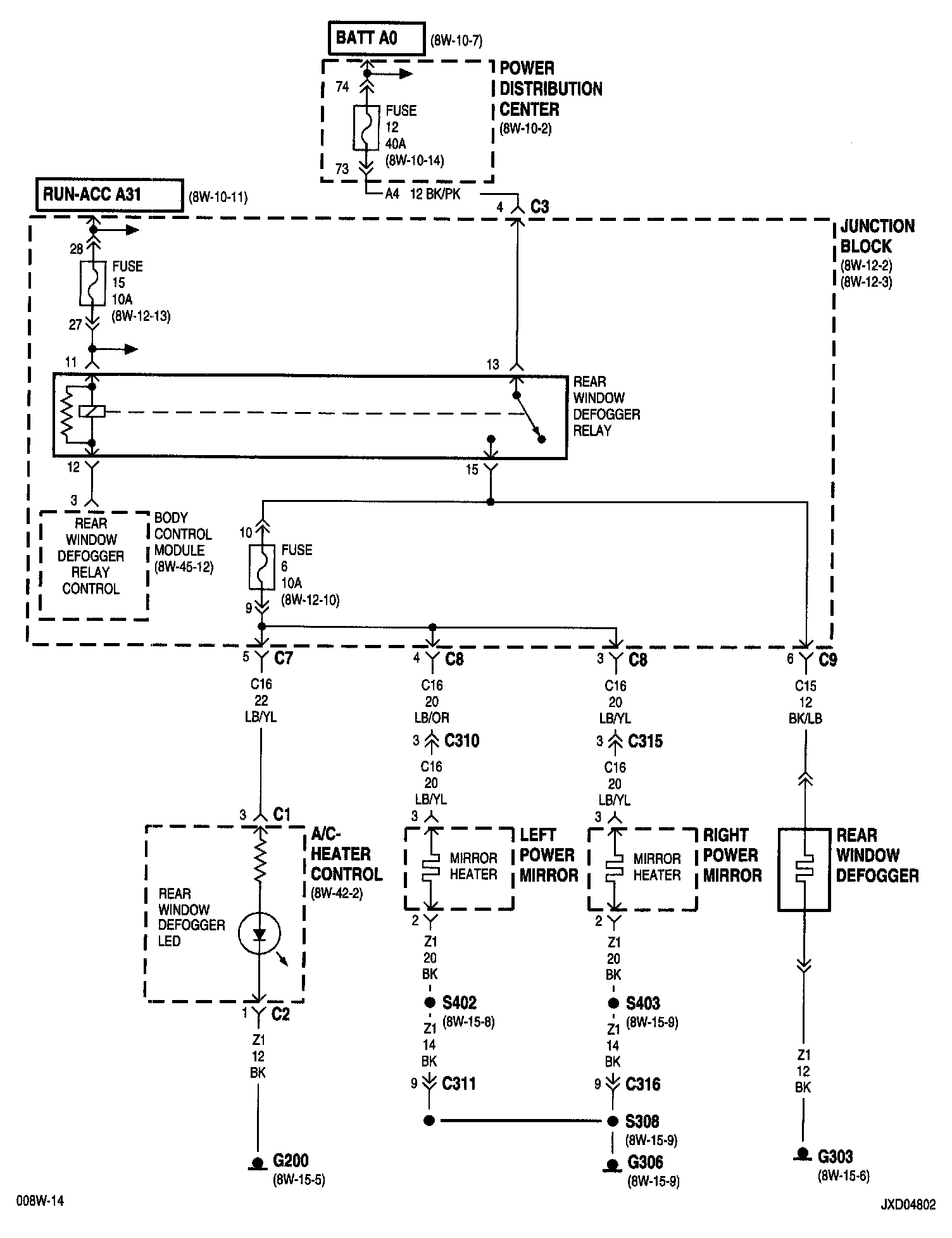

8w-48-2:

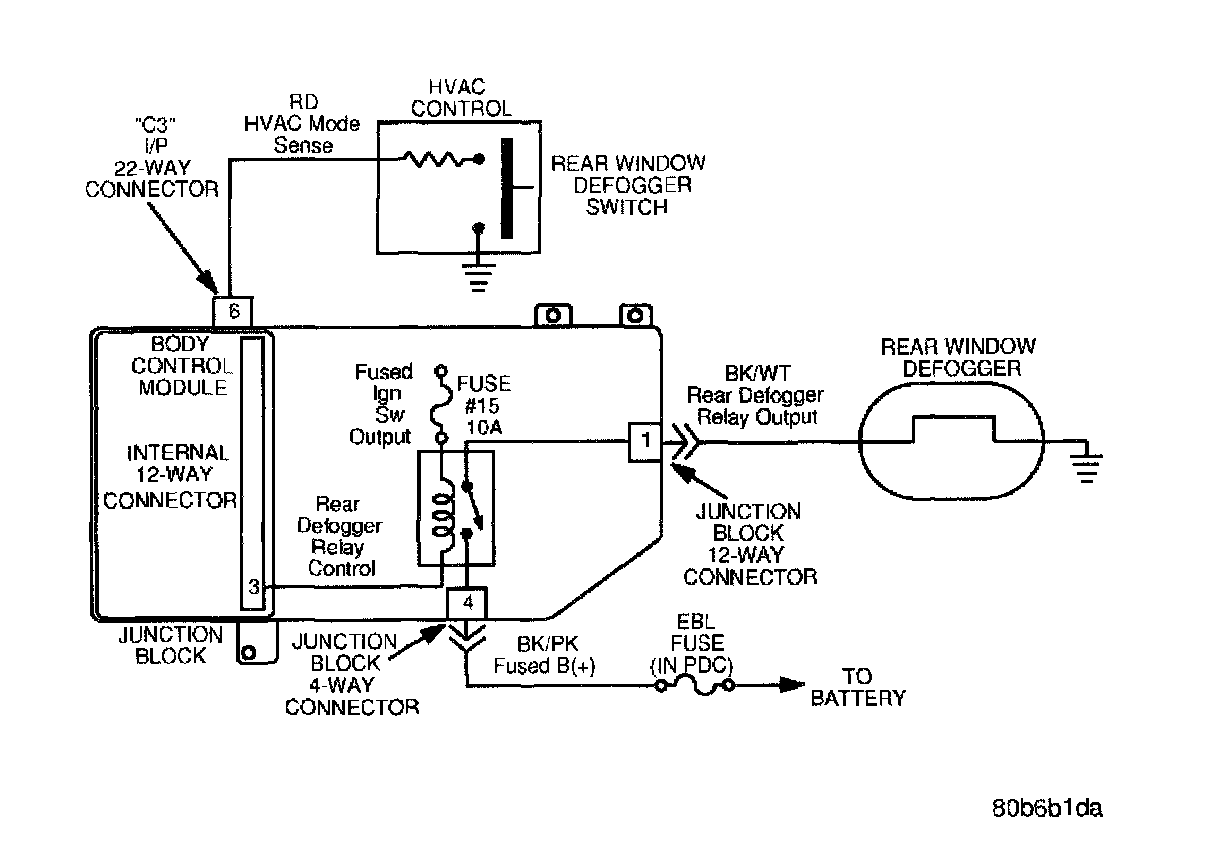

Rear Window Defogger:





NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
