Solenoid/Pressure Switch Assembly
REMOVAL1. Disconnect battery negative cable.
2. Remove air cleaner assembly.
Fig. 64:

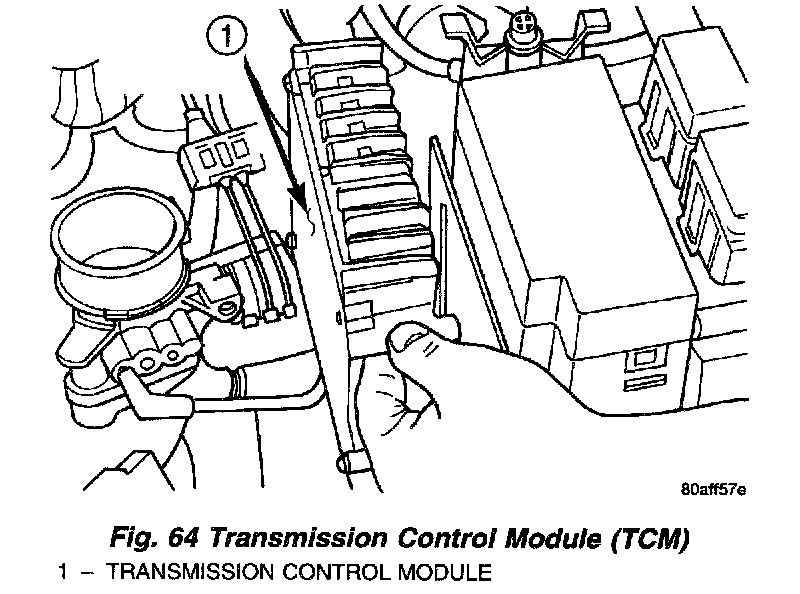

3. Remove the Transmission Control Module (TCM) (Fig. 64).
Fig. 65:

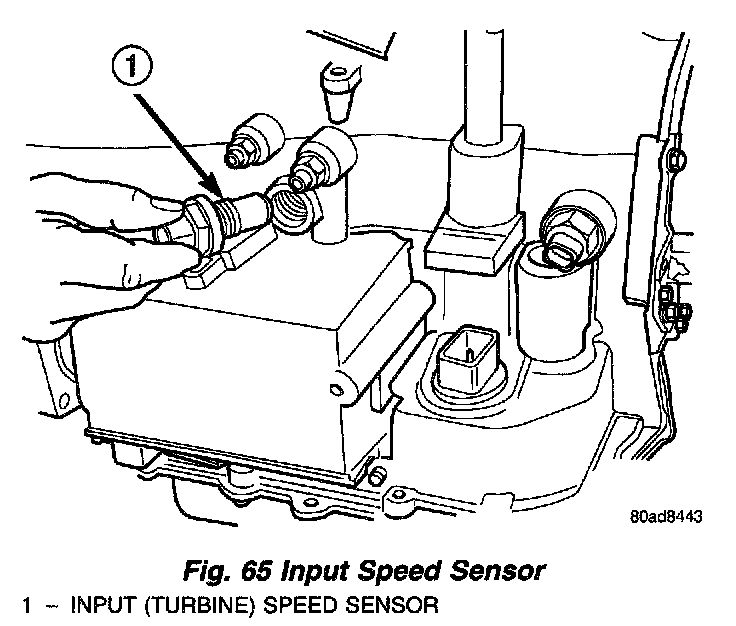

4. Disconnect and remove the input speed sensor (Fig. 65).
5. Disconnect the transmission oil cooler lines. Cap off hoses and fittings to prevent foreign matter intrusion.
6. Disconnect the solenoid/pressure switch assembly connector.
Fig. 66:

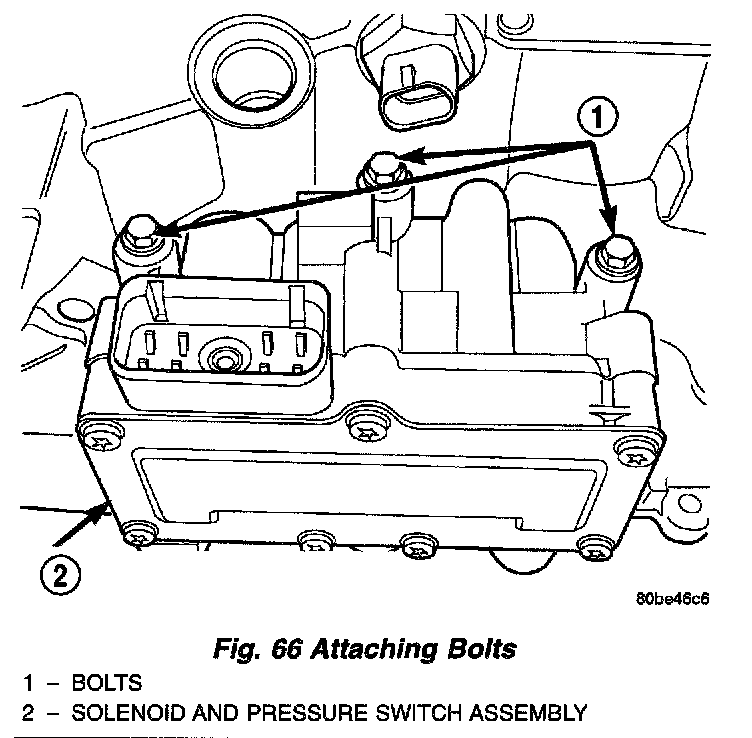

7. Remove the three solenoid/pressure switch assembly-to-transaxle case bolts (Fig. 66).
Fig. 67:

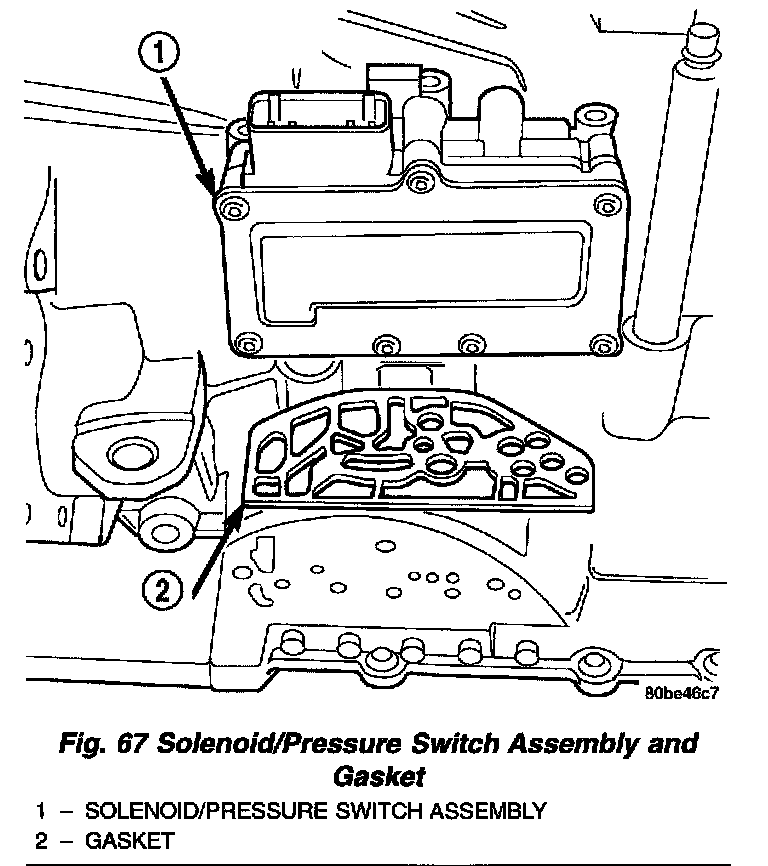

8. Remove solenoid/pressure switch assembly and gasket (Fig. 67).
CAUTION: Be sure to keep foreign material from entering ports in transaxle case. Erratic transaxle operation and/or failure can result.
INSTALLATION
1. Install solenoid/pressure switch assembly to case using a new gasket (Fig. 67).
2. Install bolts and torque to 13 Nm (110 inch lbs.) (Fig. 66).
3. Install 8-way connector and torque screw to 4 Nm (35 inch lbs.).
4. Uncap and install transmission oil cooler lines.
5. Install input speed sensor (Fig. 65) and torque to 27 Nm (20 ft. lbs.).
6. Install Transmission Control Module (TCM) (Fig. 64).
7. Install air cleaner assembly.
8. Connect battery negative cable.
9. Perform Transaxle Quick Learn Procedure. Refer to Service Procedures.
