FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> Descriptive/Dimensional Specification Charts

Descriptive/Dimensional Specification Charts

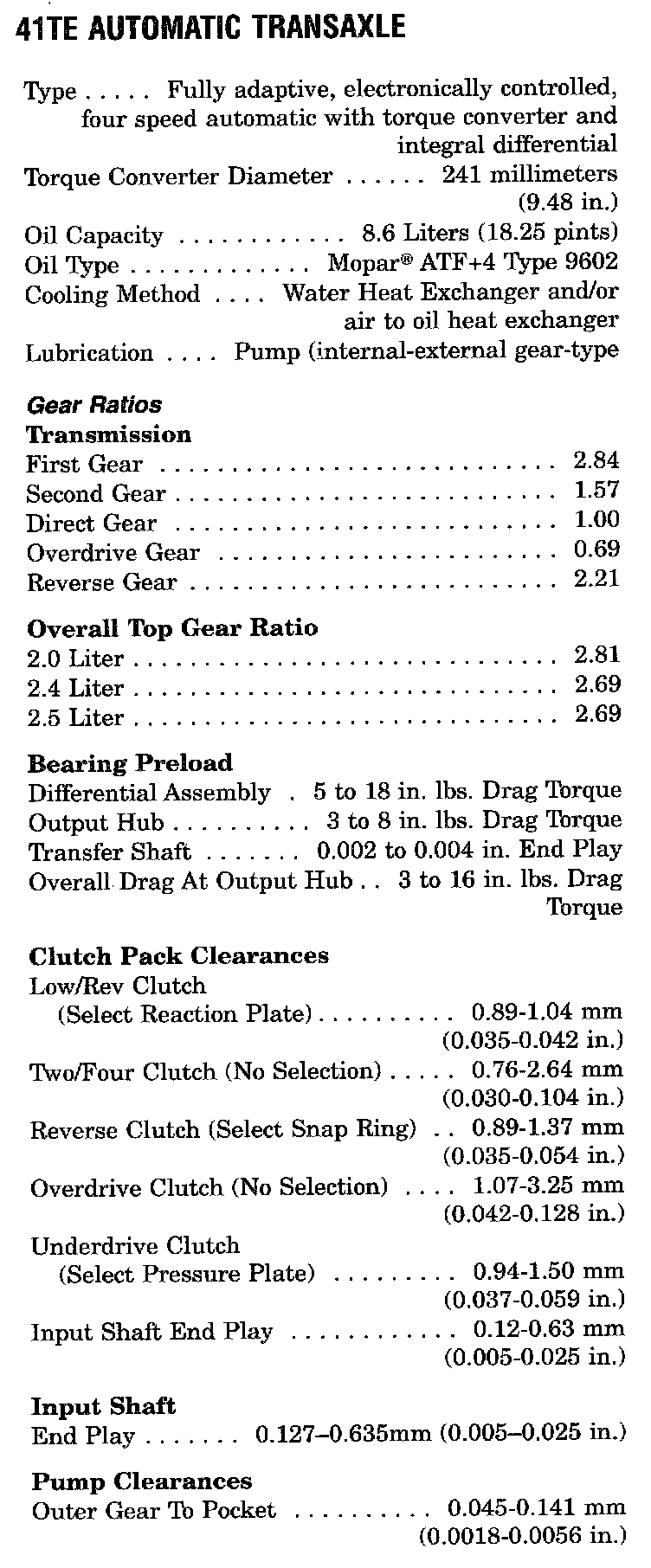

Part 1 Of 2:

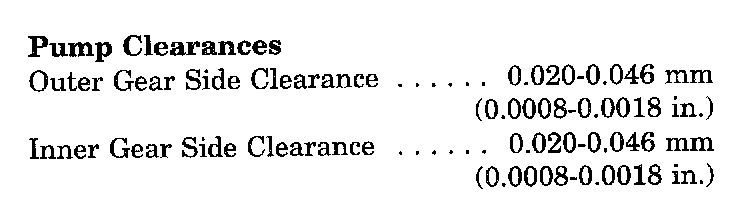

Part 2 Of 2:
