Rear Suspension

N�K5Part 1 Of 2:

Part 2 Of 2:

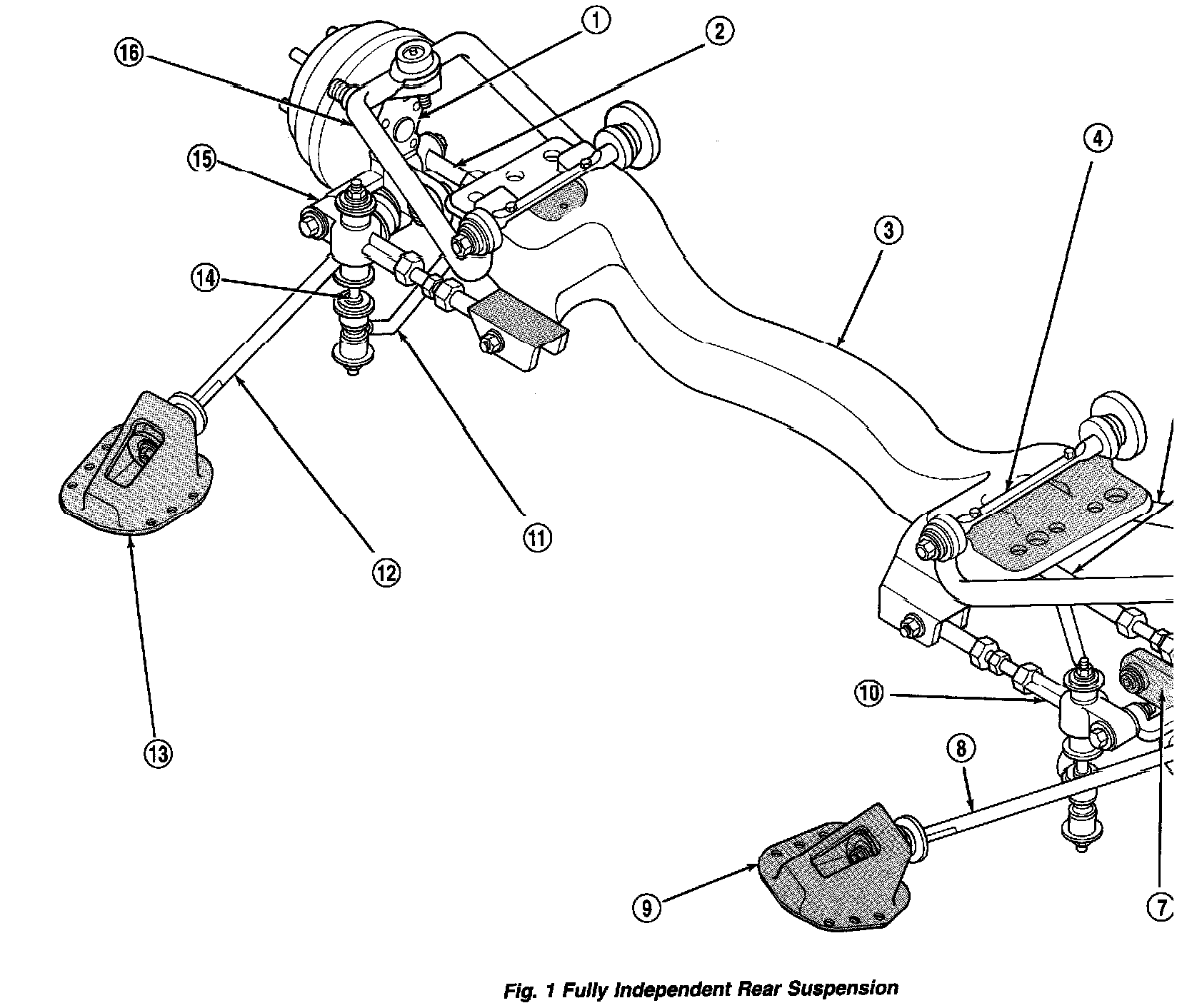

The rear suspension used on this vehicle is a fully independent short and long arm style suspension.

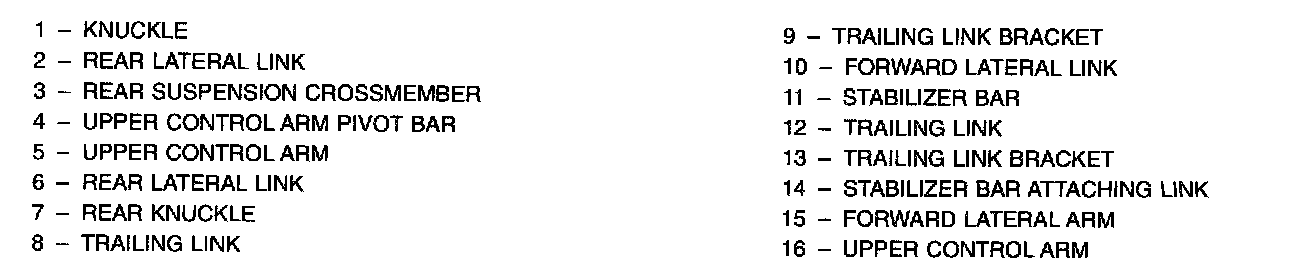

Each side of the rear suspension consists of these major components:
- a shock assembly
- a knuckle
- an upper control arm
- two lateral links
- a trailing link
- a stabilizer bar

OPERATION
The rear suspension allows each rear wheel on vehicle to adapt to different road surfaces and conditions without affecting the control of the vehicle. Each side of the suspension is allowed to move independently from the other.
