Alternator: Service and Repair

REMOVAL
1. Disconnect battery negative cable from remote negative terminal on shock tower.
2. Unplug field circuit from generator.

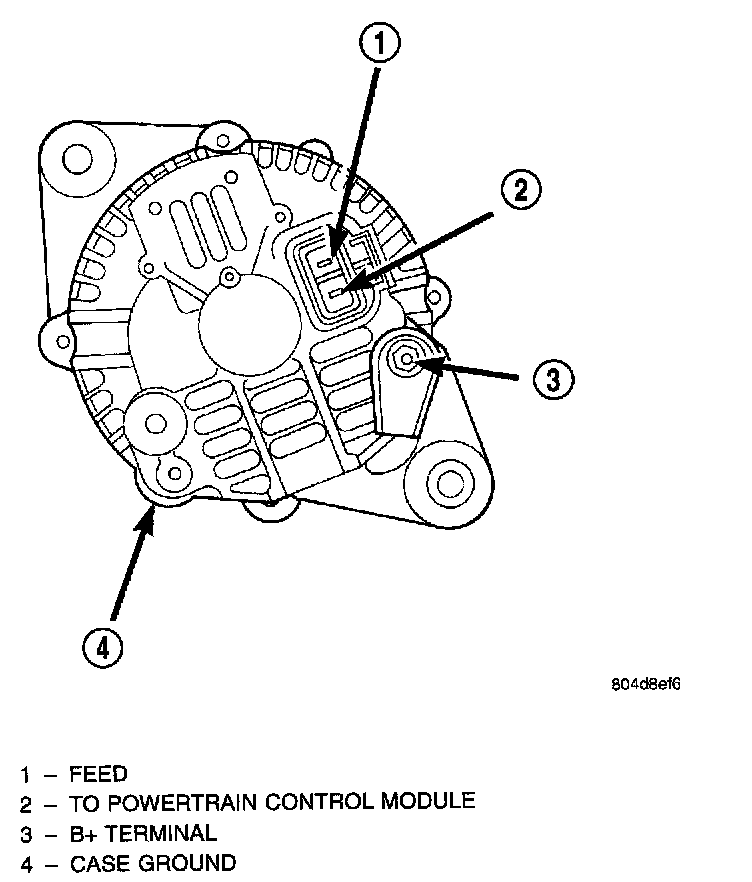

Wiring Connections:

3. Remove the B+ terminal nut and wire.
4. Loosen top mounting ear bolt.

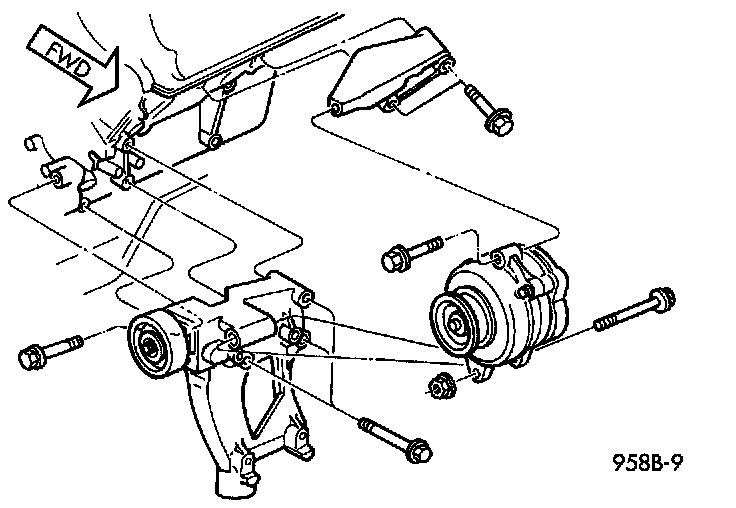

Generator:

5. Loosen pivot bolt, but do not remove. Be careful not to lose nut.
6. Loosen adjusting bolt on idler to allow removal of the generator drive belt.
7. Remove pivot bolt, do not drop spacer.
8. Remove top mounting ear bolt.
9. Remove upper generator bracket.
10. Remove generator.

INSTALLATION
1. Install generator.
2. Install upper generator bracket.
3. Install top mounting ear bolt.
4. Install pivot bolt, do not drop spacer.
5. Install field circuit to generator.
6. Install the B+ terminal nut and wire.
7. Tighten adjusting bolt on idler for the generator drive belt.
8. Tighten the top mounting ear bolt.
9. Tighten the pivot bolt.
10. Connect battery negative cable to the remote negative terminal on shock tower.
