Ignition Switch Lock Cylinder: Description and Operation

The lock cylinder is inserted in the end of the housing opposite the ignition switch.

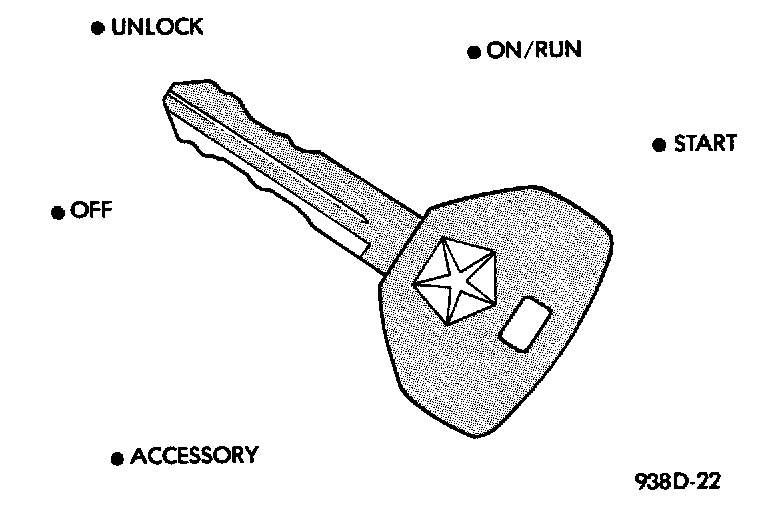

Ignition Lock Cylinder Detents:




The ignition key rotates the cylinder to 5 different detents:
- Accessory
- Off (lock)
- Unlock
- On/Run
- Start
