Pre-Diagnostic Checkout

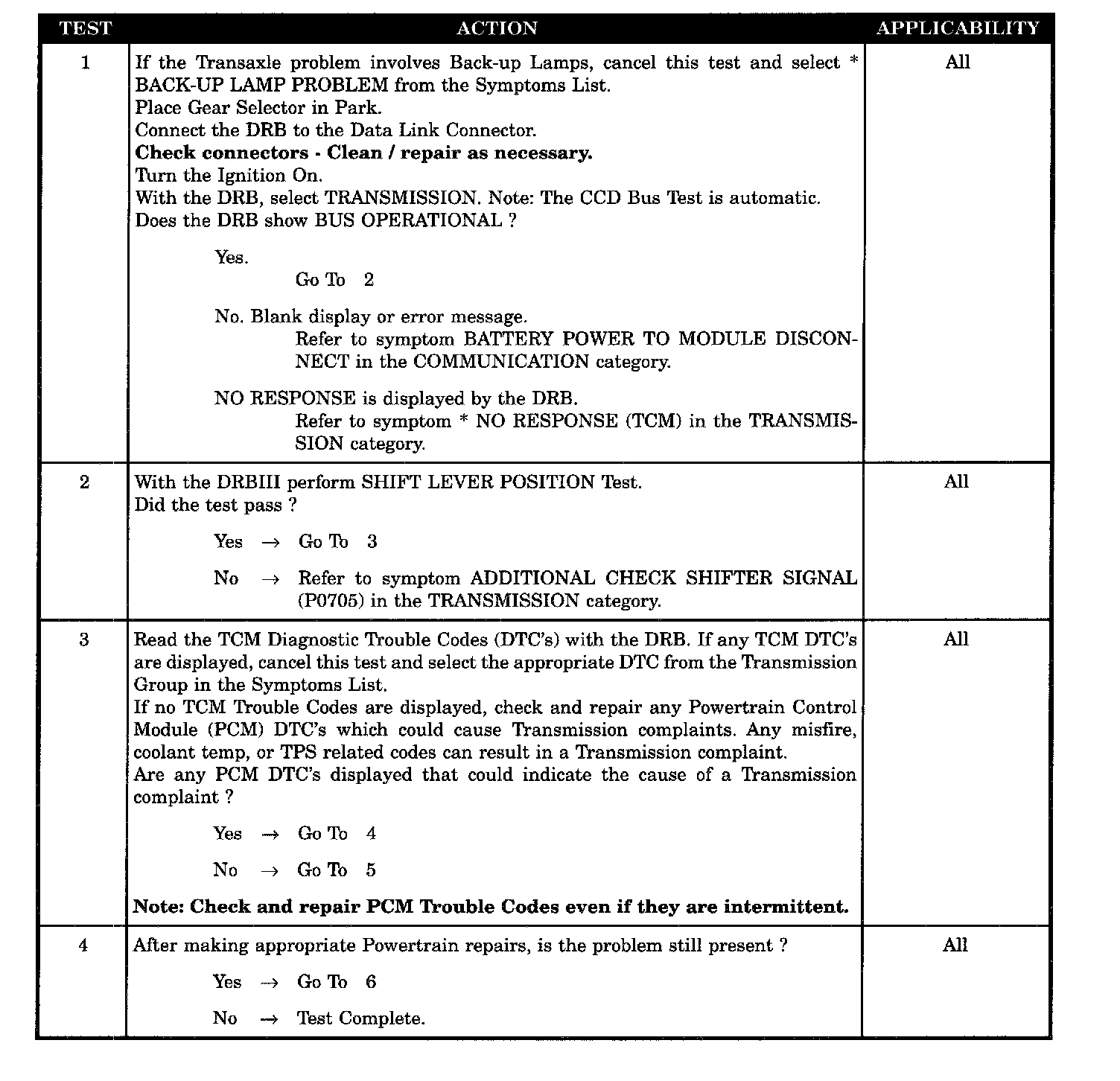

Test 1 Through 4:

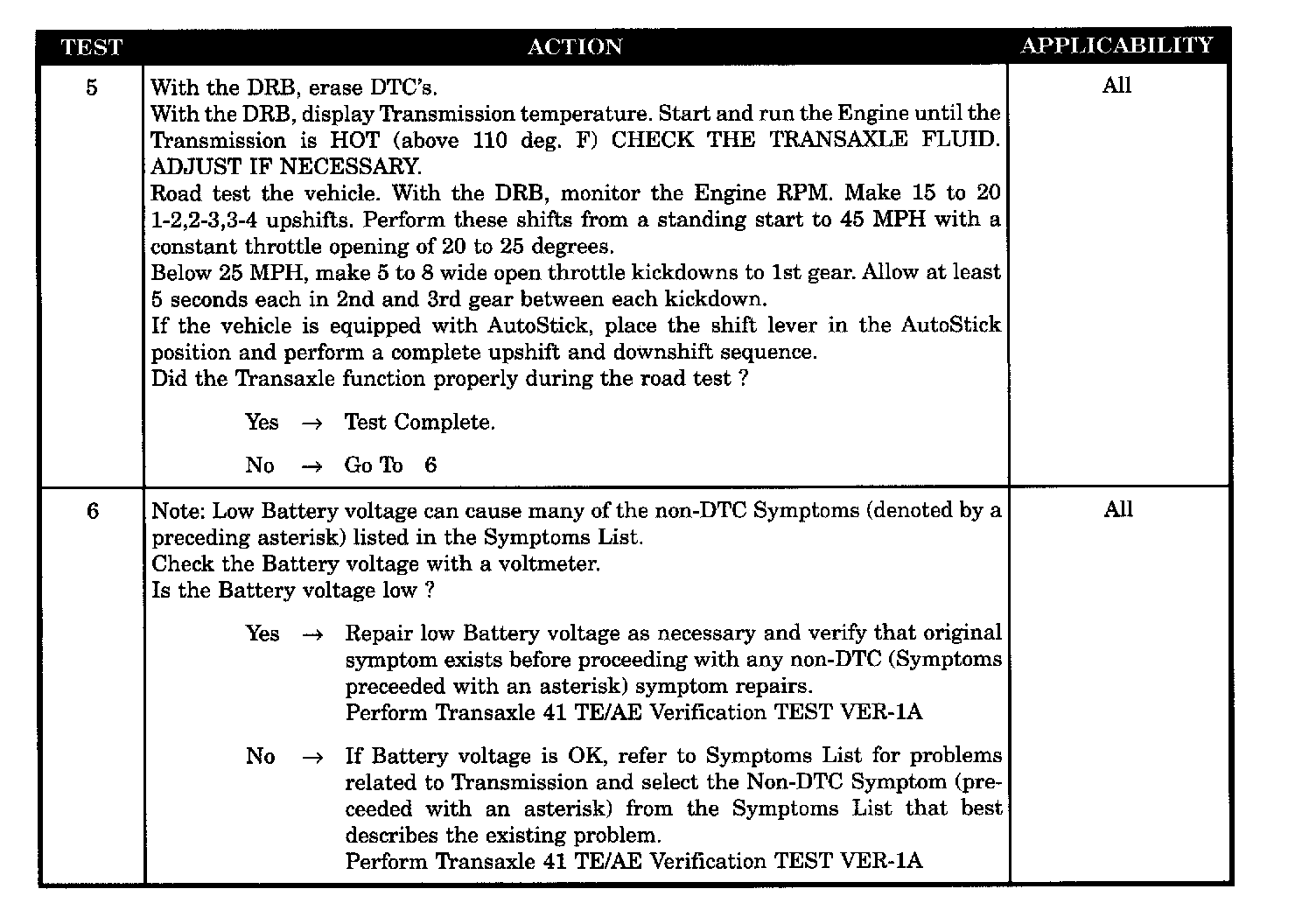

Test 5 Through 6:






Symptom:
* PRE-DIAGNOSTIC CHECKOUT

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE CAUSING SYMPTOM
