Engine Control Module
>>
Locations

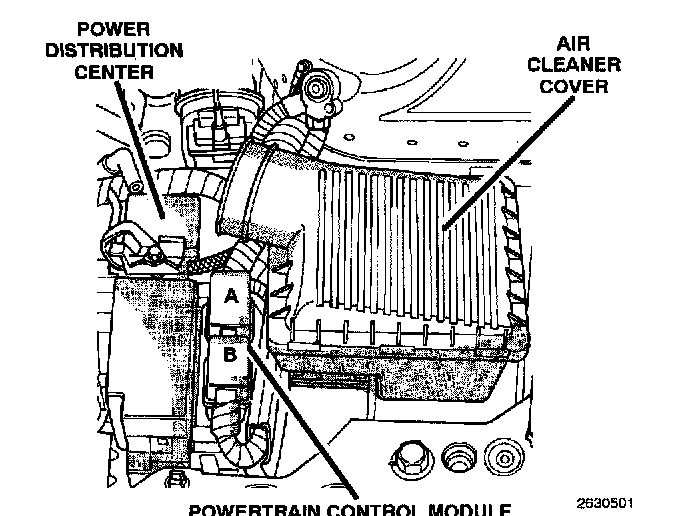

Engine Control Module: Locations
The PCM attaches to a bracket between the air cleaner housing and Power Distribution Center(PDC).
