Throttle Body: Service and Repair

REMOVAL
1. Remove the negative battery cable.
2. Remove air tube from throttle body.

Fig.20 Throttle Cable Attachment To Throttle Body:

3. Remove throttle cable from the throttle body lever (Fig. 20).

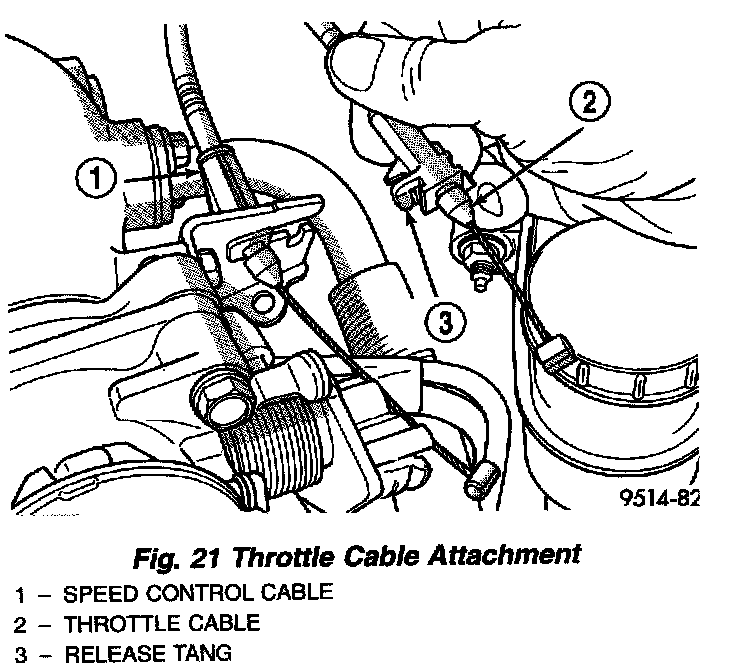

Fig.21 Throttle Cable Attachment:

4. Push release tang toward dash panel on throttle cable and slide cable out of bracket (Fig. 21).
5. Slide speed control cable out of bracket, if equipped (Fig. 21).
6. Remove EVAP purge hose from nipple on throttle body.
7. Remove connectors from throttle position sensor and idle air control motor.
8. Remove bolts holding throttle body to intake manifold. Remove throttle body.

INSTALLATION
1. Attach electrical connectors to idle air control motor and throttle position sensor.
2. Install new gasket.
3. Position throttle body on intake and install mounting bolts. Tighten bolts to 28.25 Nm (250 in. lbs.).
4. Install speed control cable (if equipped) and throttle cable into throttle lever.
5. Install cables into cable bracket.
6. Install air inlet tube. Tighten clamps to 3 ± 0.5 Nm (25 ± 5 in. lbs.) torque.
7. Install the negative battery cable.
