Resonator: Service and Repair

REMOVAL

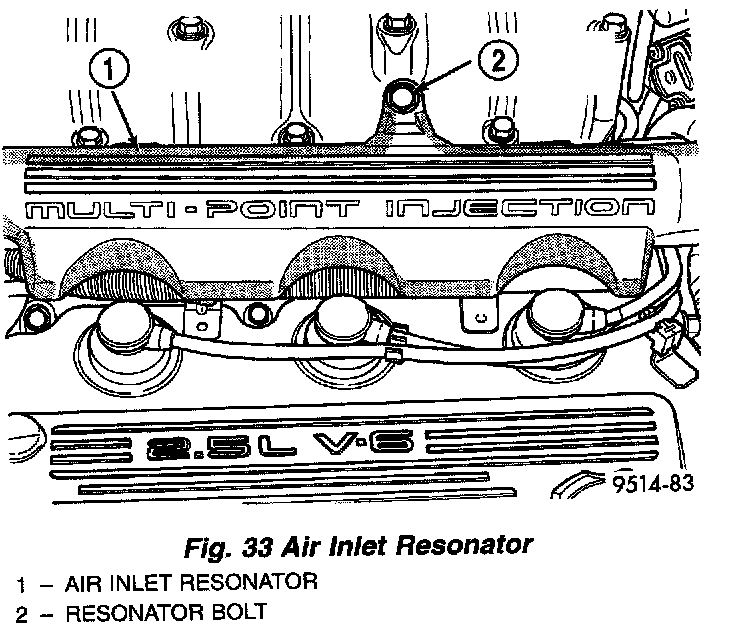

Fig.33 Air Inlet Resonator:

1. Remove bolt holding resonator to intake manifold (Fig. 33).
2. Loosen clamp holding resonator to air inlet tube. Remove resonator.

INSTALLATION
1. Install air inlet tube to resonator.
2. Tighten clamp to 3 ± 0.5 Nm (25 ± 5 in.lbs) torque
3. Install bolt holding resonator to intake manifold. Tighten to 5 ± 0.5 Nm (45 ± 5 in. lbs.) torque.
