Fuel Filler Neck: Service and Repair

REMOVAL
1. Loosen fuel filler tube cap.

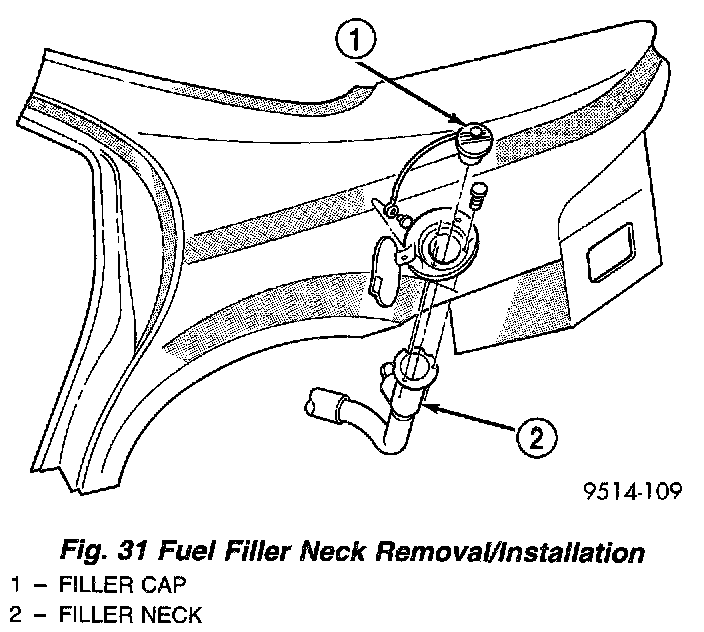

Fig.31 Fuel Filler Neck Removal/Installation:

2. Remove fuel filler neck screws (Fig. 31).
3. Disconnect Ground strap from body.
4. Disconnect fuel filler tube hose from fuel tank neck. Remove fuel filler tube assembly.

INSTALLATION
1. Install fuel filler tube. Connect fuel filler tube hose to fuel tank neck.
2. Install fuel filler neck screws (Fig. 31).
3. Install fuel filler tube cap.
