Fuel Injector: Service and Repair

REMOVAL
1. Remove the negative battery cable.
2. Remove fuel rail.

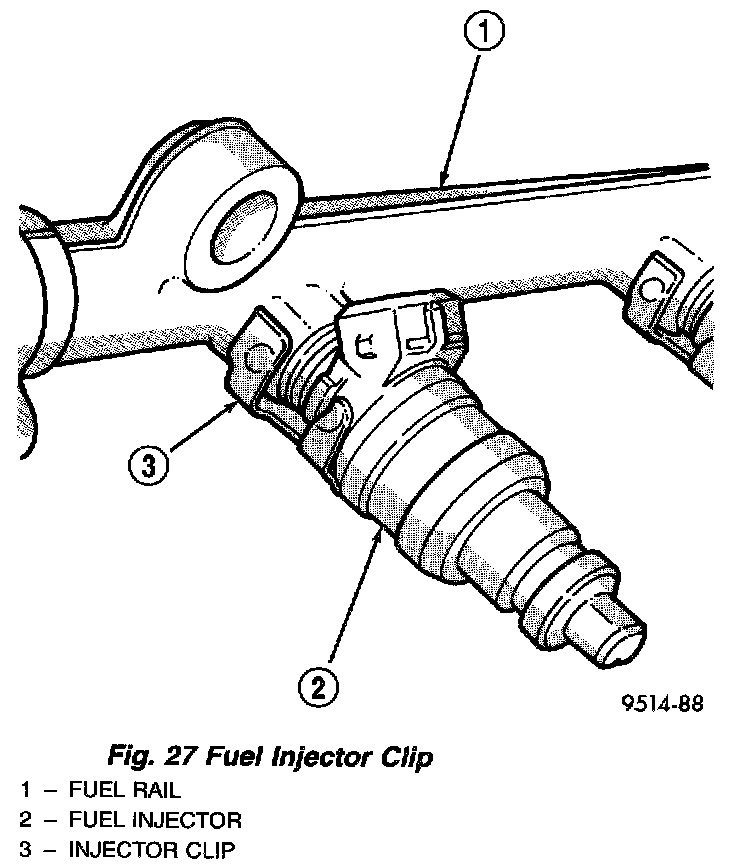

Fig.27 Fuel Injector Clip:

3. Remove fuel injector clip (Fig. 27).
4. Pull injector out of fuel rail. Replace fuel injector O-rings.

INSTALLATION
1. Install injector to fuel rail.
2. Install fuel injector clip.
3. Install fuel rail refer to the Fuel Rail installation .
4. Install the negative battery cable.
5. Use the DRB scan tool ASD Fuel system test to pressurize the the fuel system. Check for leaks.
