Qualifying A No Start Condition

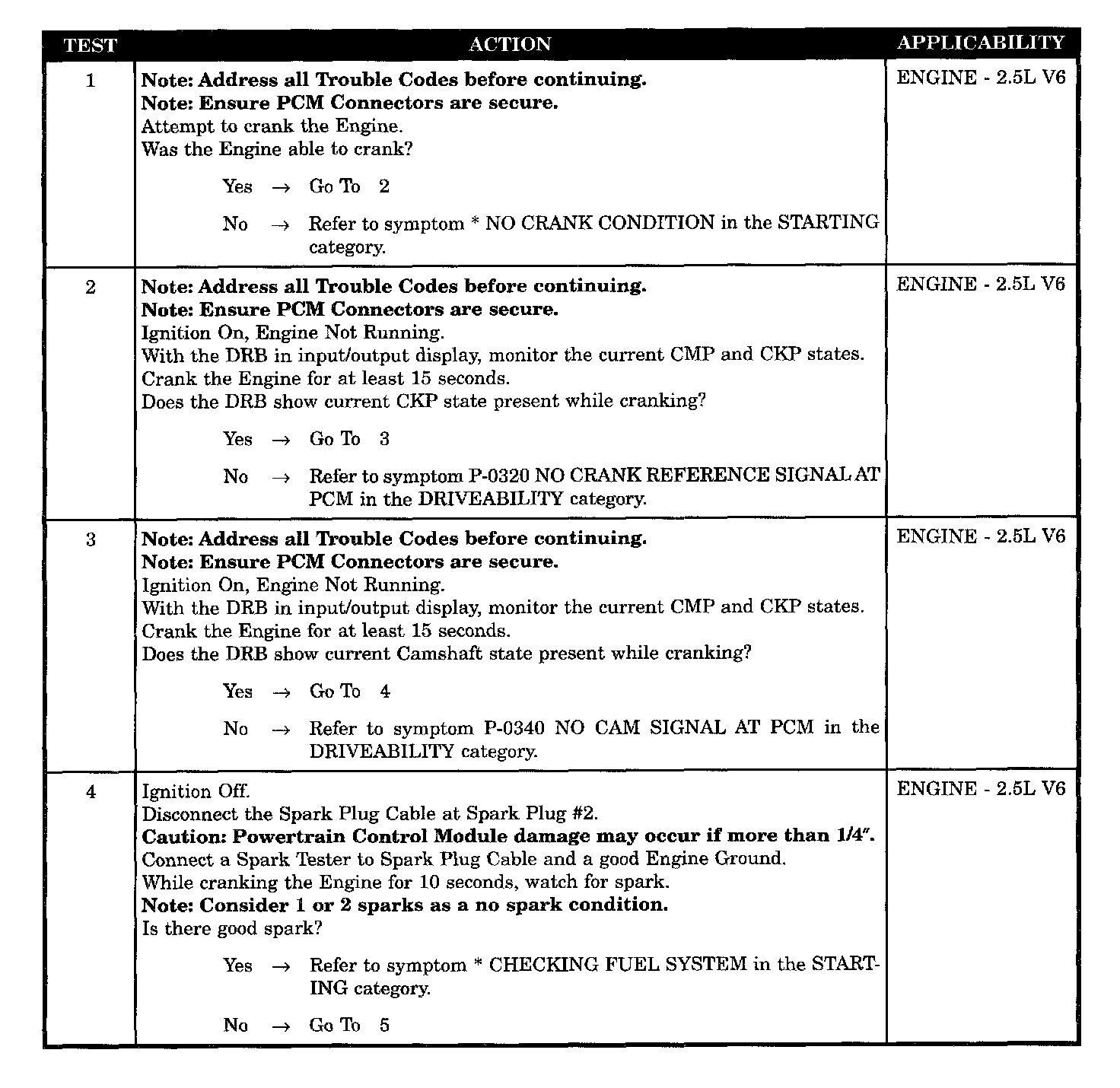

Tests 1 - 4:

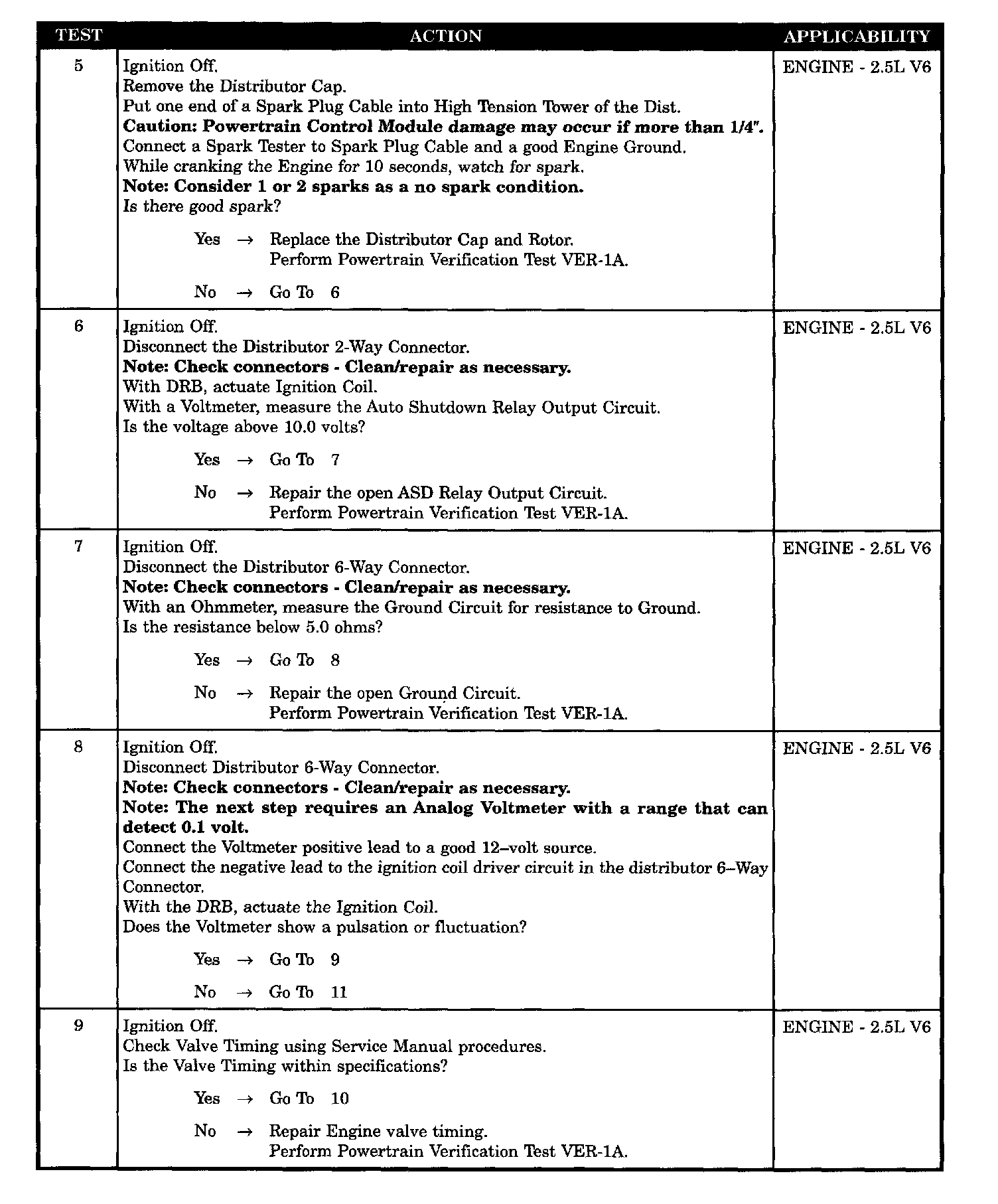

Tests 5 - 9:

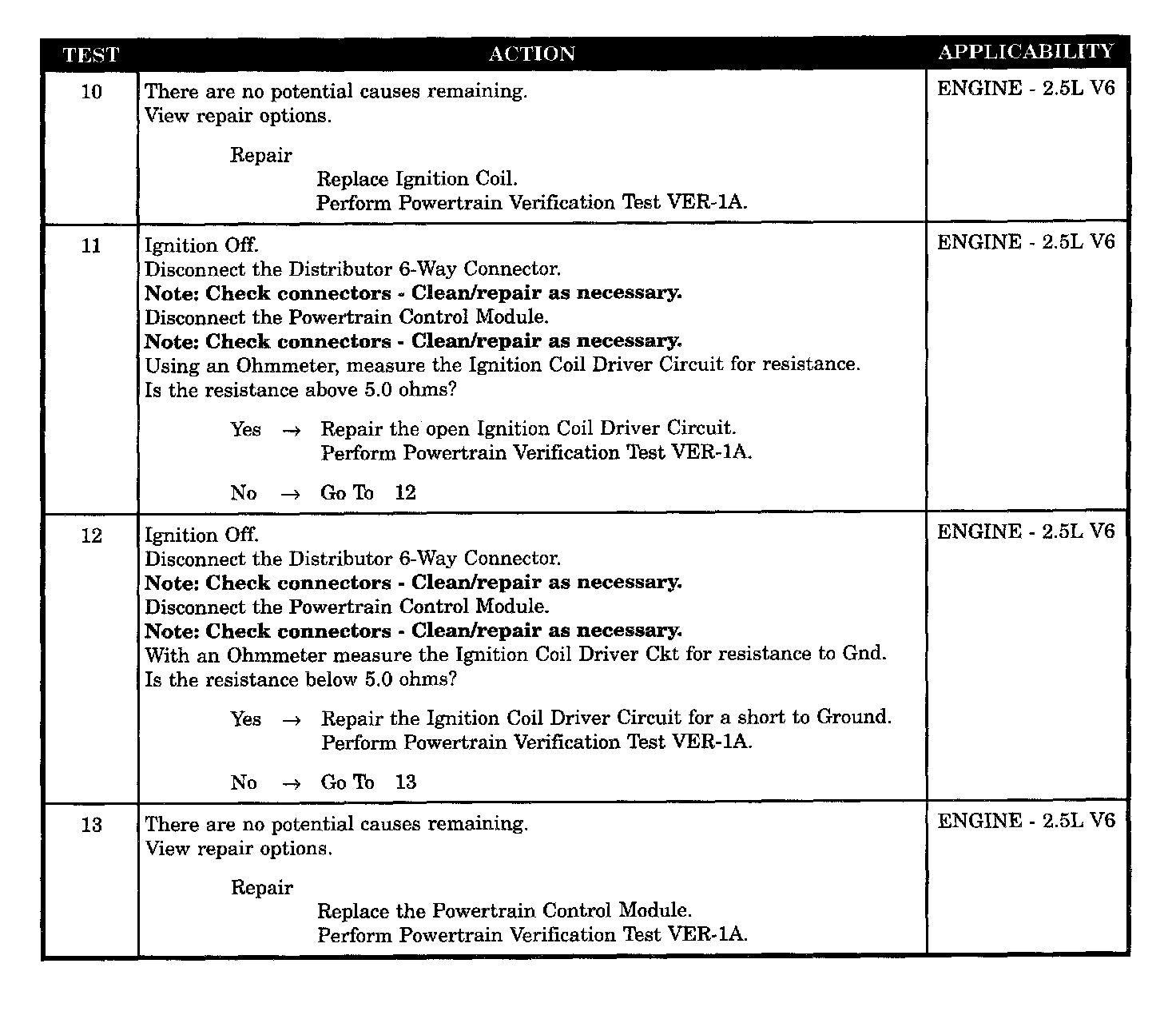

Tests 10 - 13:

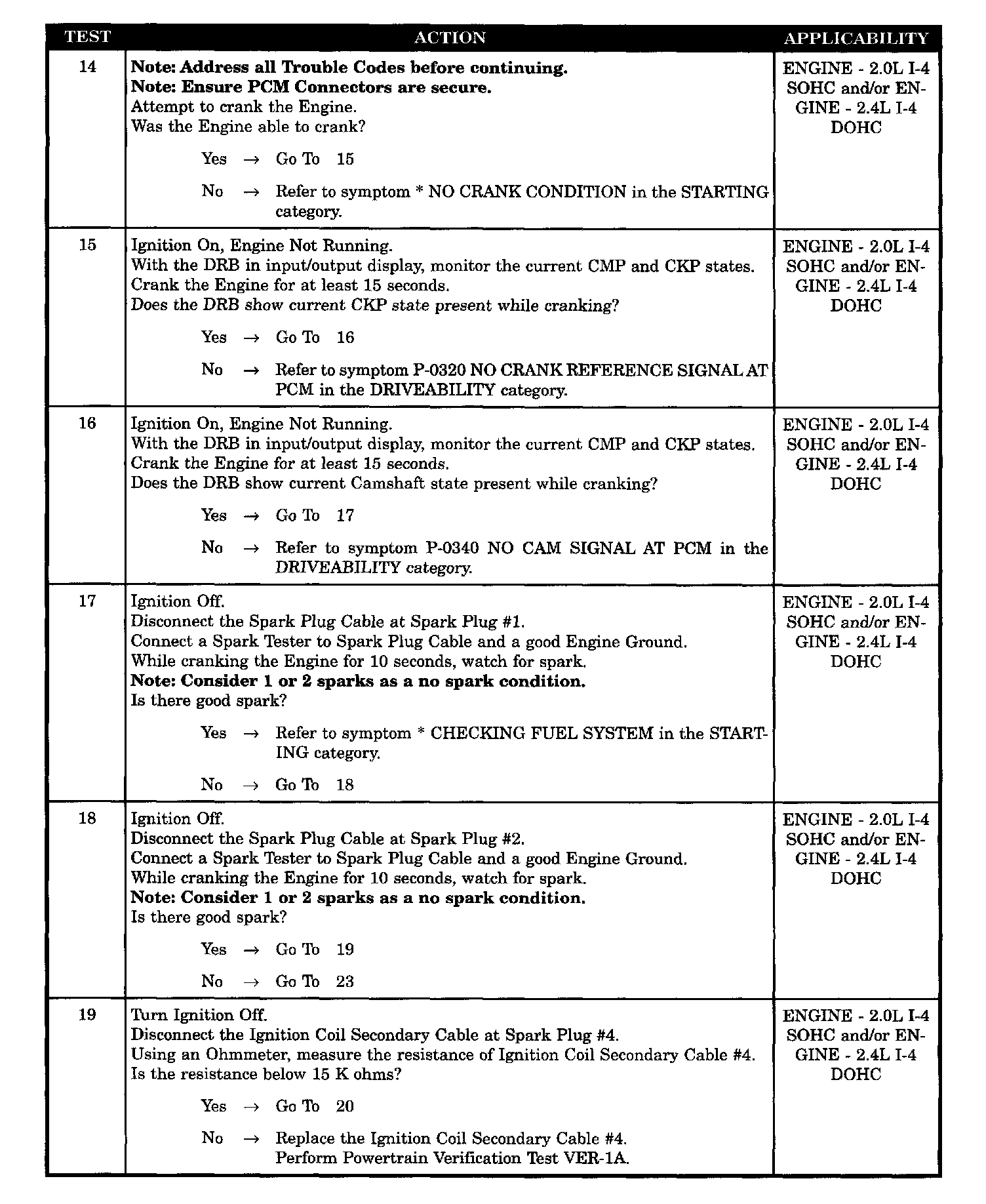

Tests 14 - 19:

Tests 20 - 24:

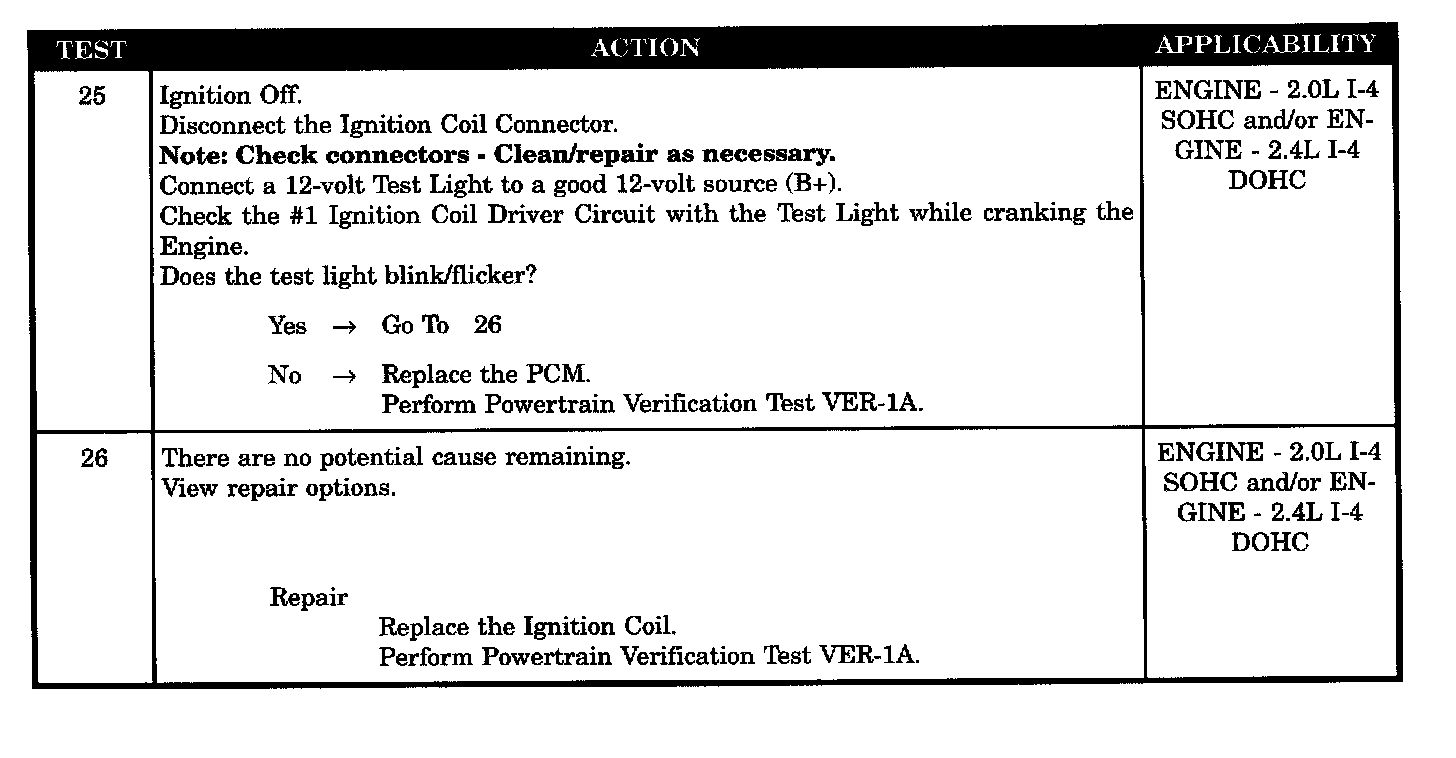

Tests 25 - 26:

SYMPTOM
QUALIFYING A NO START CONDITION

POSSIBLE CAUSES
- ASD relay output circuit open
- Ground circuit open
- Distributor cap and rotor defective
