No Crank Condition

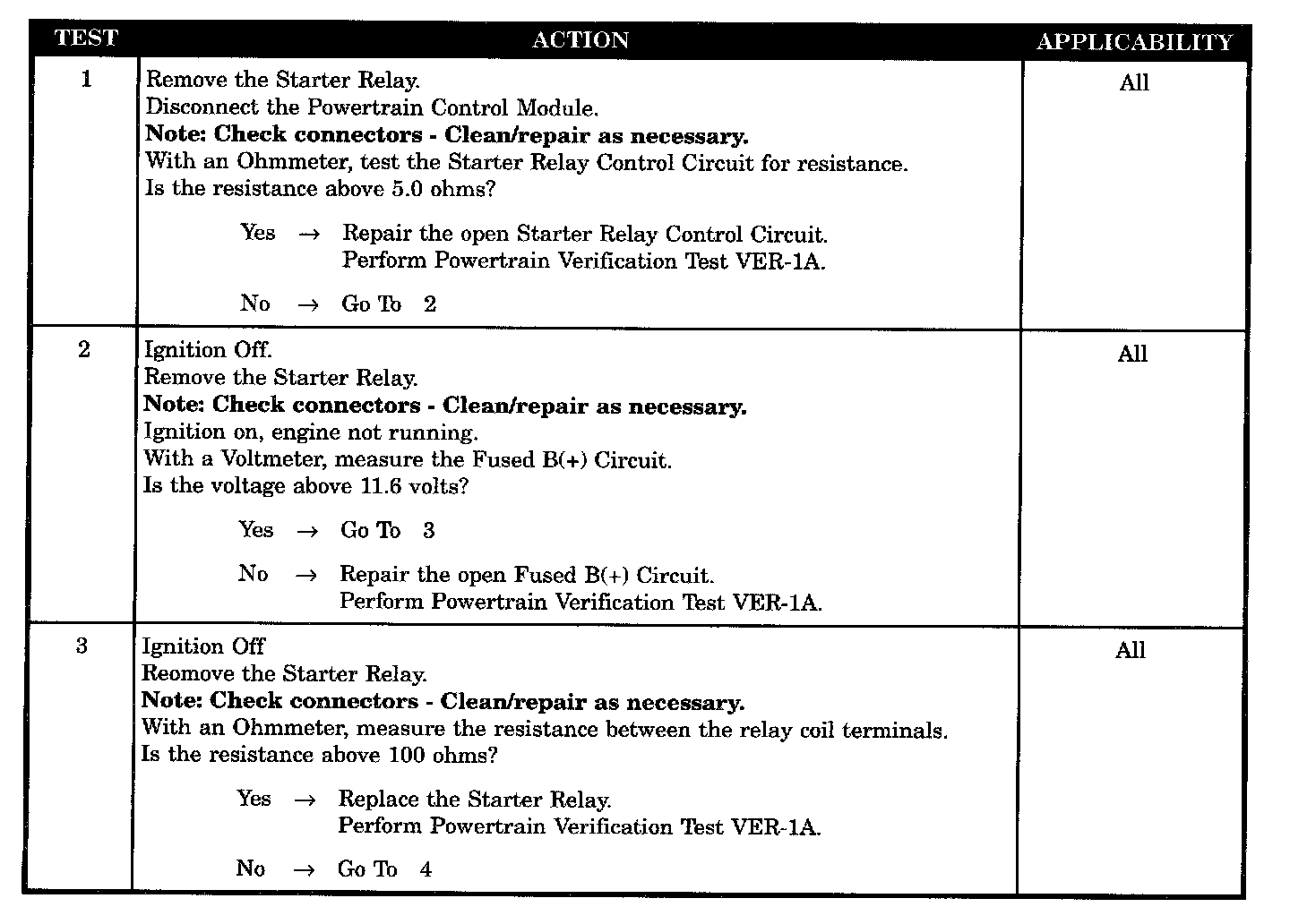

Tests 1 - 3:

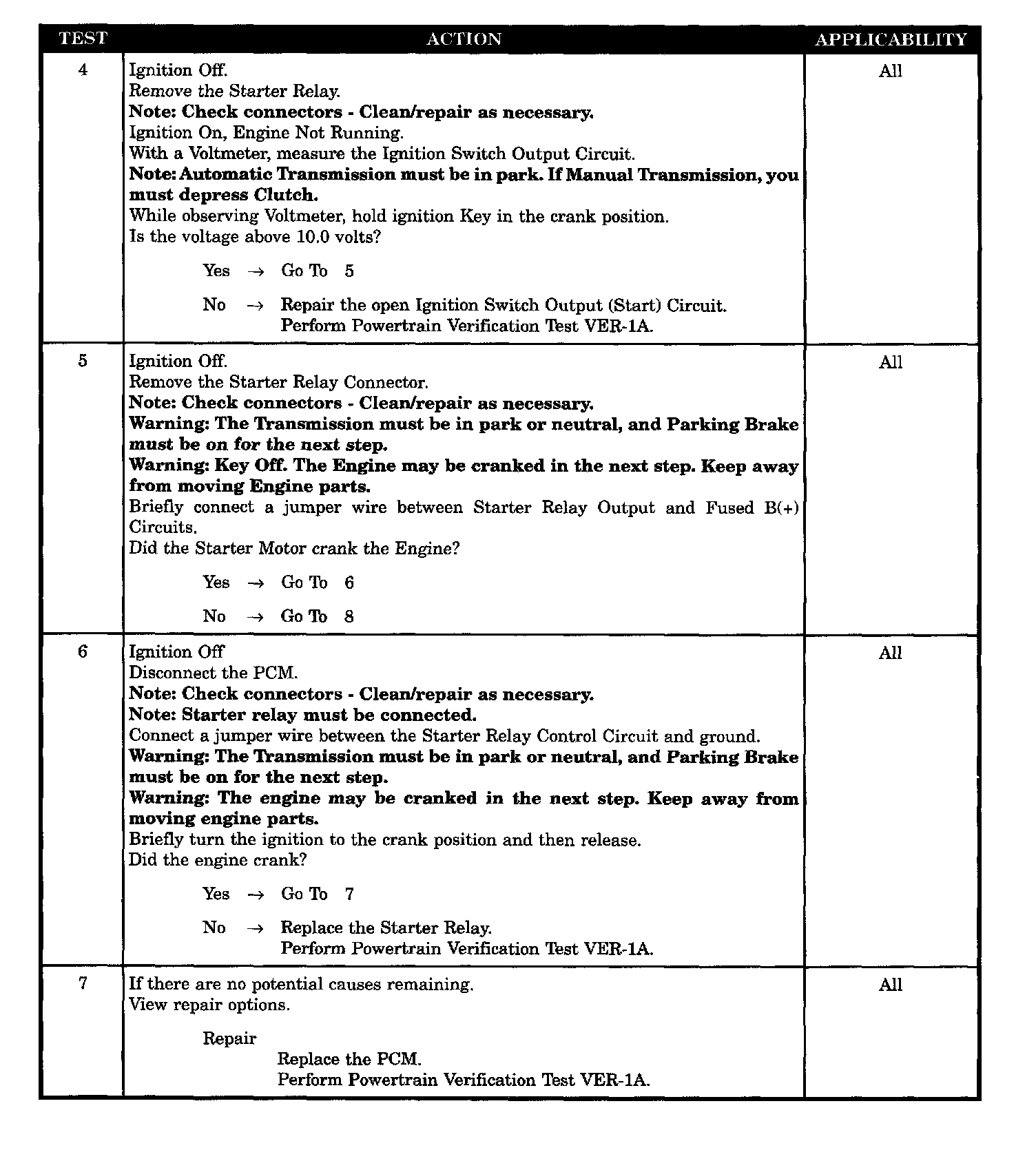

Tests 4 - 7:

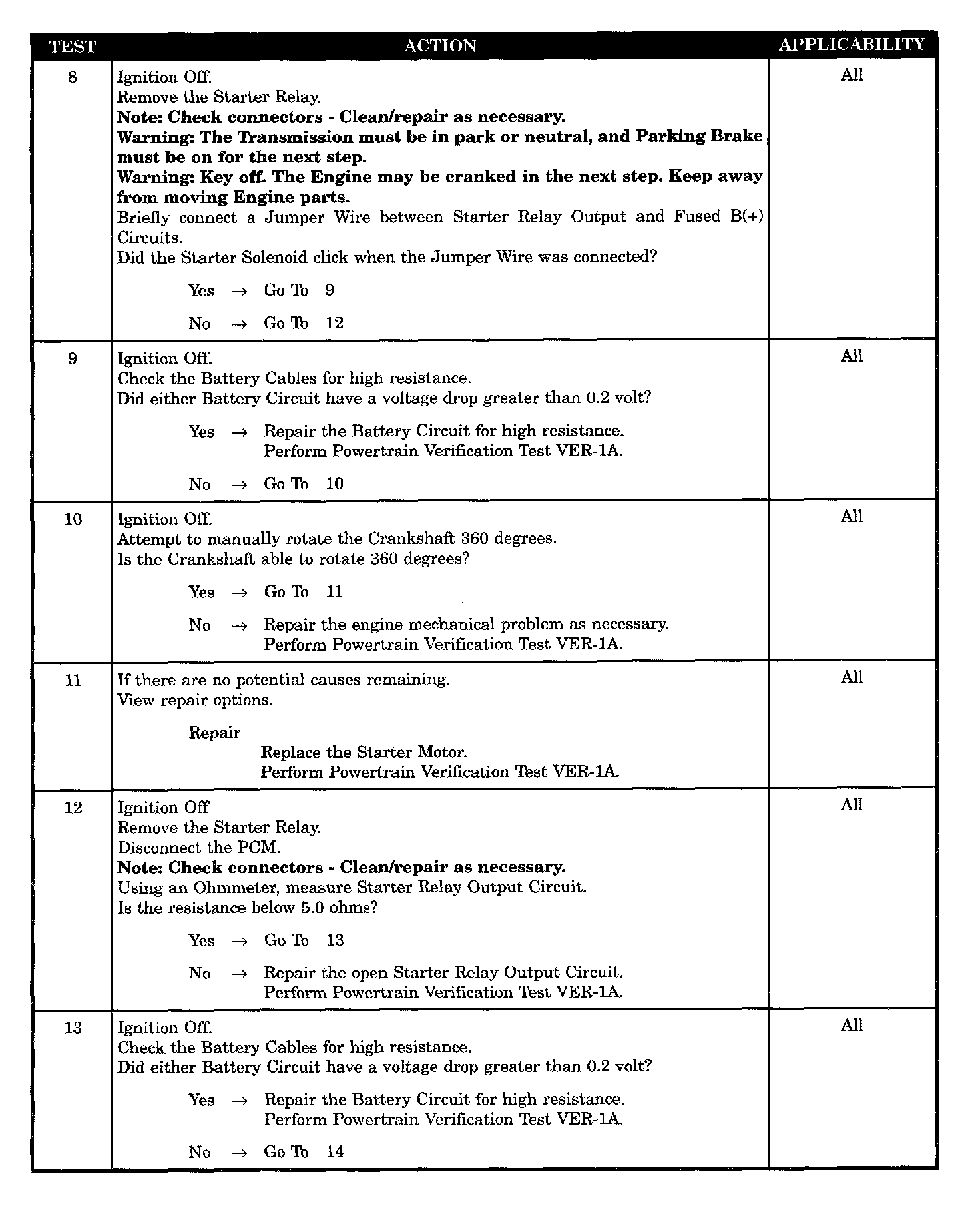

Tests 8 - 13:

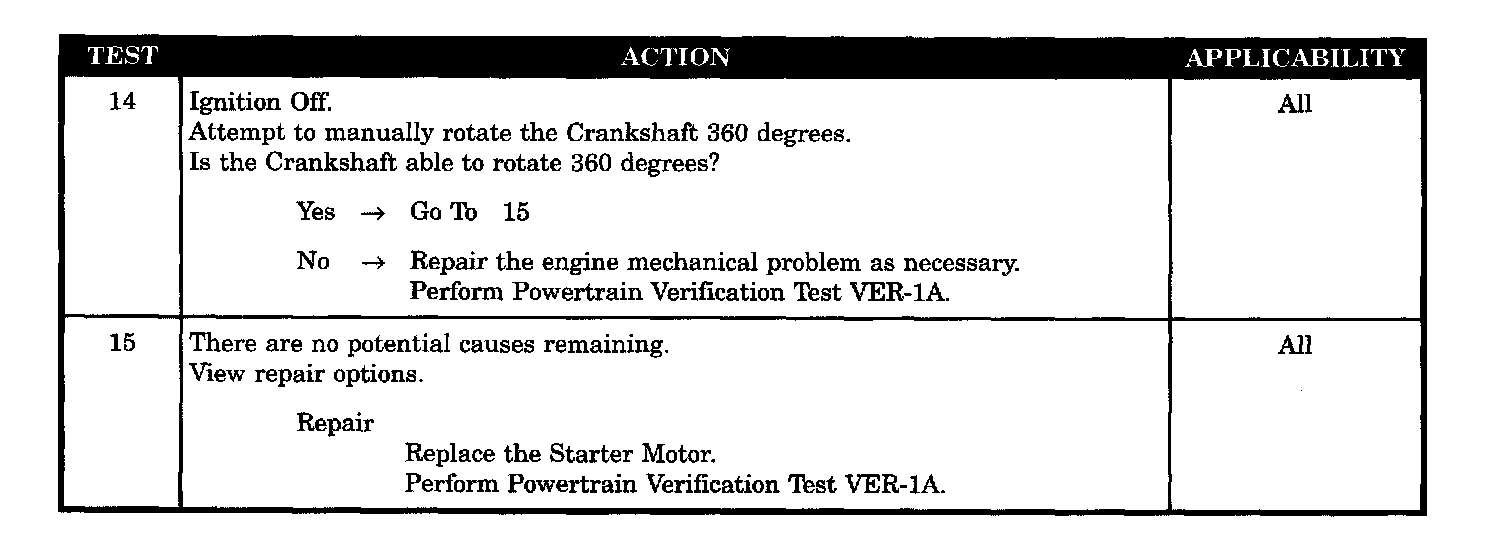

Tests 14 - 15:

SYMPTOM
NO CRANK CONDITION

POSSIBLE CAUSES
- Battery circuit high resistance
- Fused B(+) circuit open
- Ignition switch output circuit open
- Starter relay output circuit open
- Starter relay control circuit open
- Starter relay defective
- Starter defective
- Engine mechanical problem
- PCM defective
