Fuel Pump Inoperative

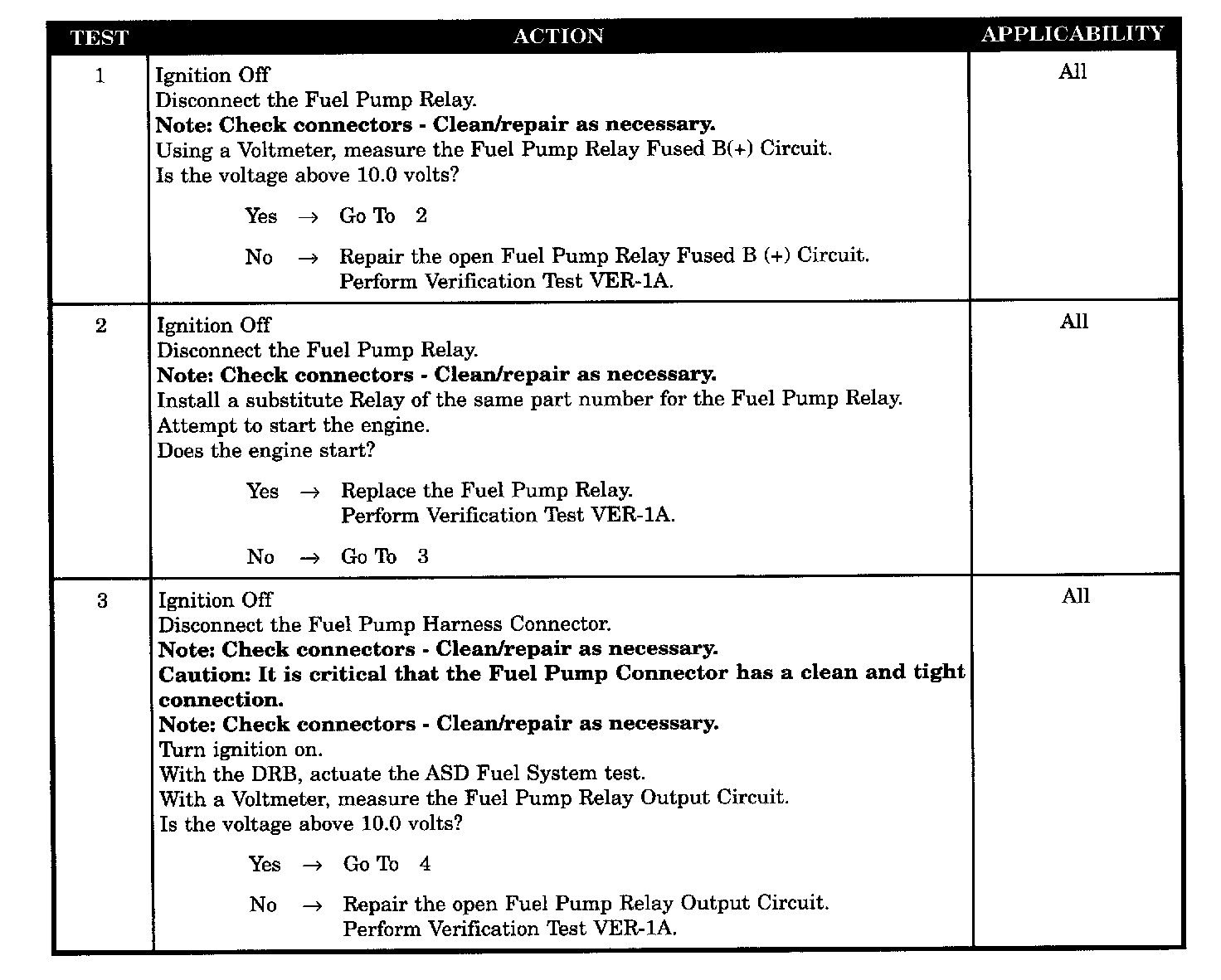

Tests 1 - 3:

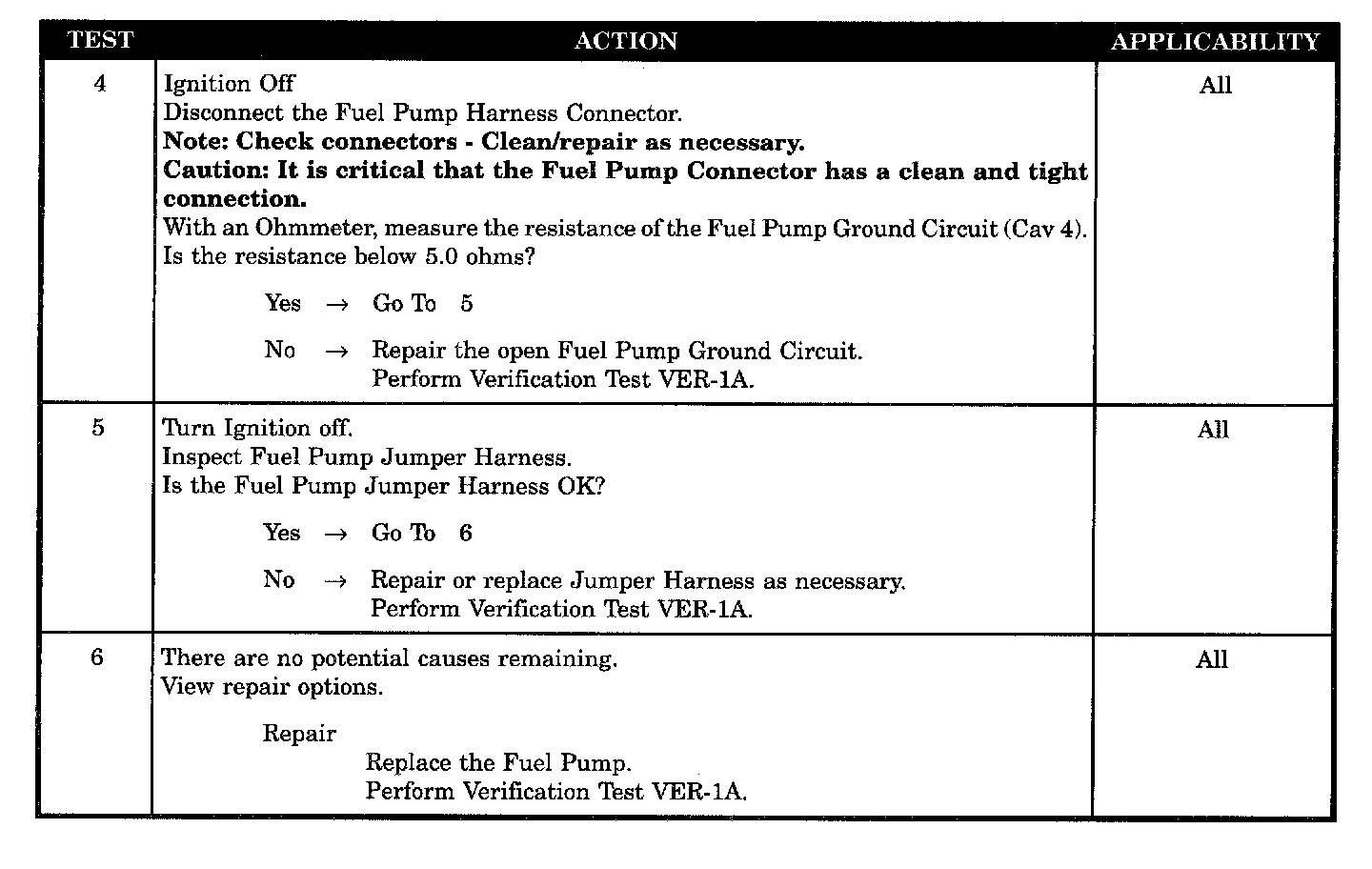

Tests 4 - 6:

SYMPTOM
FUEL PUMP INOPERATIVE

POSSIBLE CAUSES
- Fuel pump relay defective
- Fuel pump defective
- Fuel pump ground circuit open
- Fuel pump relay fused B(+) circuit open
- Fuel pump relay output circuit open
- Jumper harness defective
