Checking the Fuel System

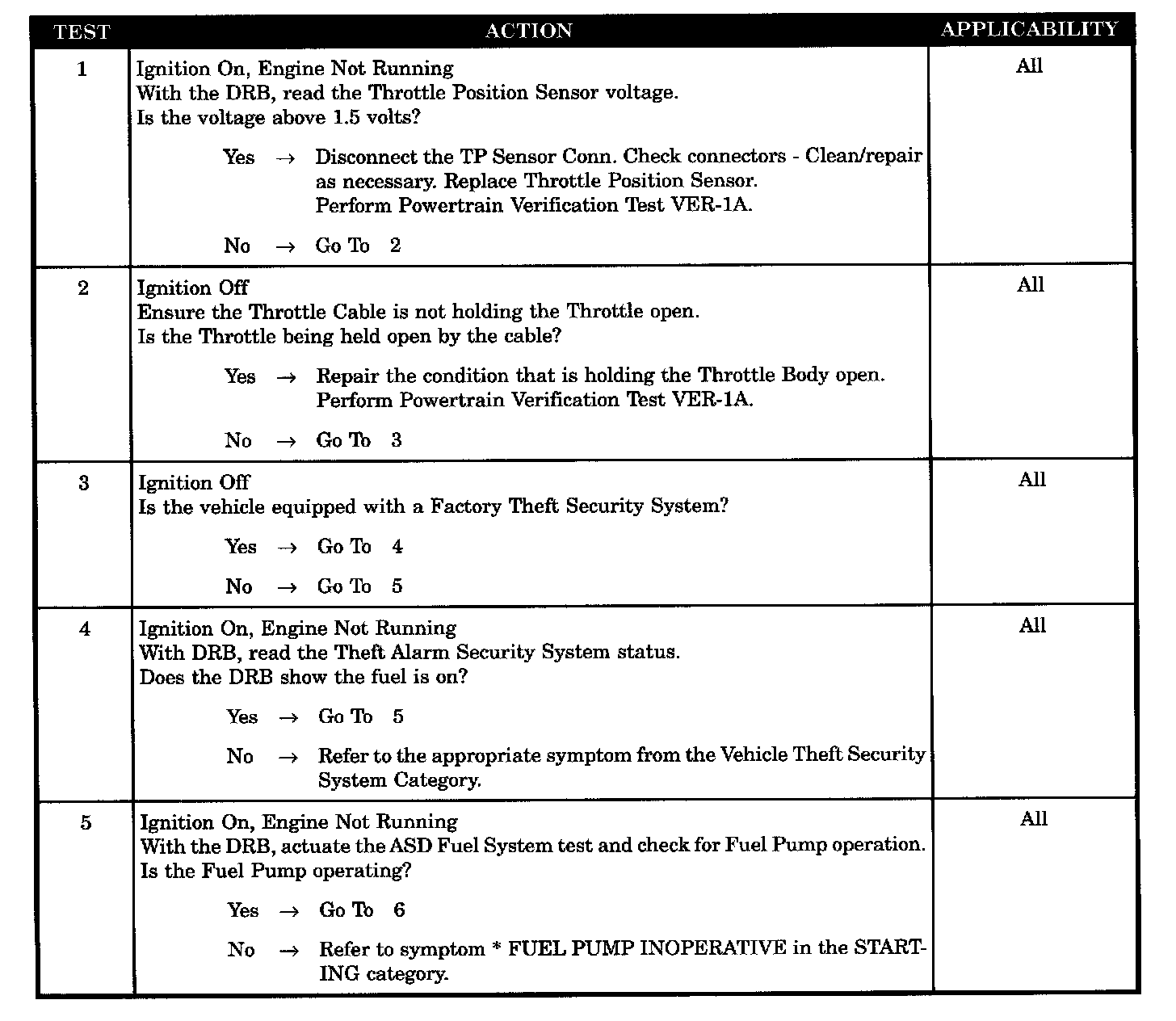

Tests 1 - 5:

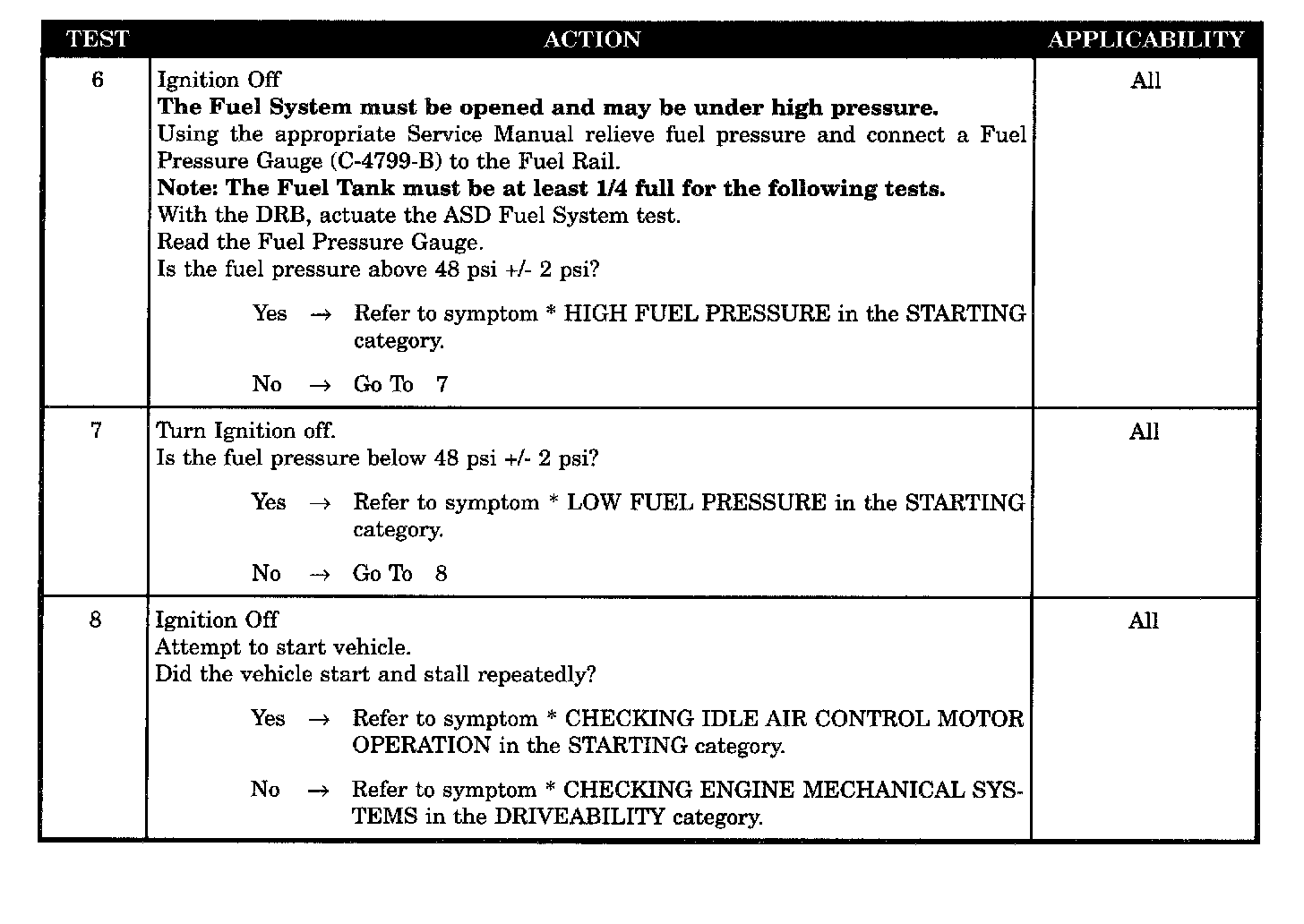

Tests 6 - 8:
SYMPTOM
CHECKING FUEL SYSTEM
POSSIBLE CAUSES
-
Throttle Position Sensor
defective
-
Throttle stuck open
-
Powertrain Control Module defective
