Checking Engine Mechanical Systems (No Start)

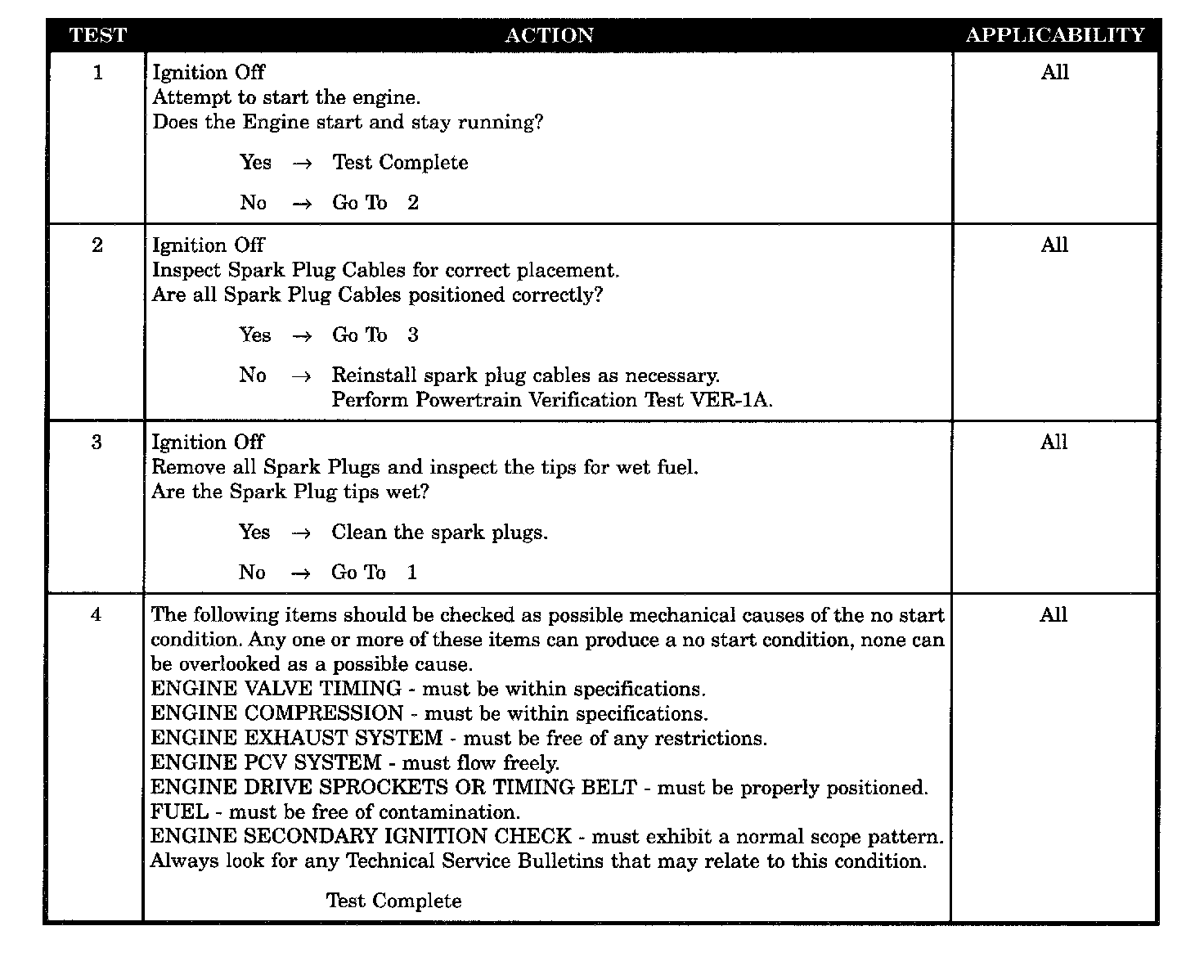

Tests 1 - 4:





SYMPTOM
CHECKING ENGINE MECHANICAL SYSTEMS (NO START)

POSSIBLE CAUSES
- Spark plug cables positioned incorrectly
- Engine compression out of specification
- Spark plugs wet
- Valve timing out of specification
