Checking the PCM Power and Ground Circuits

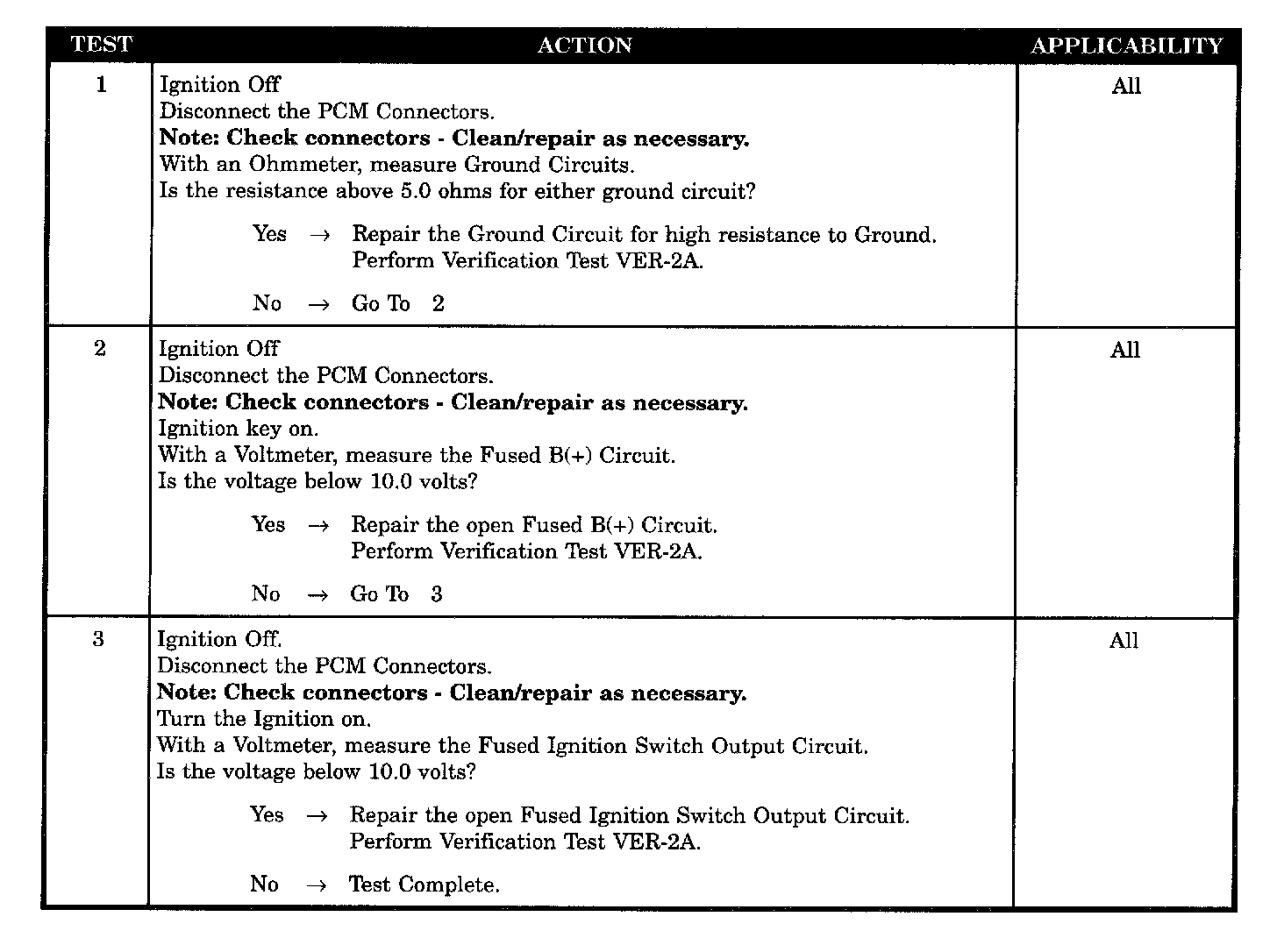

Tests 1 - 3:

SYMPTOM
CHECKING PCM POWER AND GROUND CIRCUIT

POSSIBLE CAUSES
- PCM ground circuit high resistance to ground
- Fused B(+) circuit open
- Fused ignition switch output circuit open
