Checking the MAP Sensor Operation

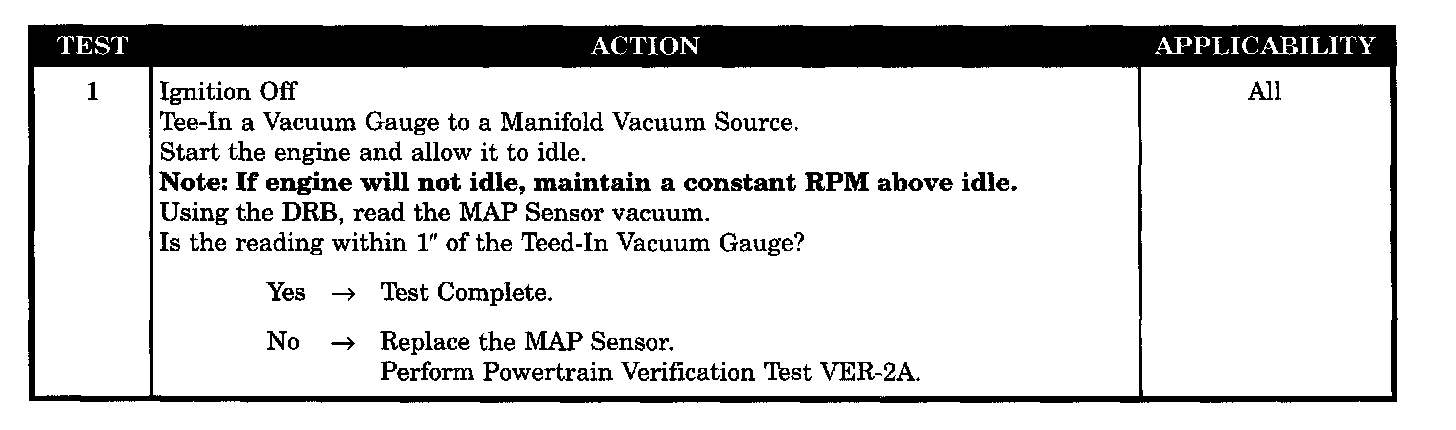

Test 1:





SYMPTOM
CHECKING MAP SENSOR CALIBRATION

POSSIBLE CAUSES
- MAP sensor defective
