Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Checking Secondary Ignition and Timing

Checking Secondary Ignition and Timing

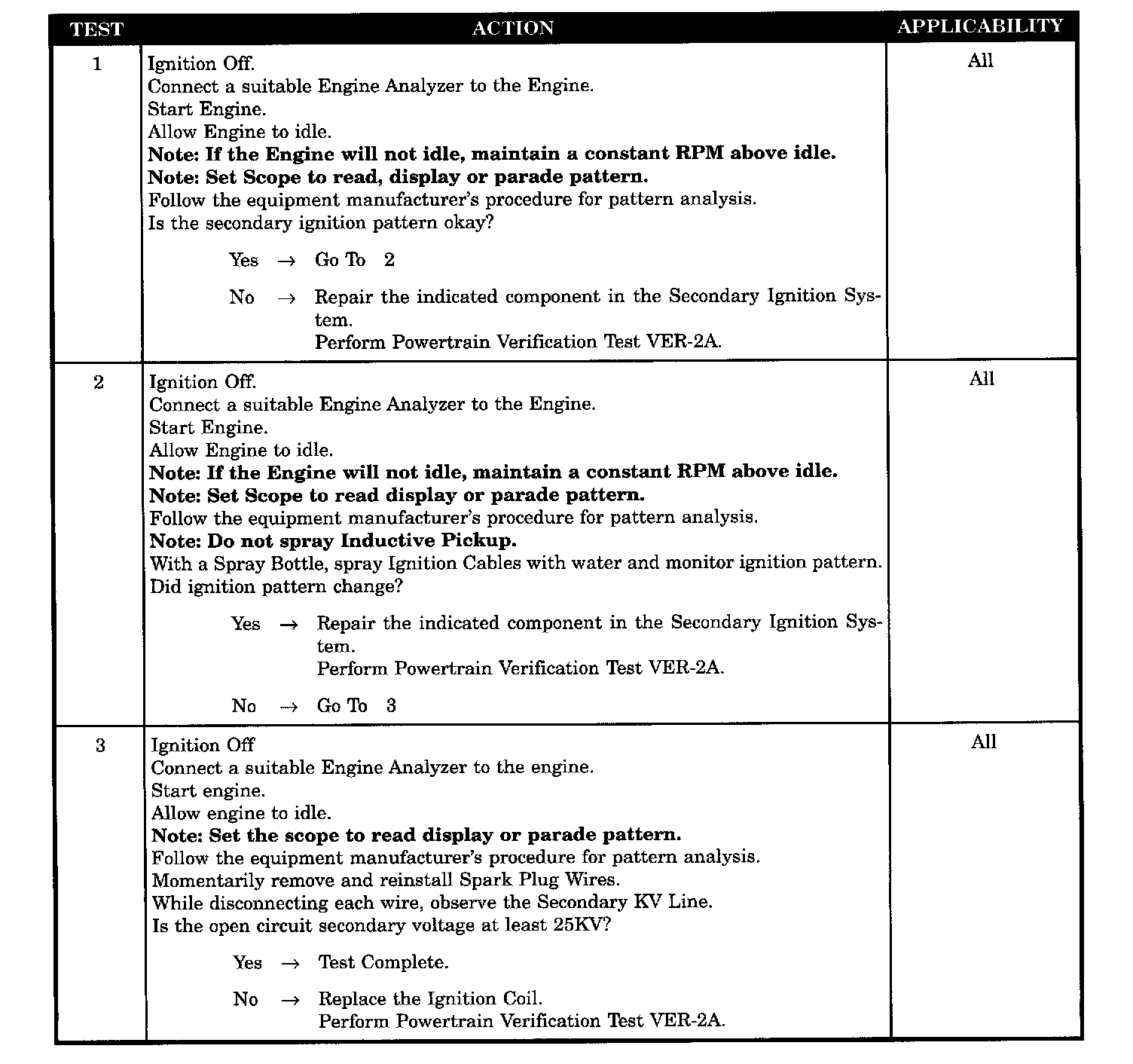

Tests 1 - 3:





SYMPTOM
CHECKING SECONDARY IGNITION AND TIMING

POSSIBLE CAUSES
- Secondary ignition system defective (water test)
- Ignition coil defective
- Secondary ignition system defective
