Checking Oxygen Sensor Switching

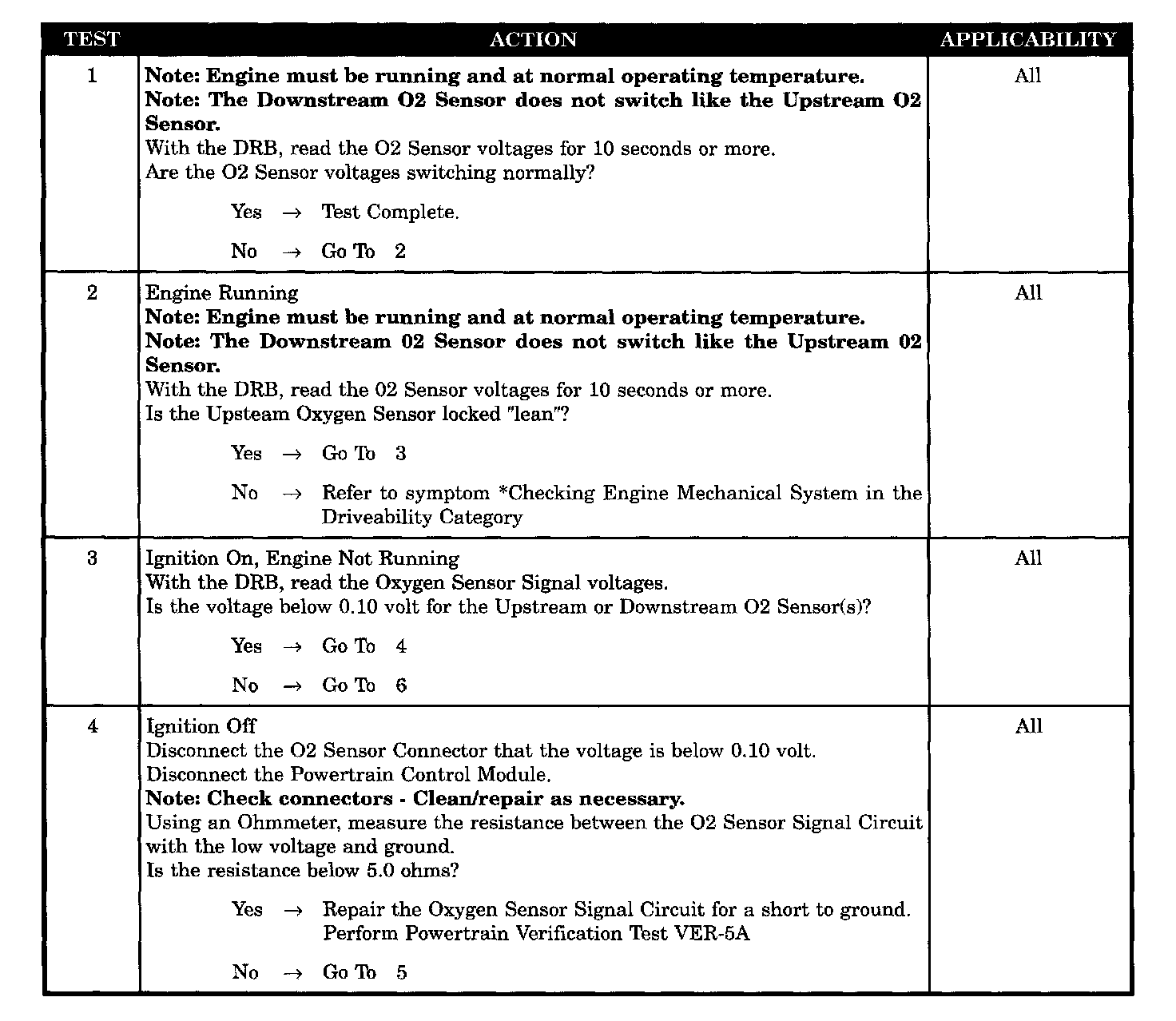

Tests 1 - 4:

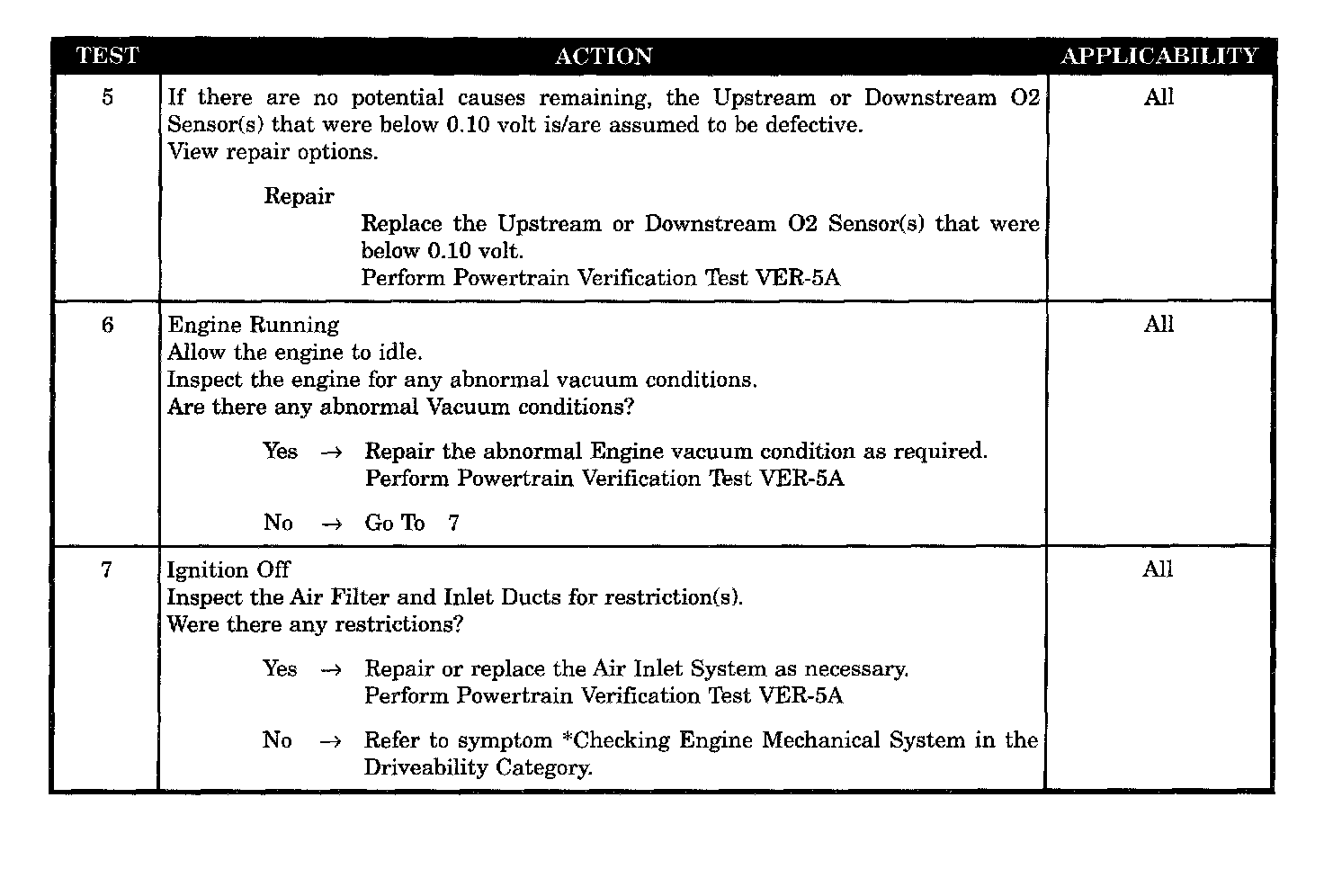

Tests 5 - 7:

SYMPTOM
CHECKING FOR OXYGEN SENSOR SWITCHING

POSSIBLE CAUSES
- Oxygen sensor defective
- Oxygen sensor signal circuit shorted to ground
- Air filter or inlet ducts restrictions
- Engine vacuum abnormal
