Checking Evaporative Emission System

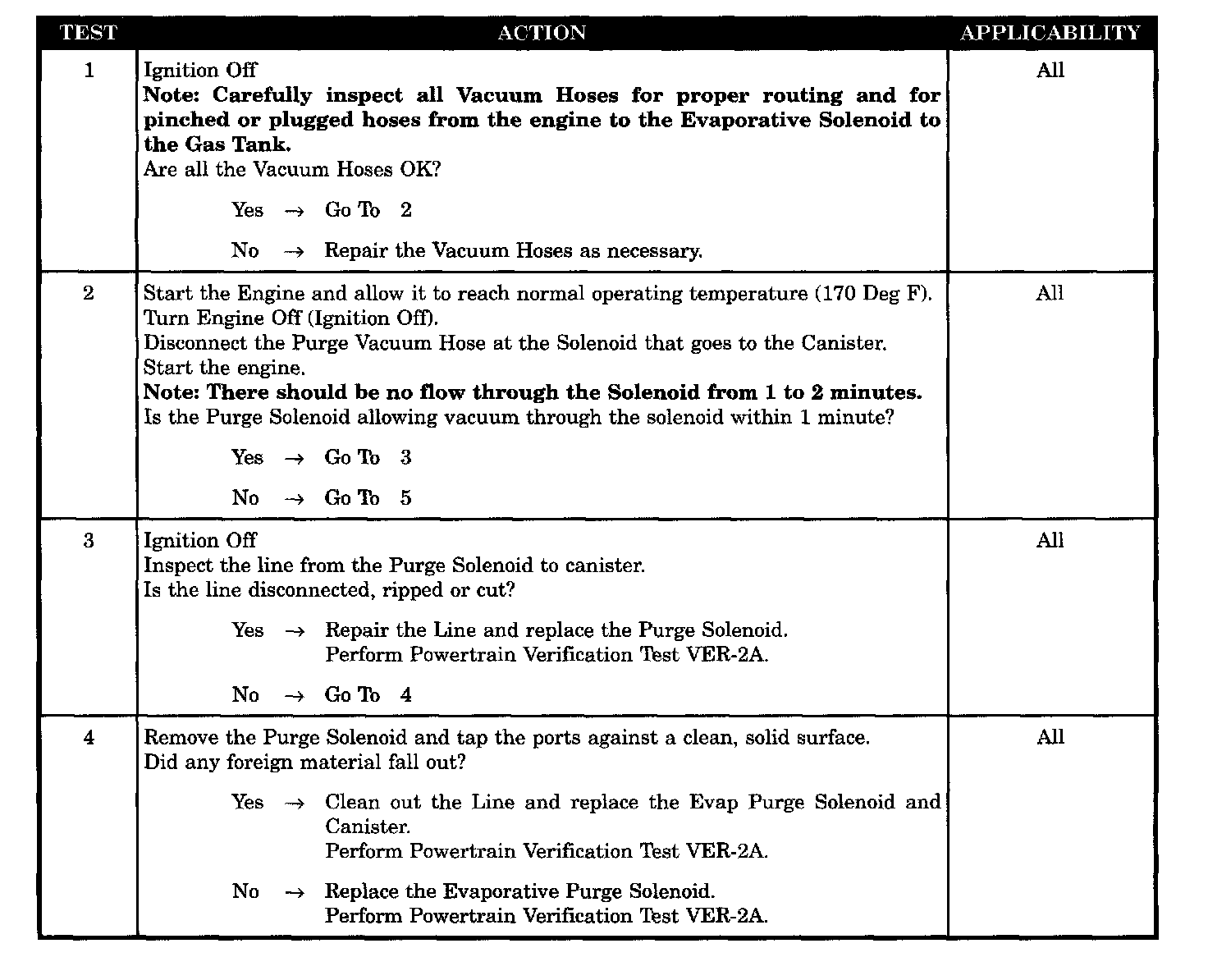

Tests 1 - 4:

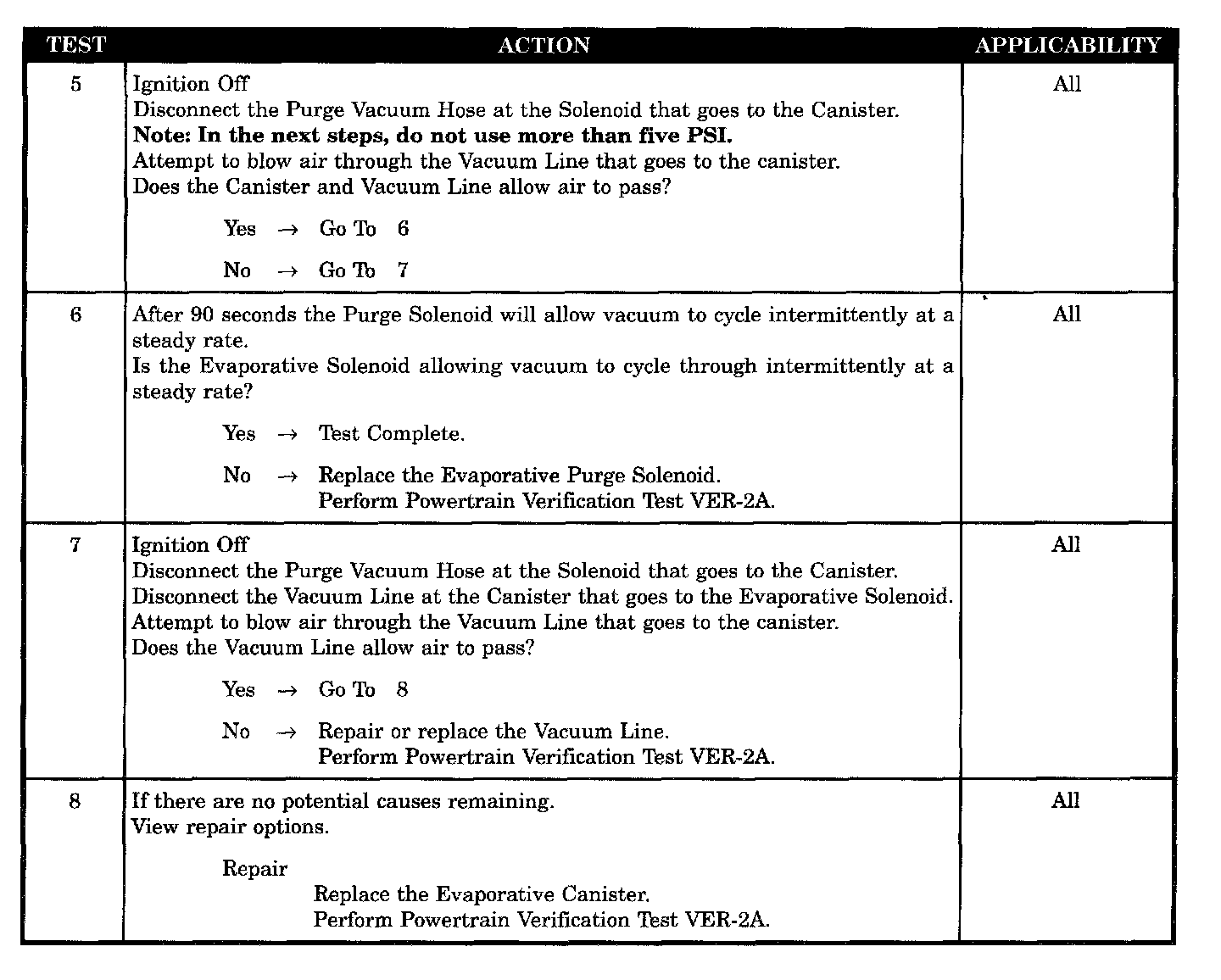

Tests 5 - 8:

SYMPTOM
CHECKING EVAP EMISSION SYSTEM

POSSIBLE CAUSES
- Evaporative canister defective
- Vacuum line restriction
- Vacuum line restriction (B)
- Evaporative purge solenoid defective (1)
- Evaporative purge solenoid defective (2)
- Vacuum line observable defect
- Vacuum hoses observable defect
