Chime Inoperative At All Times

Test 1 - 4:

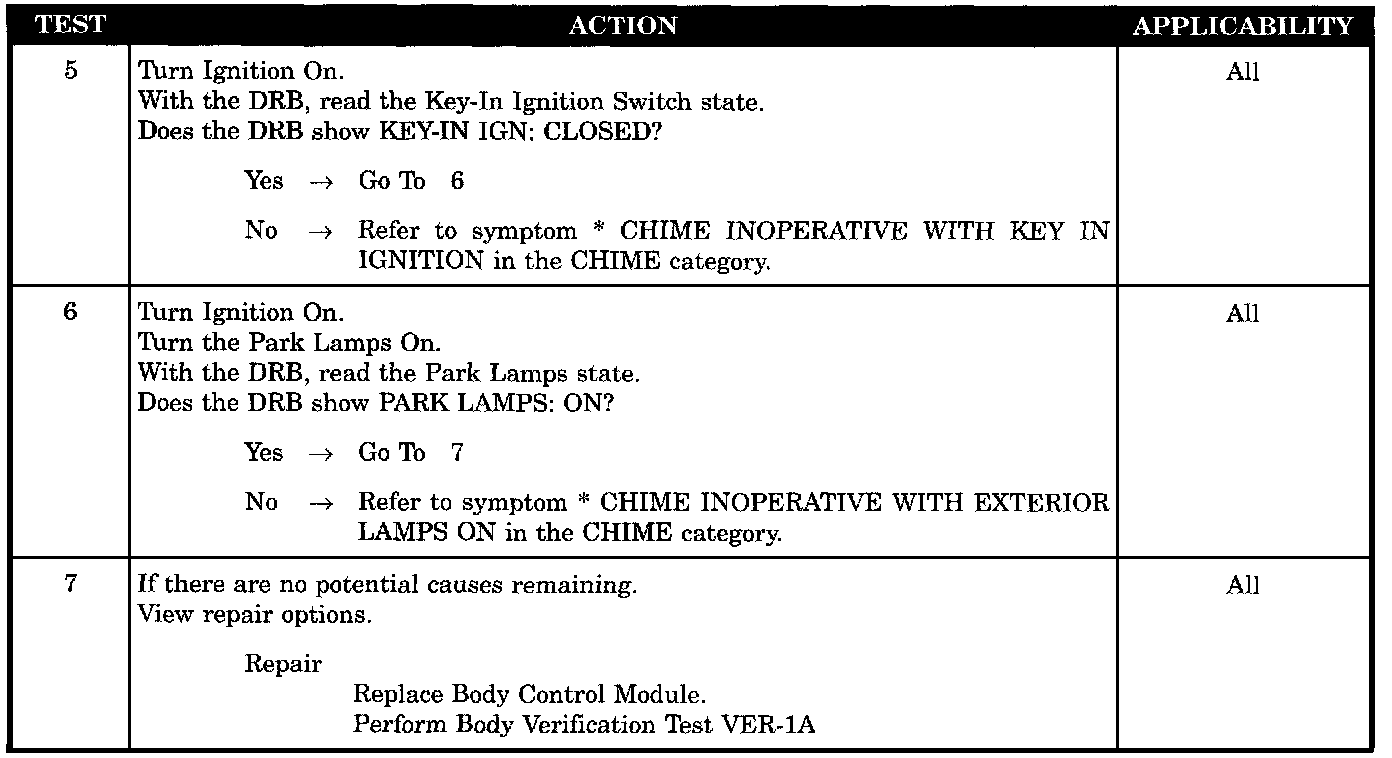

Test 5 - 7:

SYMPTOM
CHIME INOPERATIVE AT ALL TIMES

POSSIBLE CAUSES
- BCM chime default defective
- BCM fails chime test
- No response/ CCD BUS failure (BCM)
