Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

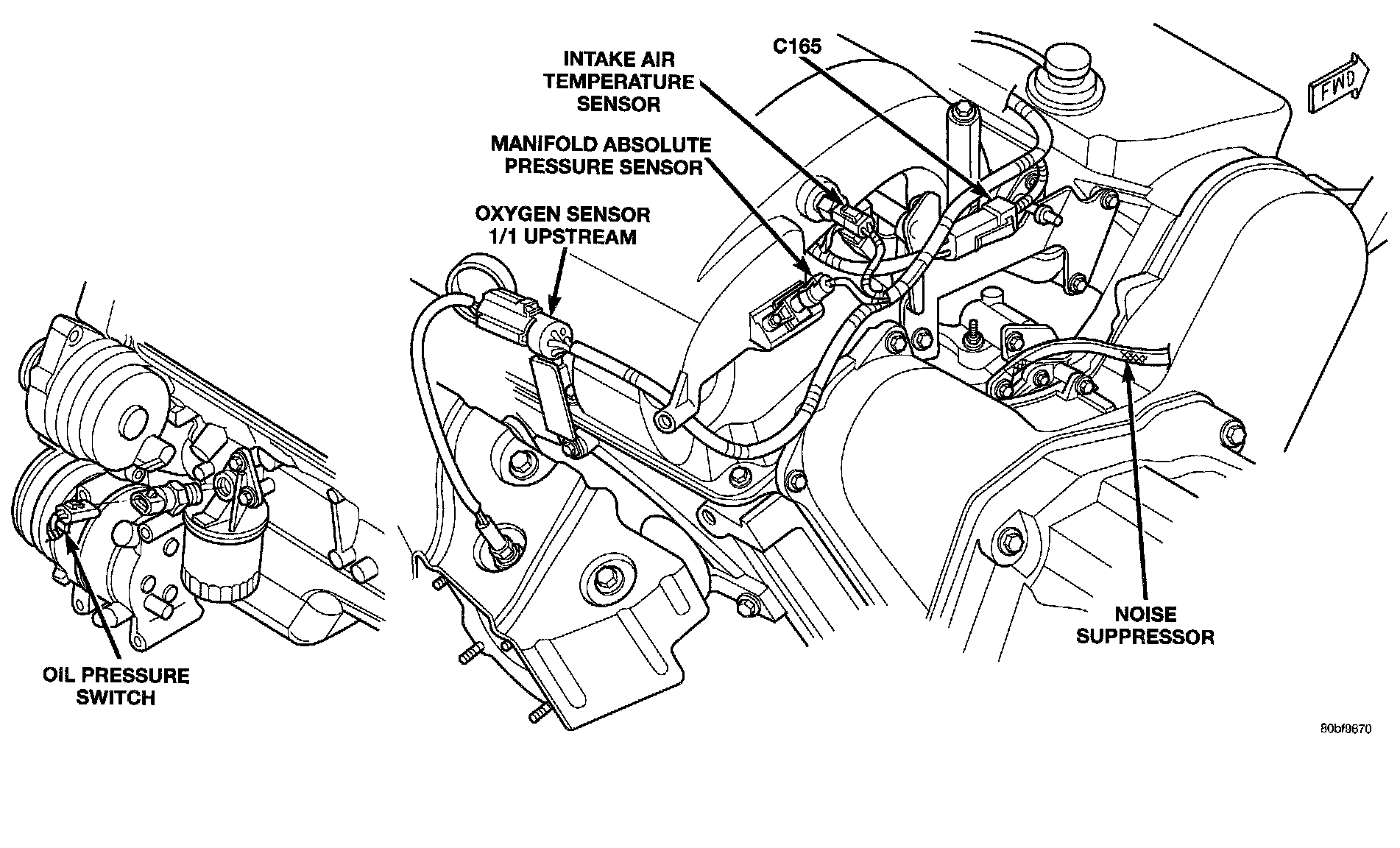

Figure 11
Figure 11
Engine Right Side:
