Horn Test

1. Disconnect wire connector at horn.

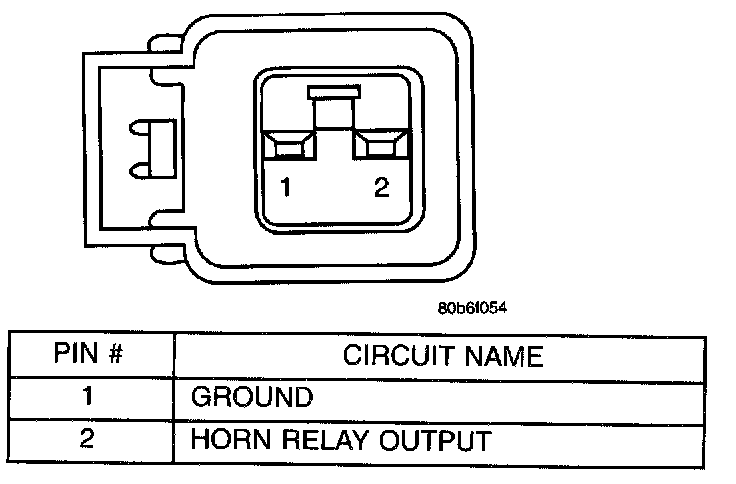

Horn Connector Pin Call - Out:

2. Using a voltmeter, connect one lead to ground terminal and the other lead to the horn relay output wire terminal.
3. Depress the horn switch, battery voltage should be present.
4. If no voltage, refer to Horn Does Not Sound. If voltage is OK, go to Step 5.
5. Using ohmmeter, test ground wire for continuity to ground.
6. If no ground repair as necessary.
7. If wires test OK and horn does not sound, replace horn.
