Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Horn System Test
Horn System Test
CAUTION:
Continuous sounding of horns will cause
horn relay
to fail.

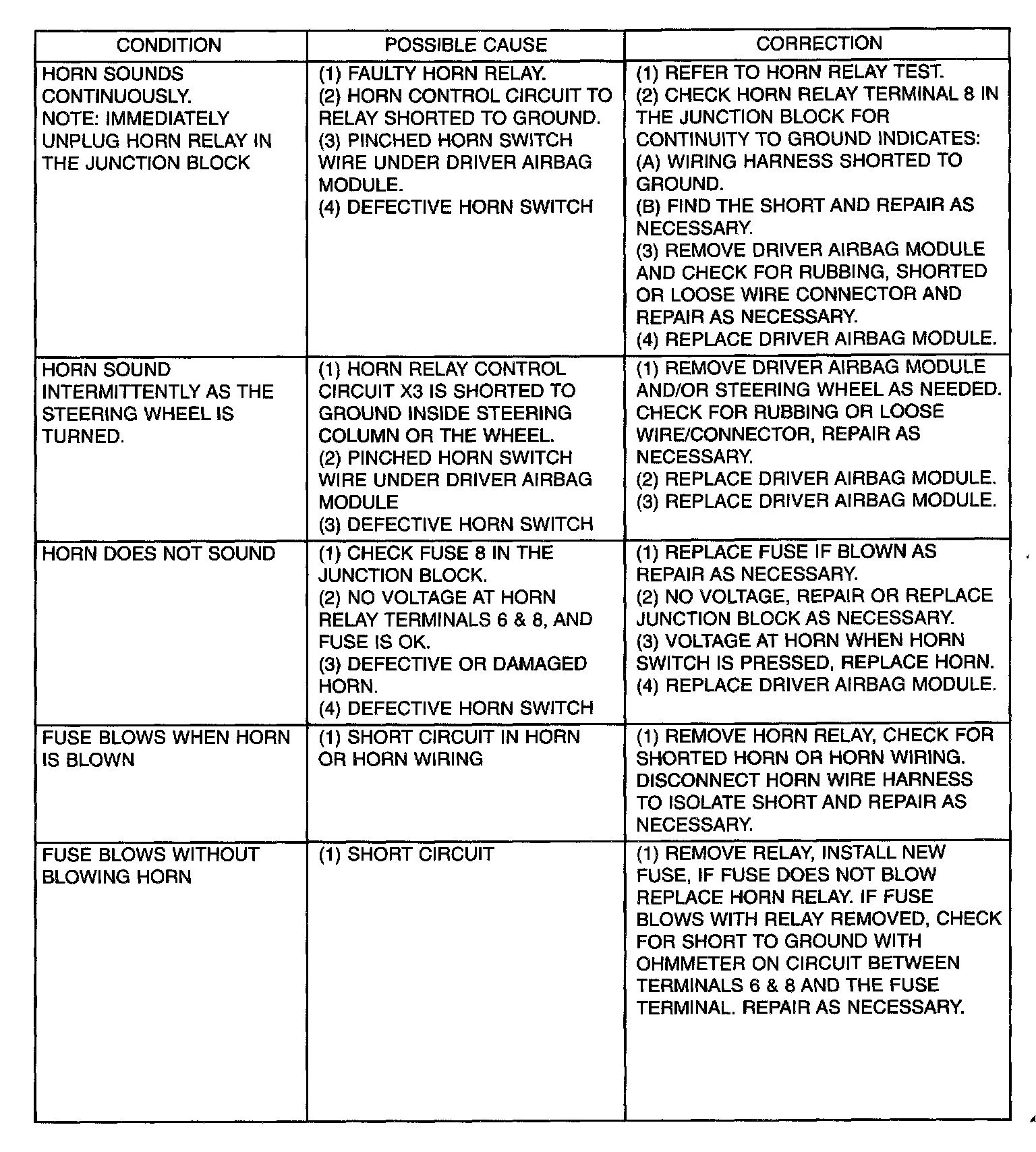

Horn System Test:
Check fuse 8 in the Junction Block, and refer to
Horn
System Test table.
