Horns Replacement

REMOVAL
1. Disconnect and isolate the battery negative remote cable.
2. Hoist and support front vehicle on safety stands.
3. The horns are located behind the front fascia on the right front frame rail. Remove the splash shield as necessary for access.
4. Disconnect the wire connector from the horn.

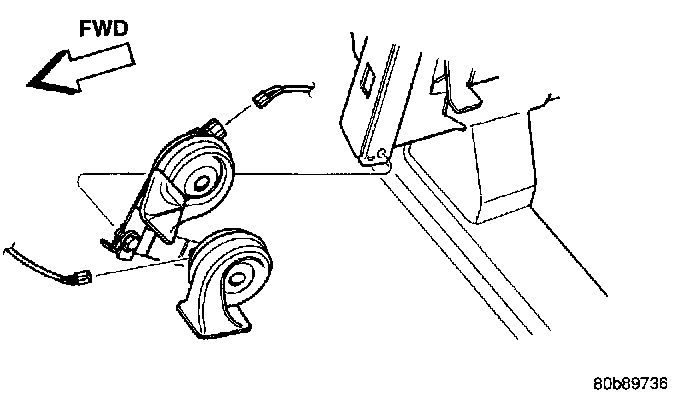

Horn Location:

5. Remove mount bracket attaching bolt from the front frame rail. Do not remove horn from mounting bracket.
6. Remove horn from vehicle.

INSTALLATION
For installation, reverse the above procedures.
