Fog/Driving Lamp: Service and Repair

Fog Lamp:

REMOVAL
1. Raise vehicle with suitable lifting device.
2. Disconnect wire connector from fog lamp bulb.
3. Remove nuts attaching fog lamp to front fascia.

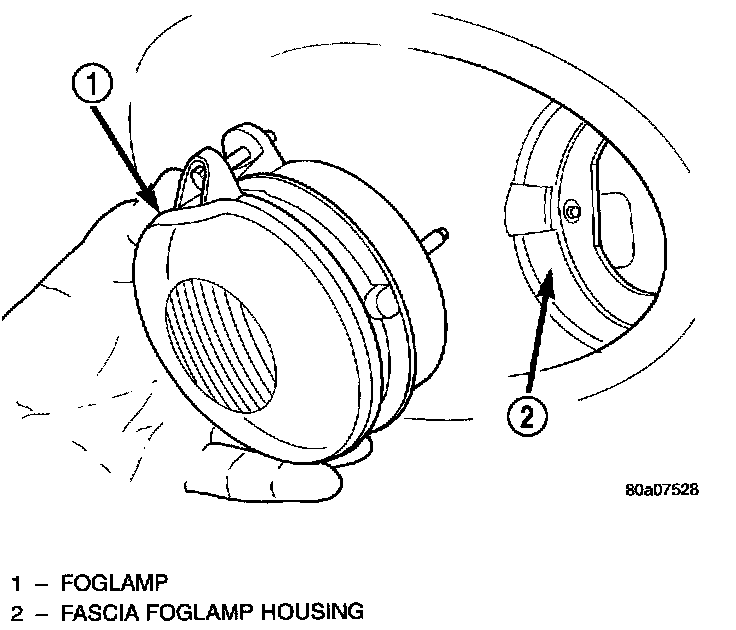

4. Remove fog lamp from front fascia.

INSTALLATION
1. Position fog lamp in front fascia.
2. Install nuts attaching fog lamp to front fascia.
3. Connect wire connector to fog lamp bulb.
