Floor Console Courtesy Lamp Bulb Replacement

REMOVAL

Floor Console Courtesy Lamp:

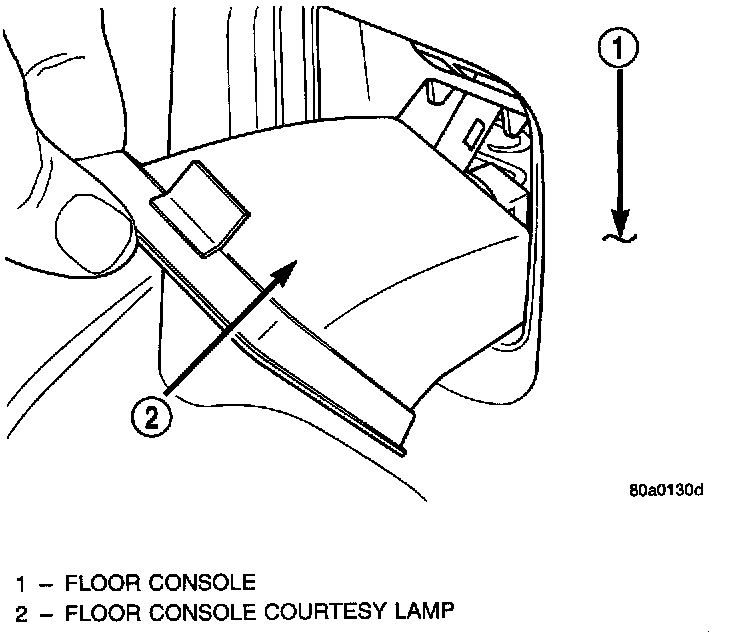

1. Using a small, flat bladed tool inserted into top edge of courtesy lamp, remove courtesy lamp from floor console.

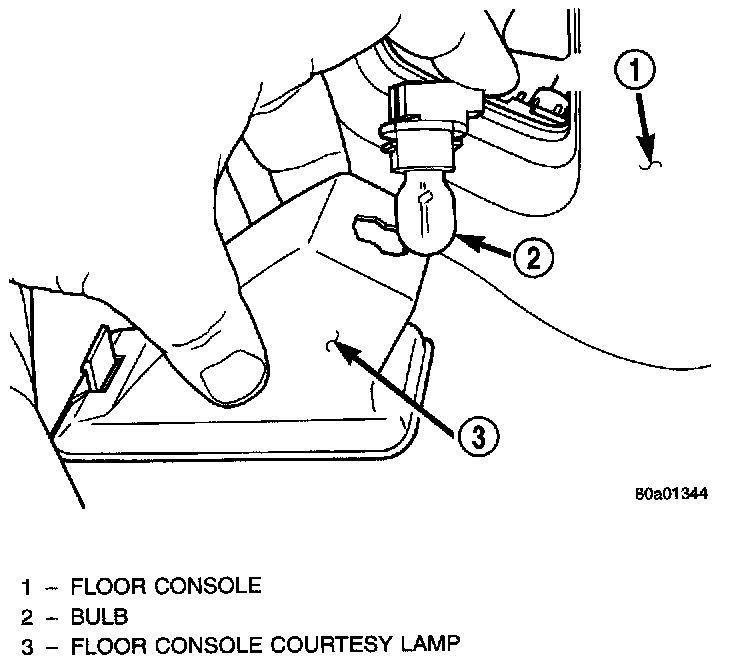

2. Rotate bulb socket counterclockwise one quarter turn.
3. Pull bulb socket from courtesy lamp.

Floor Console Courtesy Lamp Bulb:

4. Pull bulb from bulb socket.

INSTALLATION
1. Push bulb into bulb socket.
2. Push bulb socket into courtesy lamp.
3. Rotate bulb socket clockwise one quarter turn.
4. Position lower edge of courtesy lamp to floor console.
5. Snap courtesy lamp into floor console.
