Speedometer/Tach/Odometer/Trans Range Indicator Replacement

The Instrument Cluster must be removed to service the speedometer-tachometer-odometer and transmission range indicator.

REMOVAL

Mask/Lens Retaining Screws:

1. Remove mask/lens retaining screws and remove mask/lens.

Back Cover Retaining Screws:

2. Disconnect odometer / transmission range indicator connector from the printed circuit board.

Speedometer/Tachometer:

3. Remove screws attaching speedometer / tachometer to housing and remove.

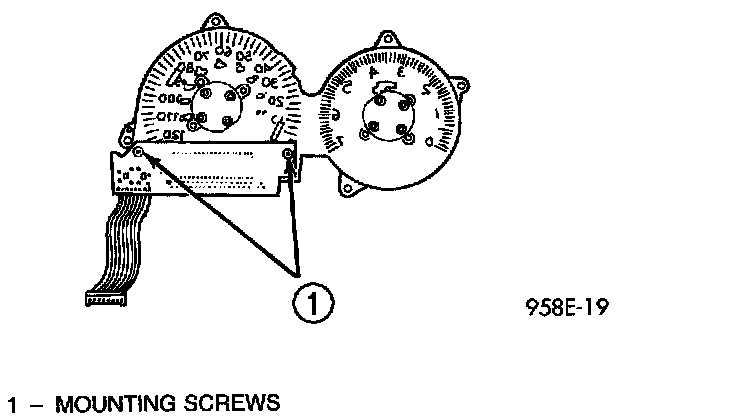

Odometer/Transmission Range Indicator:

4. Remove screws attaching from the back of speedometer and remove the odometer/transmission range indicator display.

INSTALLATION
For installation, reverse the above procedures.
