Instrument Cluster Replacement

To service any instrument cluster component, the instrument cluster must be removed from the instrument panel.

REMOVAL

Battery Negative Remote Cable:

1. Disconnect and isolate the battery negative remote cable.
2. Remove instrument cluster hood.

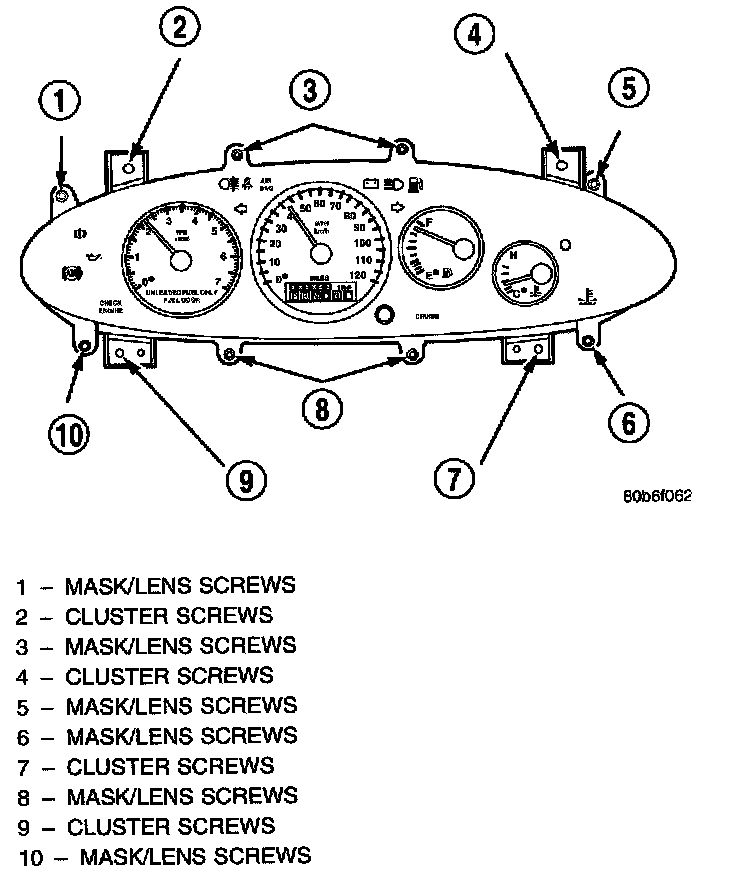

Mask/Lens Retaining Screws:

3. Remove the four cluster attaching screws.
4. Remove instrument cluster and disconnect wire connectors from instrument panel by pulling cluster rearward.

INSTALLATION
For installation, reverse the above procedures.
