Instrument Cluster Hood Replacement

REMOVAL
1. Remove instrument panel left end cap.
2. Tilt steering column down to its lowest position.

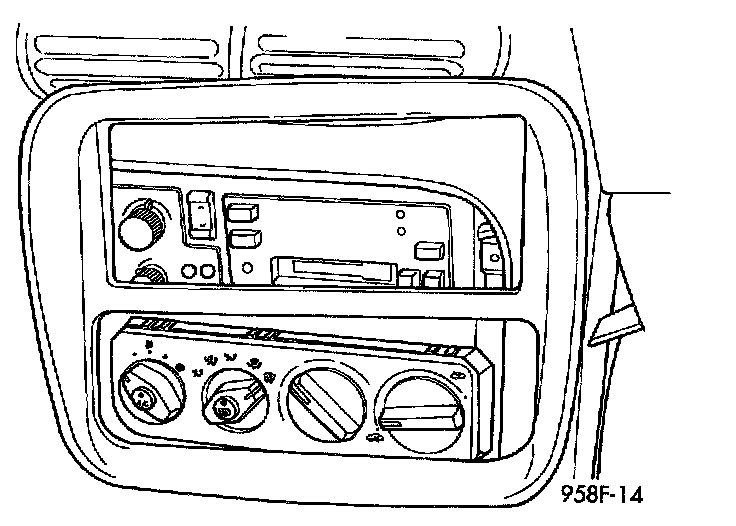

Center Bezel:

3. Remove instrument panel center bezel by disengaging the four clips
4. Remove four attaching screws under the center bezel.
5. Remove screw at left end of panel.
6. Pull hood straight back to disengage the eight clips. If equipped with a Compass/Temperature Mini Trip Computer pull rearward about 3 inches and stop. Reach through the radio opening in the cluster hood and disconnect the CMTC wire connector.

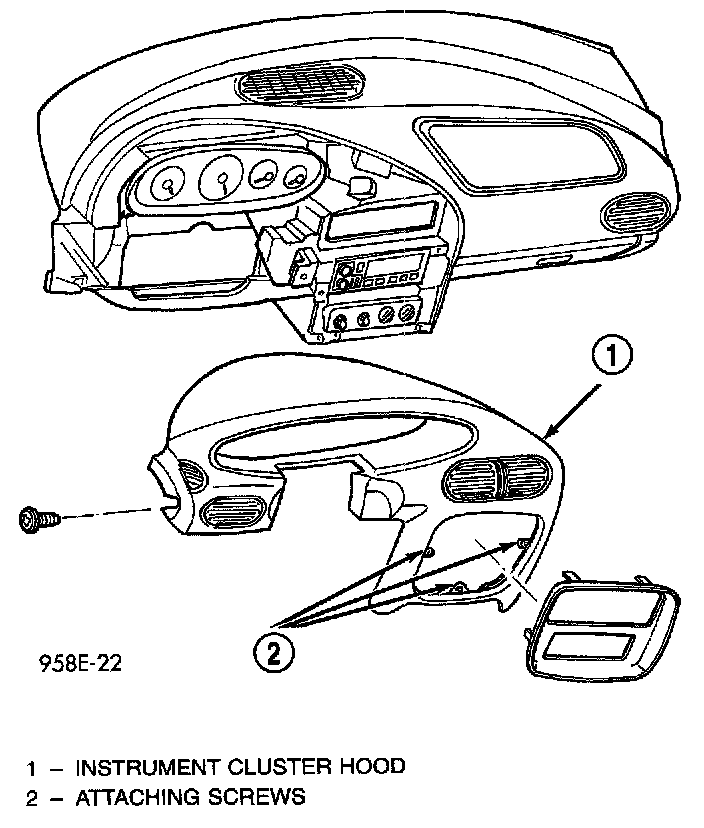

Instrument Cluster Hood:

7. Remove instrument cluster hood.

INSTALLATION
For installation, reverse the above procedures. Keep the forward edge of the hood down on the instrument panel while sliding the hood forward to engage the retaining clips.
