Liquid Line to Condenser

REMOVAL
1. Remove refrigerant from the A/C system using a refrigerant recovery machine.

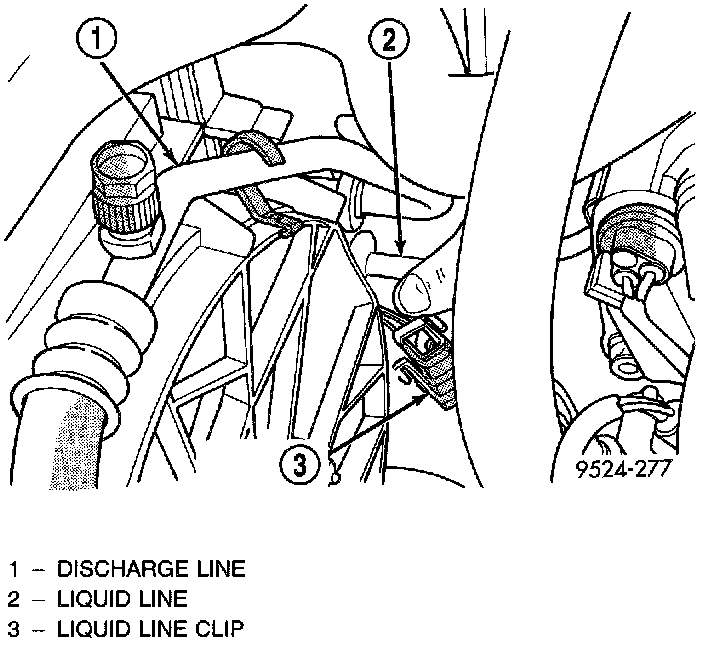

Clip Removal:

2. Remove A/C quick connect clip at condenser.

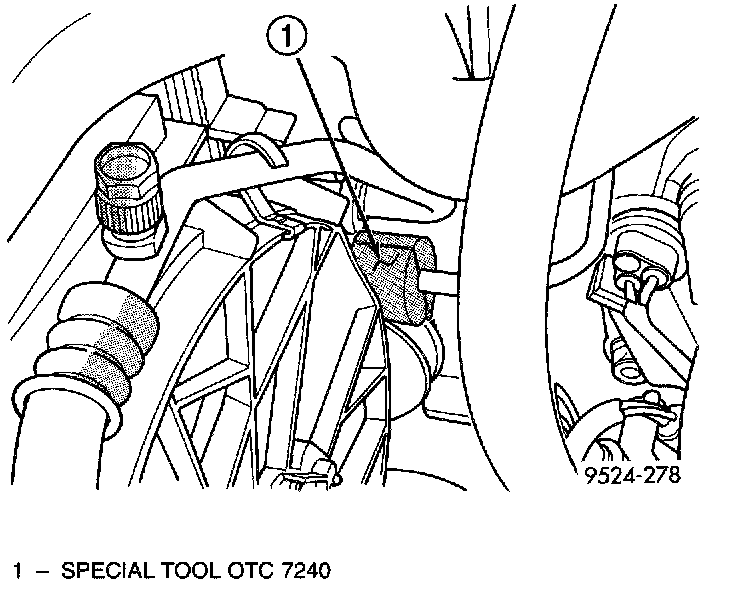

Quick Coupler Using Special Tool 7240:

Line At Condenser:

3. Disconnect quick connector at condenser. Remove liquid line from condenser. Use special tool kit 7193 to disconnect quick connector. Remove line at condenser.

CAUTION: Cap all lines that are not being replaced and cap the condenser inlet.

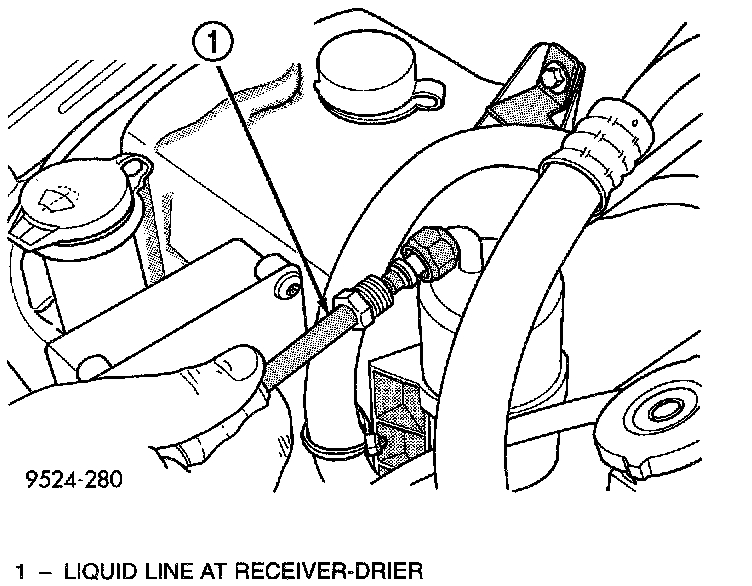

Liquid Line At Receiver/Drier:

4. Disconnect liquid line from the receiver/drier.
5. Remove the liquid line from the vehicle.

INSTALLATION
For installation, reverse the above procedures.
