Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams

Electrical Diagrams

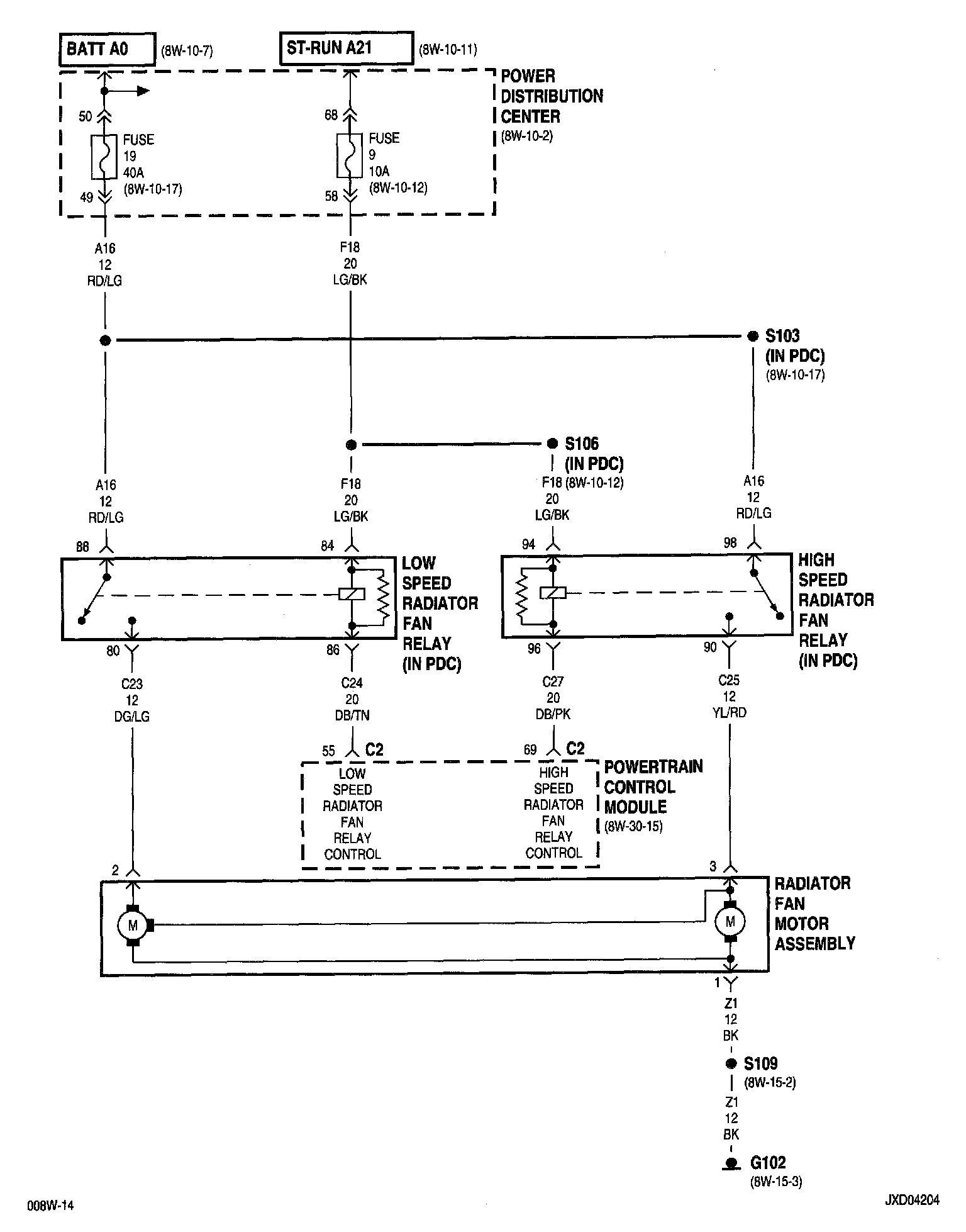

8w-42-2:

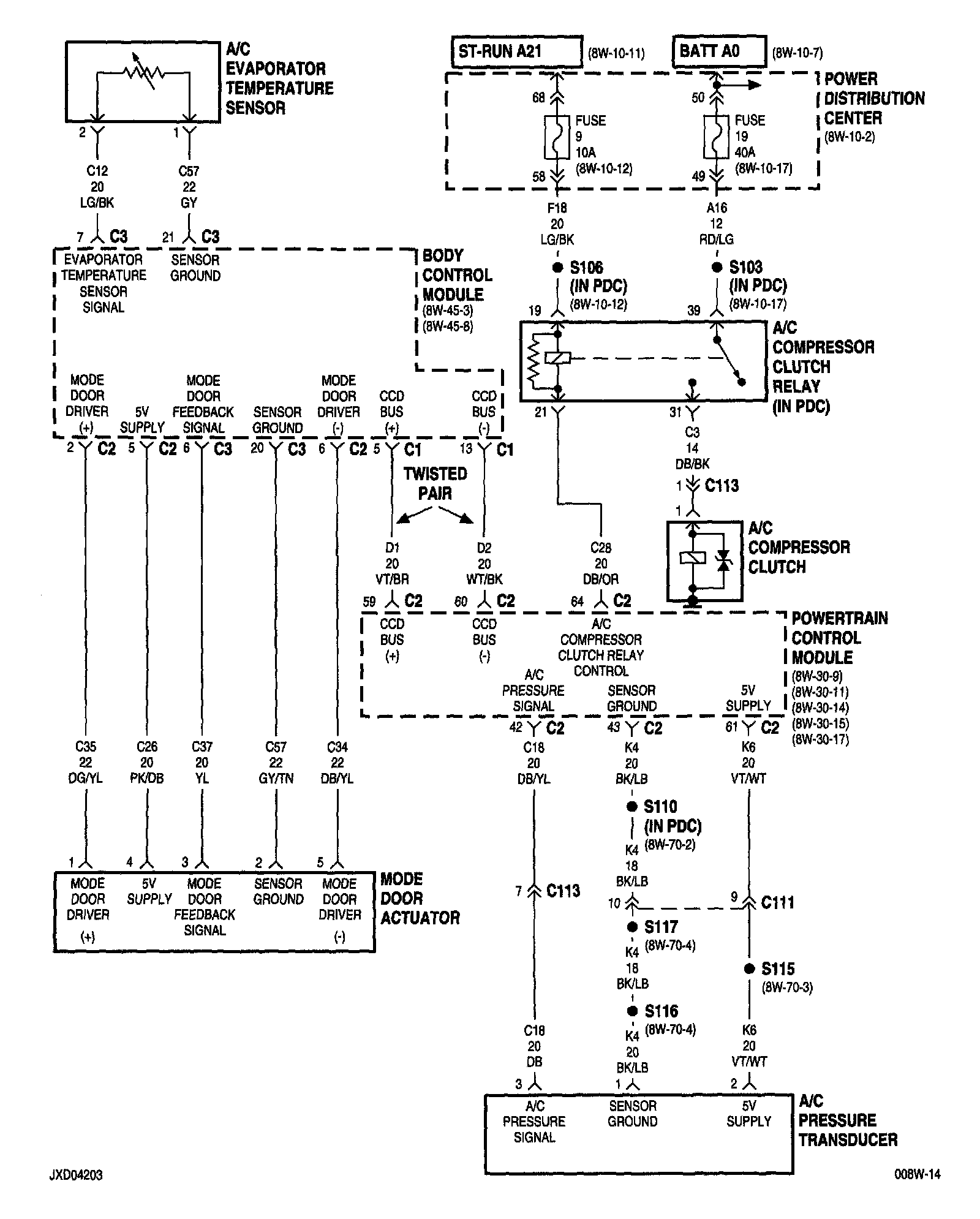

8w-42-3:




8w-42-4:




Manual A/C System:





NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
