Blower Motor: Service and Repair

The blower motor is located on the right side of the heater housing.

REMOVAL
1. Disconnect battery.
2. Remove lower right under panel silencer duct.

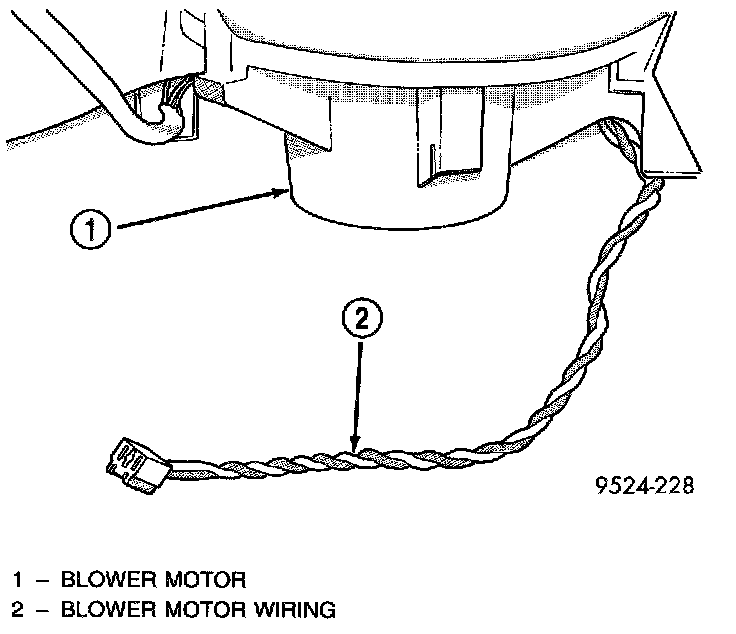

Blower Motor Wiring:

3. Remove blower motor connector from resistor block.
4. Remove blower motor case retaining screws.

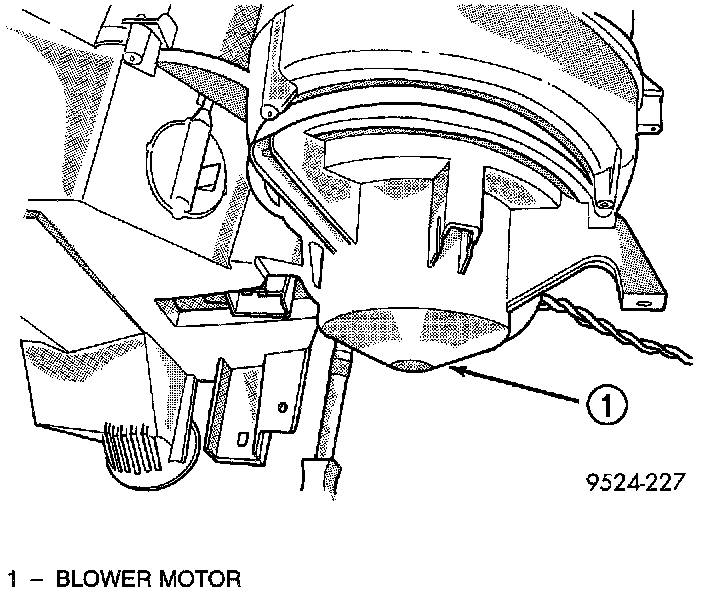

Blower Motor:

5. Lower blower motor case from housing.
6. Remove fan scroll from motor shaft.
7. Remove motor from motor case.

INSTALLATION
For installation, reverse the above procedures.
