Removal and Replacement
REMOVAL1. Perform fuel pressure release procedure. Remove fuel line to fuel rail.
2. Disconnect negative cable from battery remote jumper terminal.
3. Remove Powertrain Control Module (PCM) attaching screws and set aside.
4. Drain cooling system.
5. Remove upper radiator hose, radiator and fan module. Refer to Cooling System for procedure.
6. Remove lower radiator hose.
7. Disconnect automatic transaxle cooler lines and plug.
8. Disconnect transaxle shift linkage.
9. Disconnect throttle body linkage.
10. Disconnect engine wiring harness.
11. Disconnect heater hoses.
12. Remove refrigerant from air conditioning system using a refrigerant recovery machine.
13. Hoist vehicle and remove right inner splash shield.
13. Remove accessory drive belts.
15. Remove axle shafts.
16. Disconnect exhaust pipe from manifold.
17. Remove front and rear engine mount through bolts.
18. Lower vehicle. Remove air cleaner assembly.
19. Remove power steering pump and reservoir and set them aside.
20. Remove A/C compressor.
21. Remove ground straps to body.

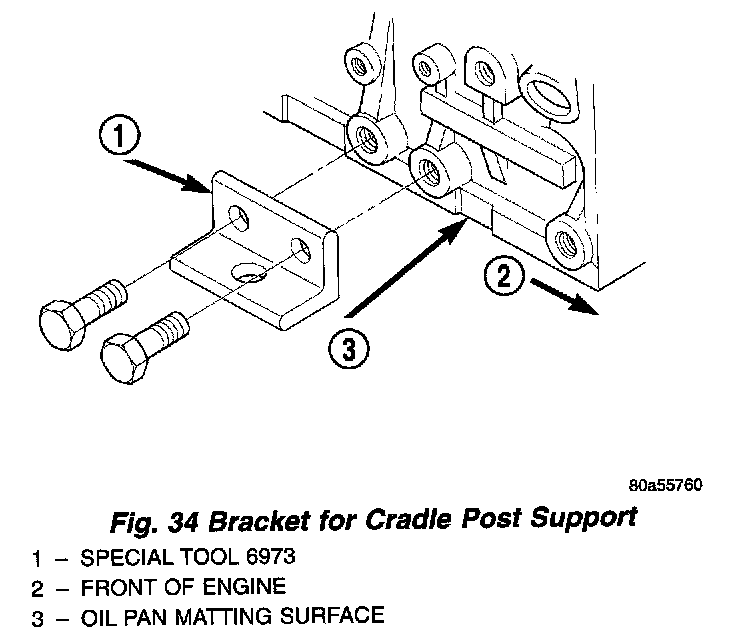

Fig. 34
22. Mount Special Tool 6973 bracket, to the right side of the cylinder block (Fig. 34). Align the front adjustable post with the hole in the bracket.

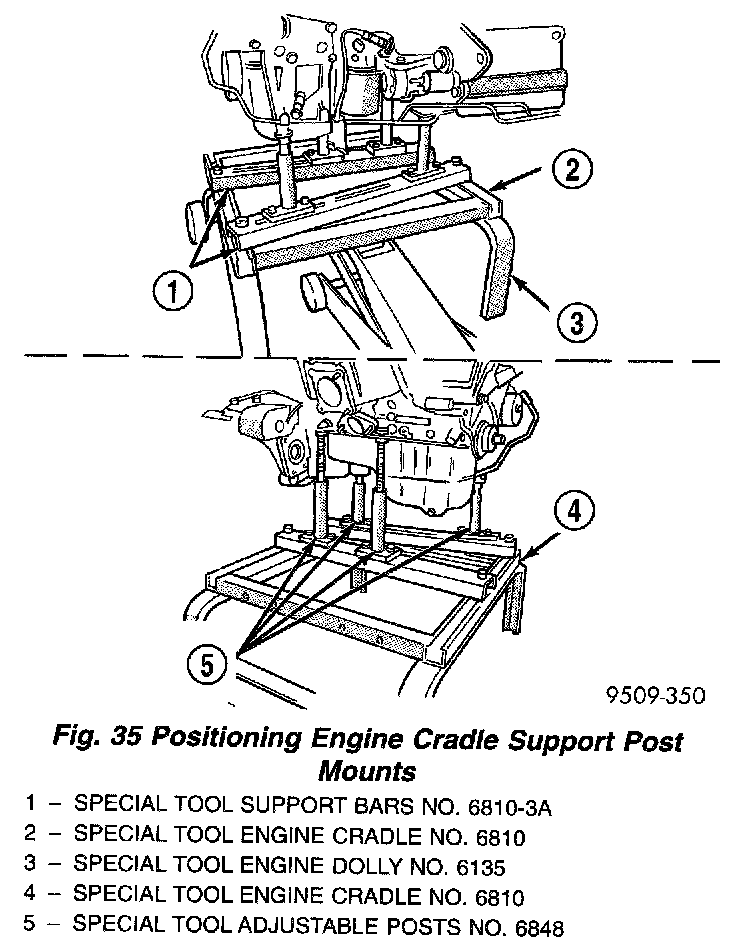

Fig. 35
23. Raise vehicle enough to allow engine dolly and cradle Special Tools 6135 and 6710 to be installed under vehicle (Fig. 35).
24. Loosen cradle engine mounts to allow movement for positioning onto engine locating holes on the engine bedplate. Lower vehicle and position cradle mounts until the engine is resting on mounts. Tighten mounts to cradle frame. This will keep mounts from moving when removing or installing engine and transaxle.
25. Lower vehicle so weight of the engine and transaxle ONLY is on the cradle.
26. Remove engine and transaxle mount bolts.
27. Raise vehicle slowly. It may be necessary to move the engine/transaxle assembly on the cradle to allow for removal around body flanges.
INSTALLATION
1. Position engine/transaxle assembly under vehicle and slowly lower the vehicle.
2. Align engine and transaxle mounts to attaching points. Install mounting bolts at the right engine and left transaxle mounts. Refer to procedures.
3. Slowly raise vehicle enough to remove the engine dolly and cradle Special Tools 6135 and 6710.
4. Remove Special Tool 6973 bracket from engine.
5. Install axle shafts.
6. Install transaxle and engine braces.
7. Connect exhaust system to manifold.
8. Install power steering pump and reservoir.
9. Install A/C compressor and hoses.
10. Install accessory drive belts.
11. Install front and rear engine mounts.
12. Install inner splash shield. Install wheels and tires.
13. Connect automatic transaxle cooler lines and shifter linkage.
14. Connect fuel line and heater hoses.
15. Install ground straps. Connect engine and throttle body connections and wiring harnesses.
16. Connect throttle body linkage.
17. Install radiator and shroud assembly. Install radiator hoses. Fill cooling system.
18. Connect battery.
19. Install Powertrain Control Module (PCM).
20. Install air cleaner and hoses.
21. Install oil filter. Fill engine crankcase with proper oil to correct level.
22. Evacuate and charge air conditioning system.
23. Start engine and run until operating temperature is reached.
24. Adjust transaxle linkage, if necessary.
